Drag Chain Cables Supplier
Robotic flexible cables are applied to mechanical parts or power drag chain system which need to move frequently at a certain speed in the fields of industrial automation,mechanical complete equipment, automatic logistics system,assembly line,sensing system,control equipment and control engineering,etc.;it is used as a control cable for measurement,control and circuit deployment.
As control cables,they are used for measurement, control and circuit deployment,and are suitable for indoor or outdoor dry or wet areas.The structural design and the use of advanced materials ensure a long service life and a high degree of stability.
BTTVZ 750V
Basic Info.
|
Voltage level： |
30V;300/500V;450/750V |
|
Implementation standard: |
Q/CQHQ 11-2024 |
|
maximum conductor temperature: |
70℃ or customized |
|
Cores: |
1-60 |

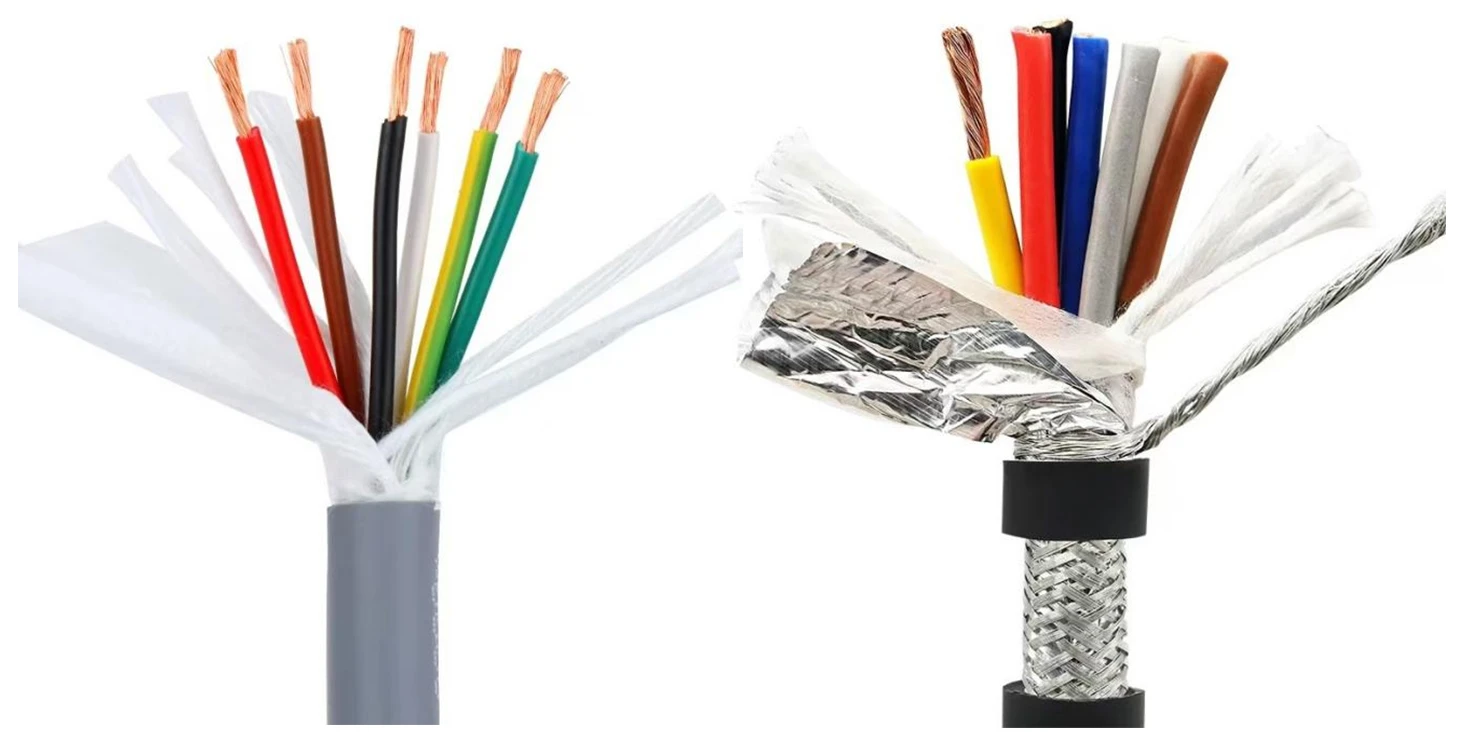

Specification
1. Conductor: the sixth soft copper conductor (tin-plated)
2. Insulation: modified polyvinyl chloride insulation
3. Filling: cotton thread filling
4. Winding: non-woven fabric or aluminum foil tape (if any)
5. Shield: tinned copper wire preparation (if any)
6. Sheath: modified polyvinyl chloride sheath
FAQ
