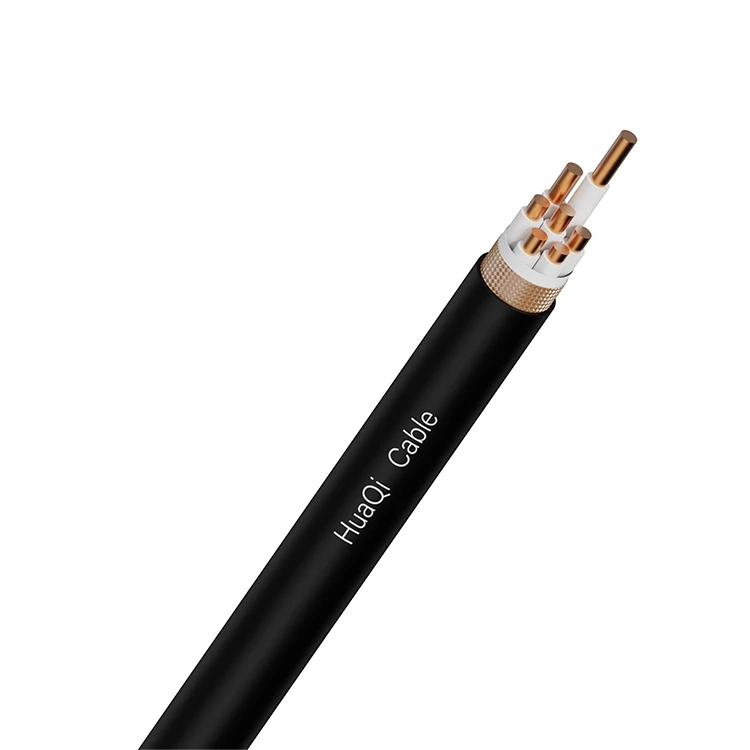

Control Cable

Control Cable Manufacturing Process

The manufacturing process for control cables is intricate and demands meticulous attention to detail to ensure the final product meets the highest standards of quality and reliability. Here’s an expanded view of this process:

Material Selection and Procurement

The process begins with the careful selection of raw materials. High-quality metals like stainless steel, copper, or aluminum are chosen for their conductive properties and durability. The insulation materials, such as PVC or Teflon, are selected based on the application’s environmental and mechanical requirements.

Wire Drawing

This involves reducing the diameter of the metal rods to the desired gauge through a series of drawing dies. The drawn wire is then annealed, a heat treatment process that enhances its ductility and electrical conductivity.

Stranding and Conductor Formation

Multiple strands of the drawn wire are twisted together to form a conductor. This process improves the flexibility and strength of the cable, which is crucial for control applications that involve movement.

Insulation and Jacketing

The conductors are then insulated to prevent electrical leakage and physical damage. Additional layers, such as shielding (for electromagnetic interference protection) and jacketing (for environmental protection), may be added depending on the cable’s application.

Cabling and Twisting

Multiple insulated conductors are then cabled or twisted together in a specific configuration. This step is crucial for multi-conductor cables, ensuring they maintain structural integrity and flexibility.

Testing and Quality Assurance

Throughout the manufacturing process, rigorous testing is conducted. This includes electrical tests for conductivity and insulation integrity, mechanical tests for tensile strength and flexibility, and environmental tests for temperature and moisture resistance.

Packaging and Dispatch

The final product is carefully coiled, packaged, and labeled, ensuring it reaches the customer in perfect condition, ready for installation.

Technical Specifications of Control Cables

The technical specifications of control cables would depend basically on the area of use and application. The common technical specifications of control cables are:



• Gauge – From sizes starting from 28 AWG to 2 AWG
• Voltage Specifications – 300 V to 600 V
• Temperature Limits – Withstanding up to 900 C

You can communicate your purposes and the specifications of the control cables. Our experts can suggest to you the best control cables. The custom-manufactured control cable would be delivered at the scheduled time.



The specifications can be chosen according to the industrial and commercial needs of the customer. Our technical team would extend optimal support in identifying the apt specs based on your inputs. Products of outstanding quality that excel in performance and functionality have been our promises since inception.
