Description

Technical Parameters

Control Cables Supplier

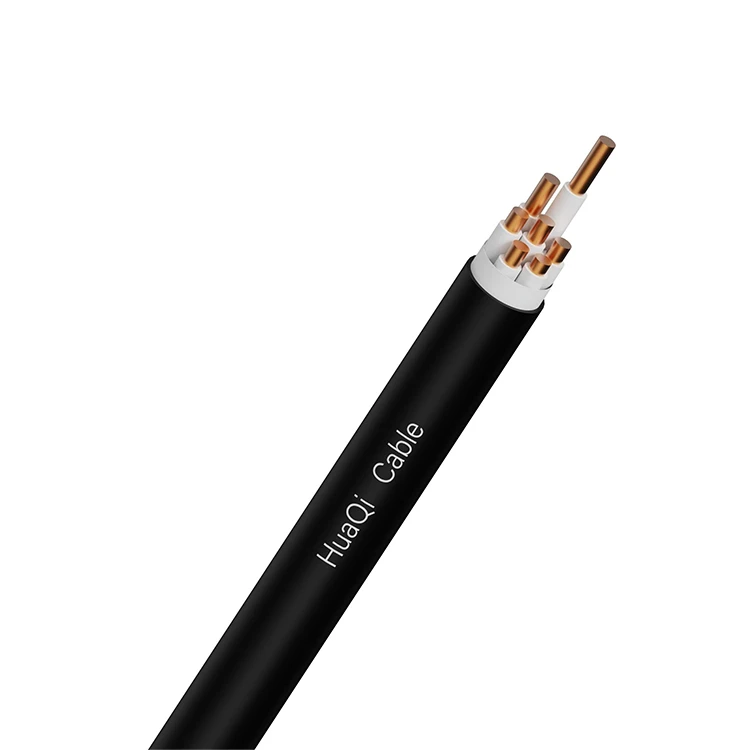

PVC Flame Retardant Control Cable has a certain degree of combustion resistance, is produced from a wide range of raw materials at favorable prices, and is easy to process and manufacture.

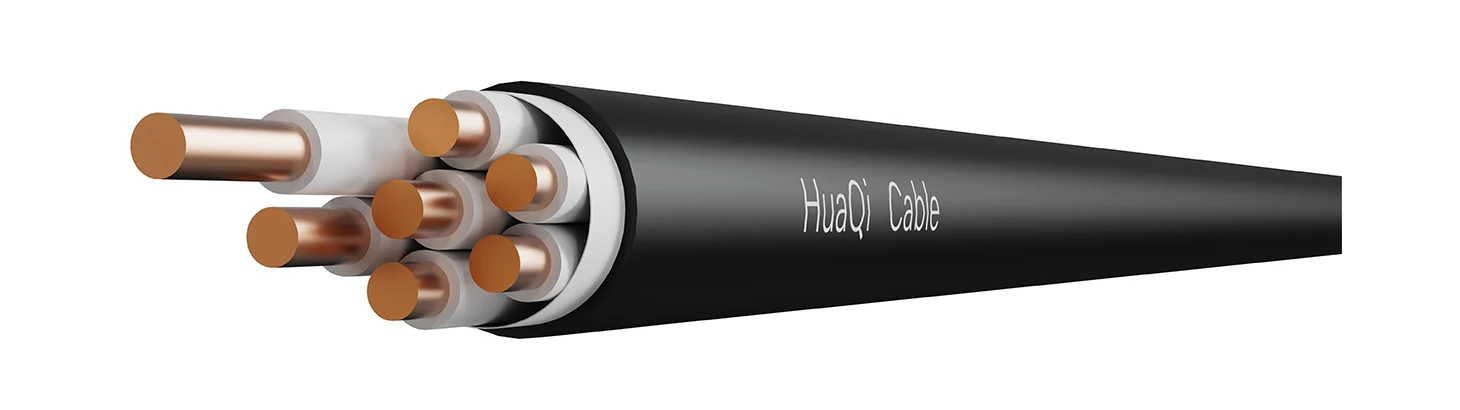

KVV 450/750V

KVV

Basic Info.

Voltage level：	450/750V
Implementation standard:	GB/T9330-2020
Maximum conductor temperature:	70℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	6D

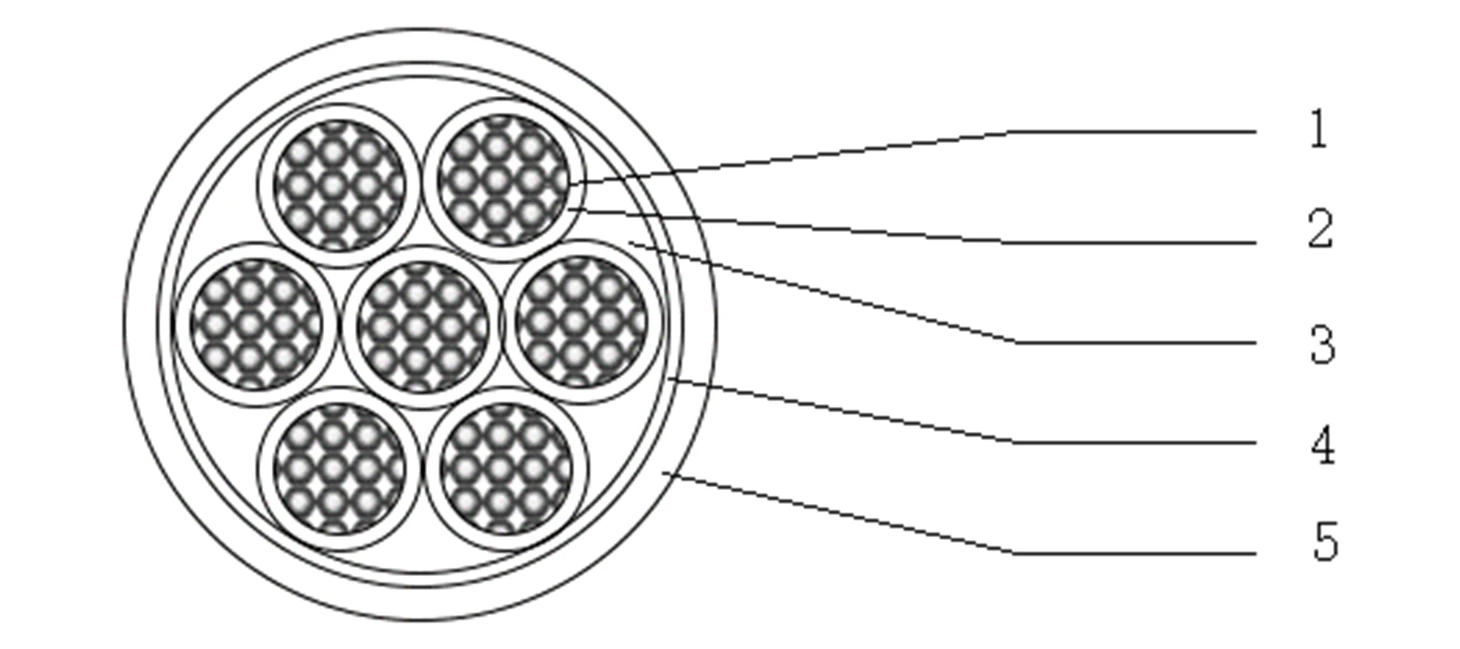

Specification

1. Conductor: Oxygen-free pure copper single or stranded conductor (Class I conductor, Class II conductor)

2. Insulation: PVC

3. Filling: polypropylene mesh tape filling

4. Winding: PP tape

5. Sheath: PVC

FAQ

Q: What is the difference between KVV, KVVP, KVVR, KVVRP?

Model	Name	Scope of use
KVV	PVC insulated PVC sheathed control cable	Fixed places such as indoors, cable trenches and pipelines.
KVVP	PVC insulated PVC sheathed braided shielded control cable	Fixed places where shielding is required such as indoors, cable trenches and pipelines.
KVVR	PVC insulated PVC sheathed control flexible cable	For indoor mobile applications
KVVRP	PVC insulated PVC sheathed braided shielded control flexible cable	For indoor movement, soft and shielded applications.

KVV, KVVP, KVVR, KVVRP several kinds of cables are mainly in the presence or absence of shielding and the difference between soft and hard, the model with a P, that is, with a shielding layer, with the R is a soft cable, so we can choose different cables according to different use of the environment.
