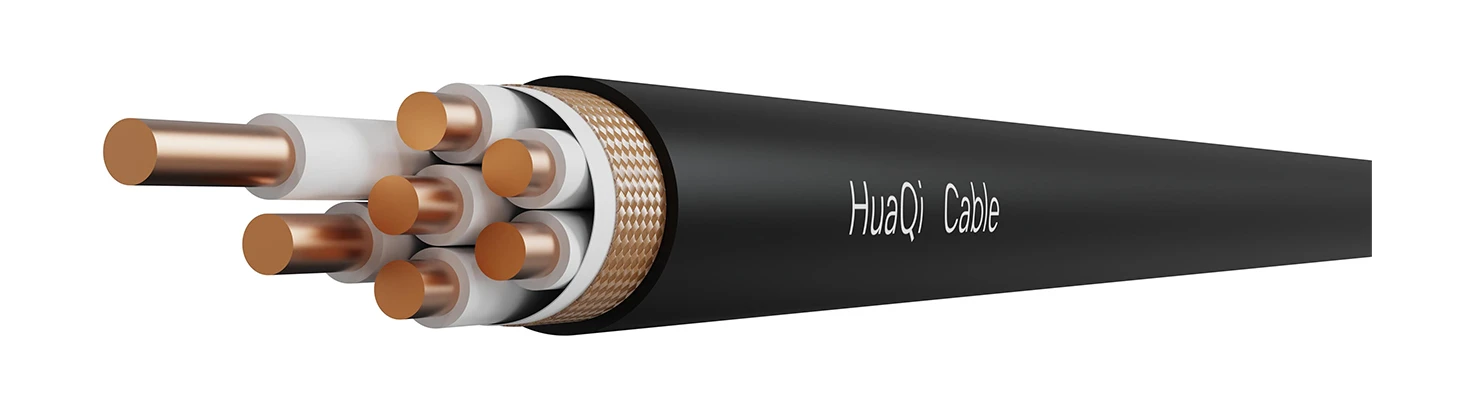

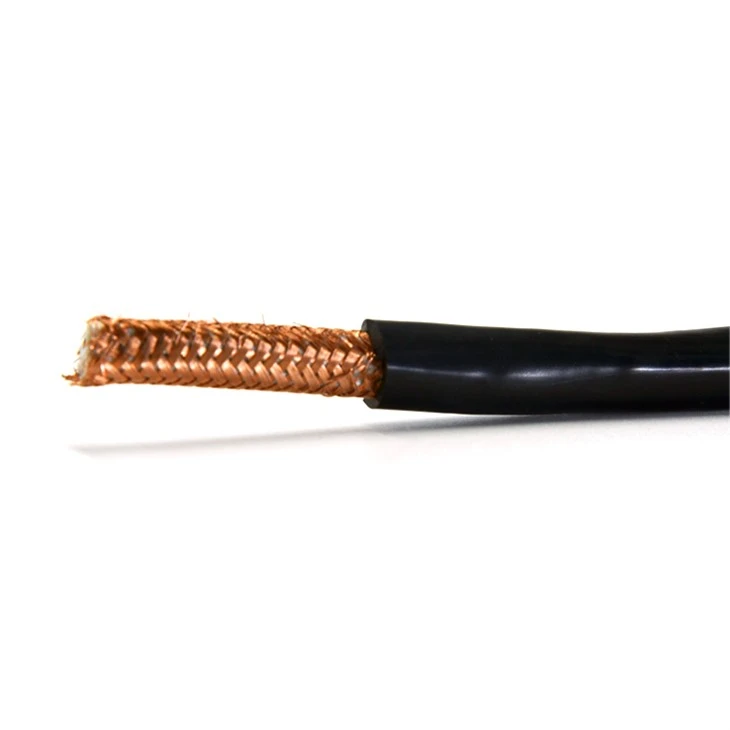

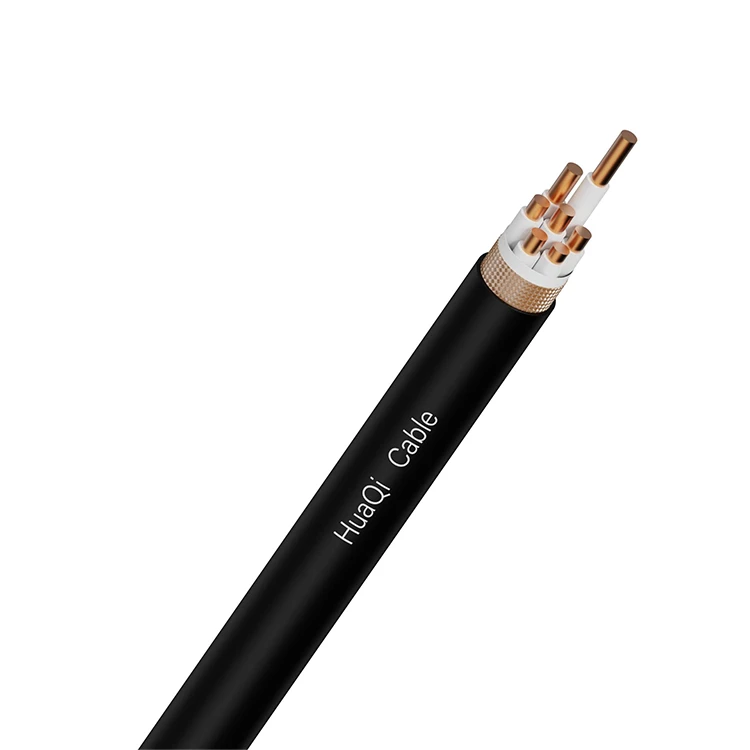

High Temperature and Flame Retardant Control Cable

High Temperature and Flame Retardant Control Cable
Product Introduction:
High Temperature And Flame Retardant Control Cable has a certain degree of combustion resistance, is produced from a wide range of raw materials at favorable prices, and is easy to process and manufacture.
Send Inquiry
Description
Technical Parameters
Control Cables Supplier



High Temperature And Flame Retardant Control Cable exhibit enhanced fire suppression characteristics while maintaining operational integrity under elevated temperatures. These specialized cables are manufactured using diverse raw material compositions that optimize production economics, offering competitive pricing advantages within industrial applications. Their engineered material configuration enables efficient fabrication processes through conventional cable manufacturing techniques, demonstrating notable flame-retardant capabilities that meet stringent safety standards.



KVVP 450/750V



KVVP



Basic Info.



Voltage level：

450/750V

Implementation standard:

GB/T9330-2020

Maximum conductor temperature:

70℃

Minimum operating temperature:

-15℃

Minimum bending radius of cable during installation

(D is the outer diameter of the cable)

6D

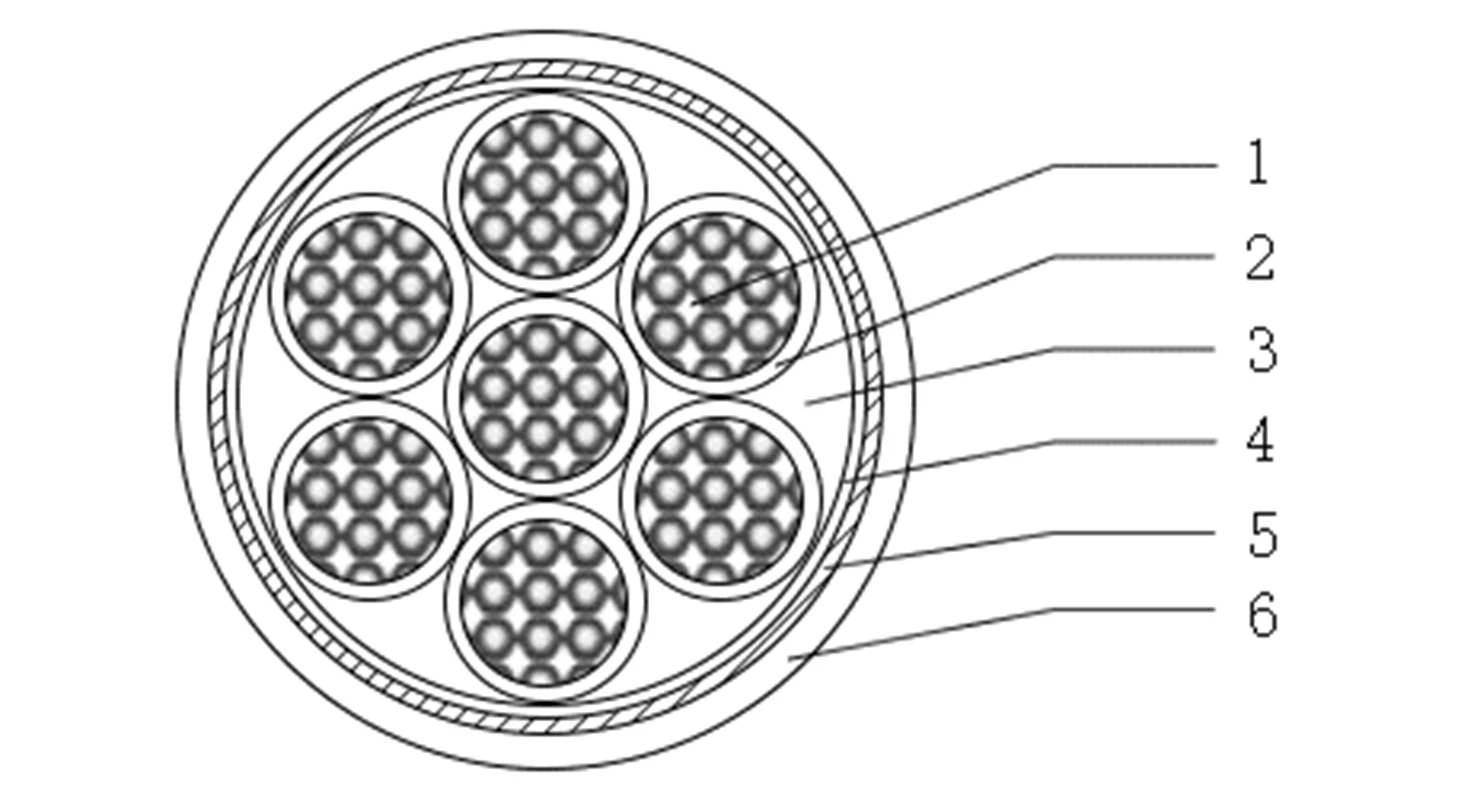

Specification



KVVP

1. Conductor: Oxygen-free pure copper single or stranded conductor (Class I conductor, Class II conductor)

2. Insulation: PVC

3. Filling: polypropylene mesh tape filling

4. Wrapping: PP tape wrapping

5. Shield: copper wire

6. Sheath: PVC



FAQ



Q: What is the difference between KVV, KVVP, KVVR, KVVRP?

A:

Model

Name

Scope of use

KVV

PVC insulated PVC sheathed control cable

Fixed places such as indoors, cable trenches and pipelines.

KVVP

PVC insulated PVC sheathed braided shielded control cable

Fixed places where shielding is required such as indoors, cable trenches and pipelines.

KVVR

PVC insulated PVC sheathed control flexible cable

For indoor mobile applications

KVVRP

PVC insulated PVC sheathed braided shielded control flexible cable

For indoor movement, soft and shielded applications.



KVV, KVVP, KVVR, KVVRP several kinds of cables are mainly in the presence or absence of shielding and the difference between soft and hard, the model with a P, that is, with a shielding layer, with the R is a soft cable, so we can choose different cables according to different use of the environment.
