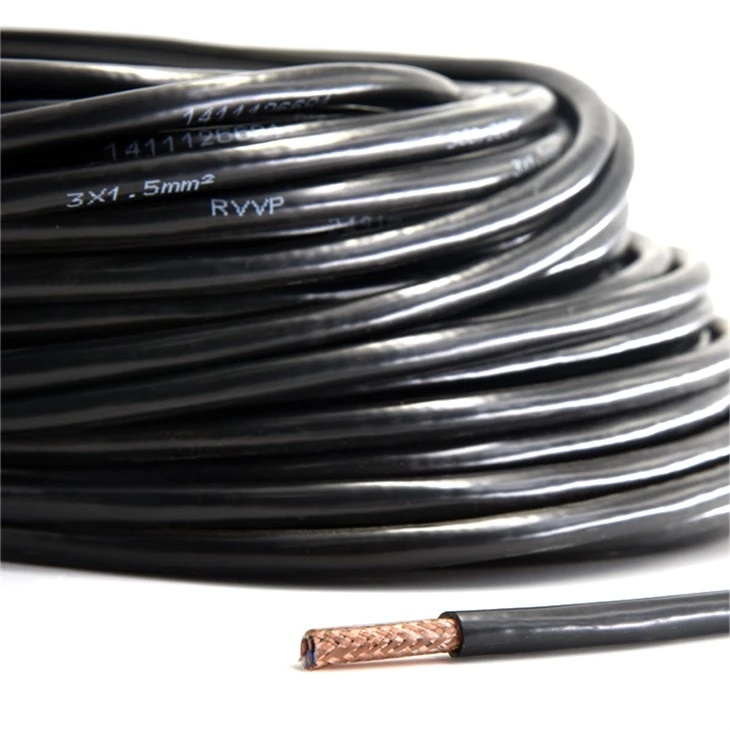

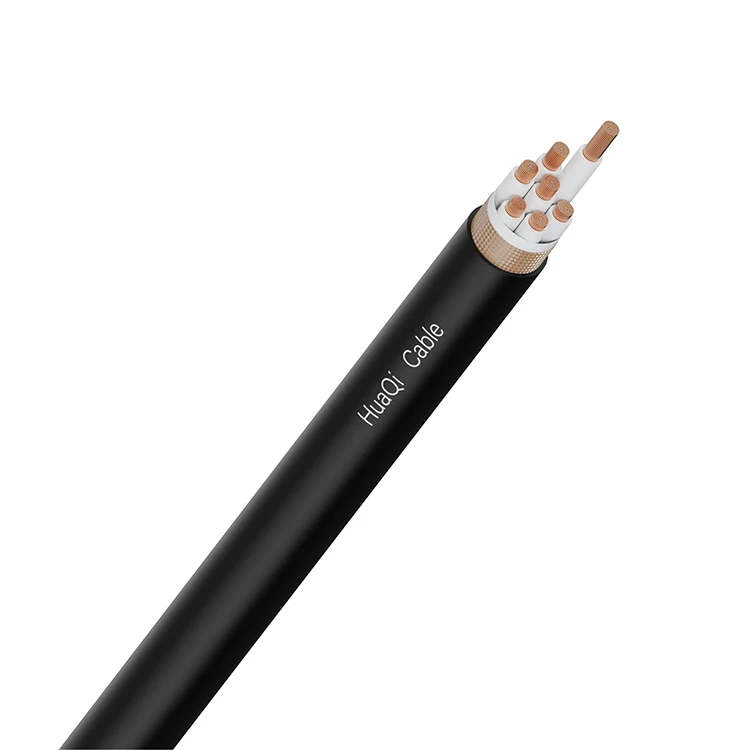

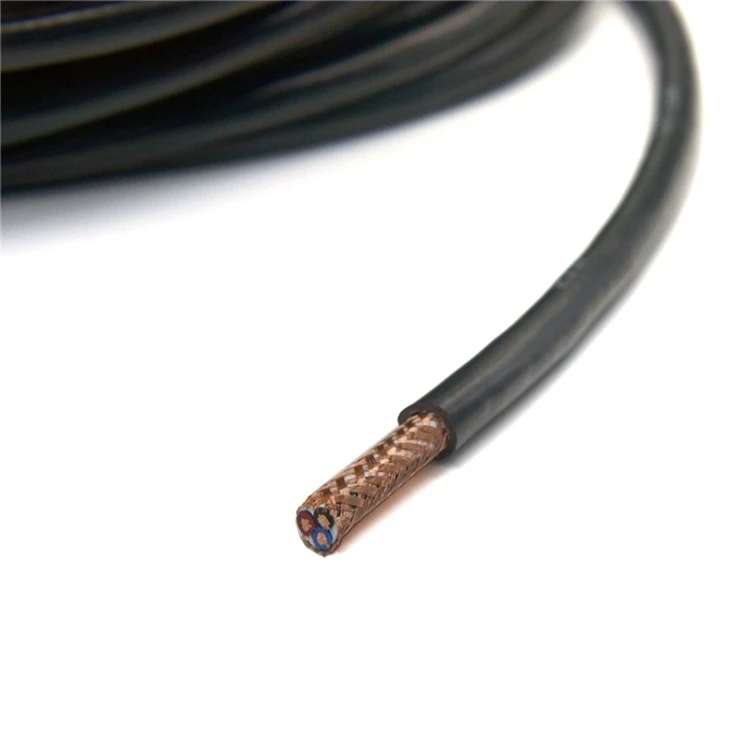

Copper Conductor PVC Insulated Control Cable demonstrates:

Dynamic flex endurance

≥20,000 bending cycles @ 6D radius (IEC 60811-1-1)

Cold bend compliance (-30°C, EN 50305)

Dielectric integrity

Insulation resistance >10¹⁴ Ω·cm (IEC 60167)

Partial discharge <5pC (IEC 60270)

Structural reliability

Abrasion resistance ≥5,000 cycles (EN 50396)

Tensile retention >80% after 10⁴ flex cycles

Manufacturing efficiency

Single-step extrusion (processing temp 120-180°C)

Recyclate ratio >85% (ISO 14021 compliant)

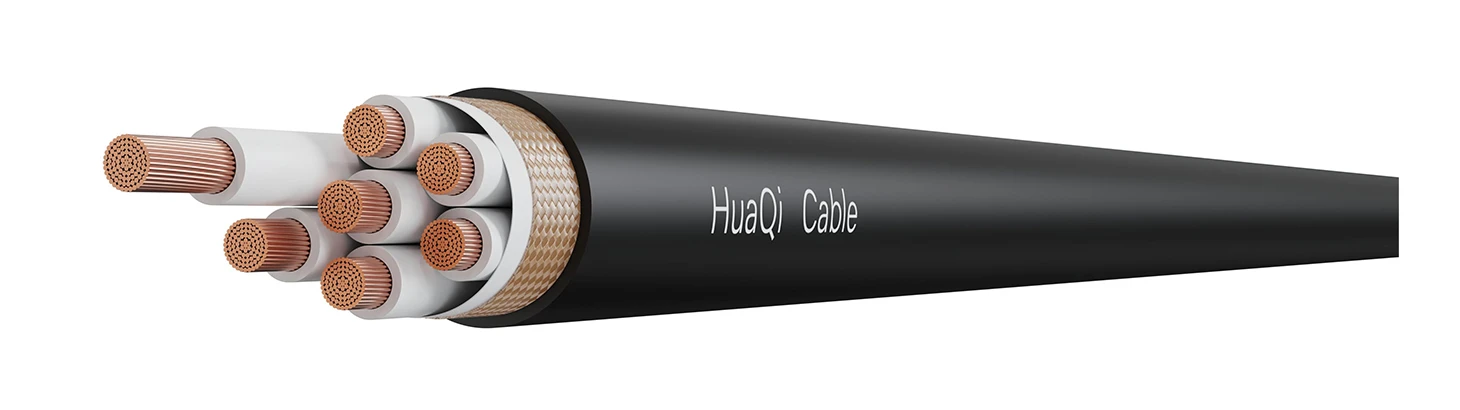

RVVP 0.3/0.3KV

RVVP

Basic Info.

Voltage level：	0.3/0.3KV
Implementation standard:	JB/T8734.5-2016
Maximum conductor temperature:	70℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	15D

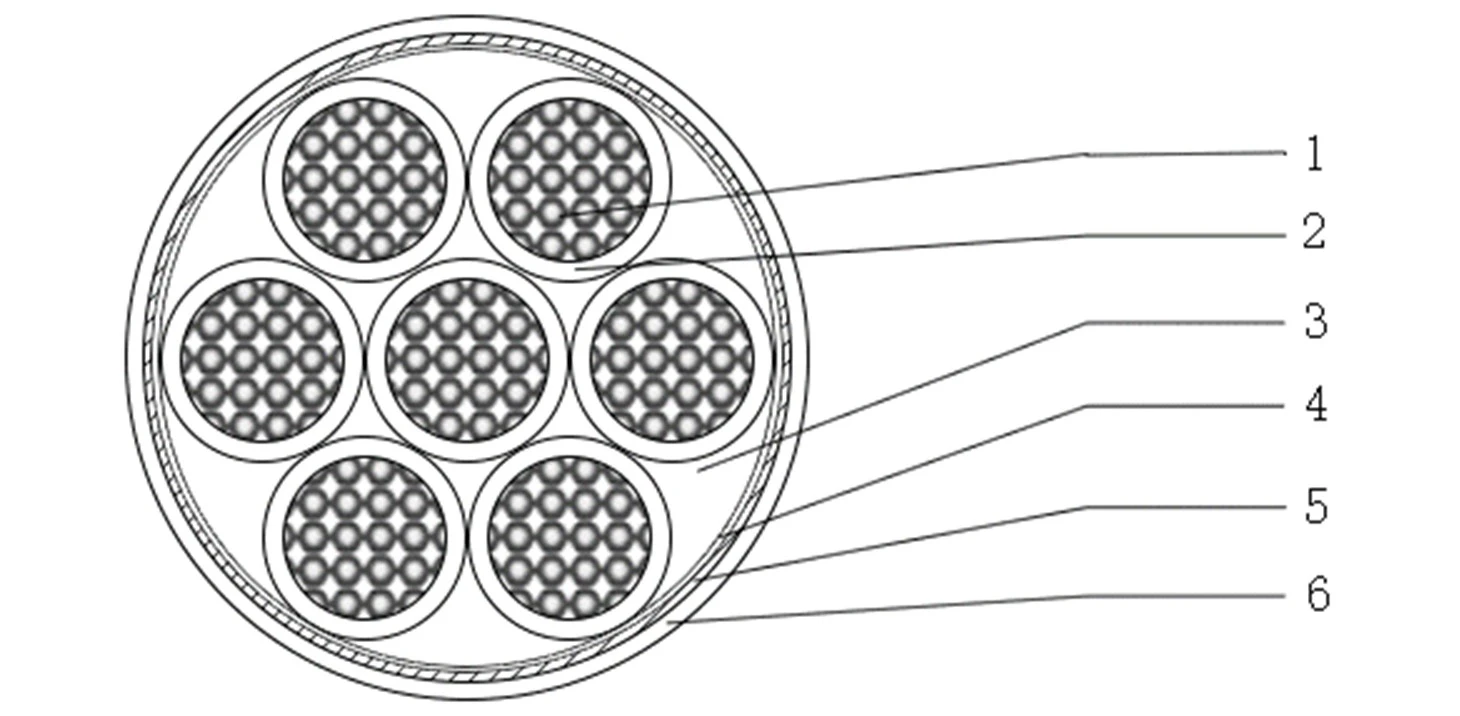

Specification

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Insulation: PVC

3. Filling: polypropylene mesh tape filling

4. Wrapping: polyester tape wrapping

5. Shield: copper wire

6. Sheath: PVC

FAQ

Q: What is the difference between KVVP and RVVP?

A: (a)Name:"P" for shielded cables, 'K' for control cables and 'R' for flexible cables.

(b)Structure:KVVP cable is composed of multiple strands of BV hard wire, hard structure, large size, commonly used in signal control, monitoring circuits and other anti-electromagnetic wave interference places.Copper Conductor PVC Insulated Control Cable is composed of multiple strands of RV soft wire stranded and in the structure of the soft, small size, commonly used in instrumentation, audio broadcasting and other electromagnetic environments, the installation of the distance between the place of the use of small.

(c)Use:KVVP cable is suitable for voltage level 450/750V and below control, monitoring circuit and protection line connection line, commonly used in anti-electromagnetic interference, need to have shielded places.

Copper Conductor PVC Insulated Control Cable is suitable for voltage level 300/300V and below electrical appliances, instrumentation and electronic equipment and other shielded lines, commonly used in harsh electromagnetic environment, installation distance is small installation places.
