China Cheap Aluminum and Aluminum Alloy Cable Suppliers Factory

Your Professional Aluminum and Aluminum Alloy Cable Supplier

Huaqi Cable was founded in 1986, registered trademark "Huaqi" brand. After years of development,Chongqing Huaqi Wire&Cable has gradually formed a modernized production system,with products covering a wide range of fields such as photovoltaic cables,medium and low-voltage cables,rubber-coated cabled,aluminium alloy cable,special cables,and cables for charging electric vehicles.

Why Choose Us

Stable Quality

Our products are manufactured or executed to very high standards, using the finest materials and manufacturing processes.

Advanced Equipment

Equipment based on the latest technological developments has higher efficiency, better performance and stronger reliability.

Quality Control

We have built a professional QC team to accurately inspect every raw material and every process of production.

After-sales Service

At the request of the demand side, we can organize and arrange online guidance on the correct installation and use of cables.

Aluminum Cable
Aluminum Cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.
read more

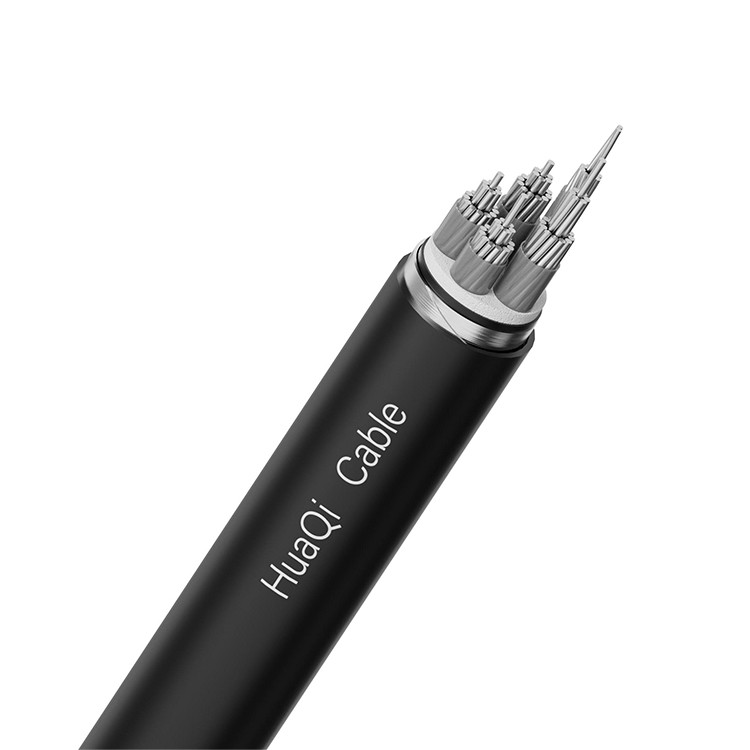

PVC Sheath Aluminum Cable
PVC Sheath Aluminum Cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.
read more
Aluminium Core Cable
Aluminium core cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.
read more
Aluminium Cable Single Core
Aluminium cable single cores have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.
read more
Aluminum Alloy Conductor Cable
Aluminum alloy conductor cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.
read more
Aluminum Alloy Cable
Aluminum Alloy Cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.
read more
Interlocking Armored Aluminum Alloy Cable
Interlocking Armored Aluminum Alloy Cable armor layer of high strength, lighter than steel belt armor,easier to strip business, convenient installation, can be installed without bridge,reduce costs.Notlimitedto360”installation,no need to
read more
PE Sheath Copper Shield Aluminum Cable
PE Sheath Copper Shield Aluminum Cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.
read more

Aluminum and Aluminum Alloy Cable

Our aluminum cables are designed for applications in a wide range of sectors, including power distribution, telecommunications and industry. Besides, We offer customized solutions to meet the technical specifications and unique requirements of each project.

Product specification

Product specifications	Grade	5XXXseries
	Status	H24
	Width(mm)	150～500
	Umber of meters a single disk（km	25～35
	Tension force（kg）	5～10
Explain	Inner diameter: 200～450mm,outer diameter: 850～1200mm. Customers according to the size of cable armor equipment,custom-made rewinding finished product size,limited number of meters on a single disk,reduce joints production does not stop,greatly improve production efficiency,customers directly on the machine to use,eliminating the need for intermediate rewinding.

Product application

Mainly used for power cable,aluminum alloy cable and flexible fireproof cable metal layer armor, directly applicable to customer equipment,reduce production process, improve production efficiency.

Conductor				Insulation			Reference
Nominal Cross Section (mm²)	Conductor Structure No./mm	Calculated Cross Section (mm²)	Approximate Diameter (mm)	Nom. Thickness (mm)	Nominal O.D. (mm)	Max. O.D. (mm)	Max. resistance at 20ºC Ω/km	Reference Weight/m
15	30/0.80	15.08	5.1	1.1	7.3	7.7	1.911	73
20	18/1.20	20.36	5.9	1.1	8.1	8.5	1.416	91
30	27/1.20	30.54	7.2	1.4	10.0	10.7	0.944	139
40	35/1.20	39.59	8.2	1.4	11.0	11.7	0.729	170
50	44/1.20	49.77	9.2	1.6	12.4	13.2	0.579	216
60	53/1.20	59.94	10.1	1.6	13.3	14.1	0.481	250
70	46/1.40	70.79	11.0	1.8	14.6	15.4	0.407	300
85	55/1.40	84.65	12.0	2.0	16.0	17.0	0.341	360
100	65/1.40	100.00	13.1	2.0	17.1	18.1	0.288	413

perfect service

Consulting Program Service
We offer free consultation and free cable engineering solutions. You can ask us any questions about the cable. The company has perfect pre-sale management and after-sale technical support. It has a team of high-quality cable technology.

Fast Transportation Service
We have a stable and cooperative transportation department to ensure efficient and fast delivery of our cables.. If you have special shipping requirements, we will customize the shipping method that suits you.

Regular After Sales Service
When our quality cable reaches the destination, we will provide you with after-sales service. We guarantee that your cable will last a long time.

About Delivery

DHL/TNT/EMS/Aramex/ETC/FedEx and more.
For air shipment, please choose your favorite shipping method according to your requirement.
The shipping discount is different in different seasons and depends on different weight, we will choose the cheapest and safest way according to your quantities.
Normally, it will take around 7~15 days from China to the destination country. Please note that some remote places will need more days.

Certificate

FAQ

Q: What are your terms of payment?

A: We accept TT, L/C and west union or you can pay through Alibaba. 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.

Q: Do you have after-sales service?

A: Our quality and service is our life, so even after your buying, we still offer free after sale service.

Q: Custom made Products

A: If you have your own design , we can produce according to your specification and drawing.

Q: Reasonable price

A: Fter clients receive the quotation , we will show you rationality of the price.

Q: Design

A: Customers’ design is acceptable.

Q: What's the terms of delivery?

A: EXW, FOB, CFR, CIF.

Q: What's the terms of packing?

A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.

Q: What's your delivery time?

A: For stocks, we could transport the goods to loading port within 7 work days after we received the deposit.For productionperiod,it usually takes about 15 days to 30 days after we received the deposit.

Q: Could you produce according to the samples?

A: Yes, we can customer-made by your samples or technique drawings, we can build the mold and fixtures.

Q: Could youprovide the compliment samples?

A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.

Q: How could you guarantee your products quality?

A: Each piece of products is manufactured by certified workshops, inspected by us piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.

As one of the leading aluminum and aluminum alloy cable suppliers in China, we warmly welcome you to buy bulk cheap aluminum and aluminum alloy cable in stock here from our factory. All cables are with high quality and competitive price. Contact us for more details.
