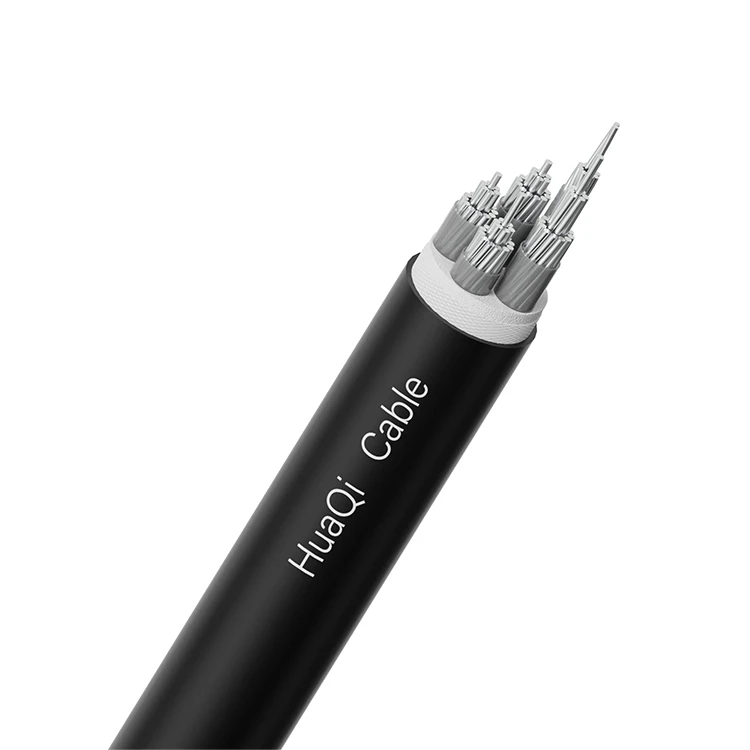

Aluminium Cables Supplier

Aluminum Cables demonstrate strong thermal and mechanical performance alongside efficient electrical conductivity. They also offer significant resistance to chemical degradation. Furthermore, their uncomplicated design results in a lightweight product, enabling flexible installation even across steep inclines.

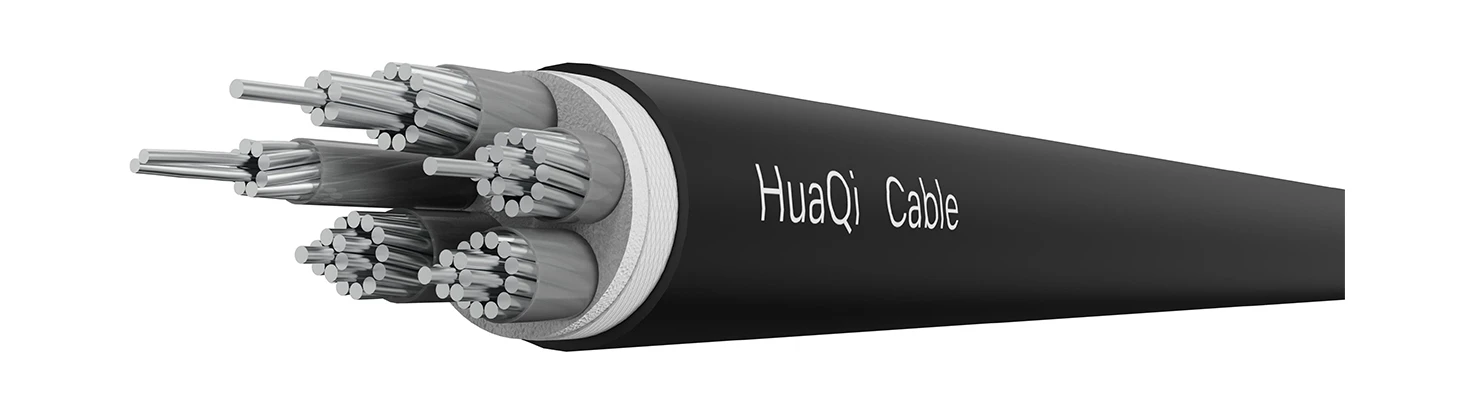

YJLV 0.6/1KV

YJLV

Basic Info.

Voltage level：	0.6/1 KV
Implementation standard:	GB/T12706.1-2020
Maximum conductor temperature:	90℃
Maximum short-circuit temperature:	250℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	Single core	Multi-core
	Unarmored	Unarmored
	20D	15D

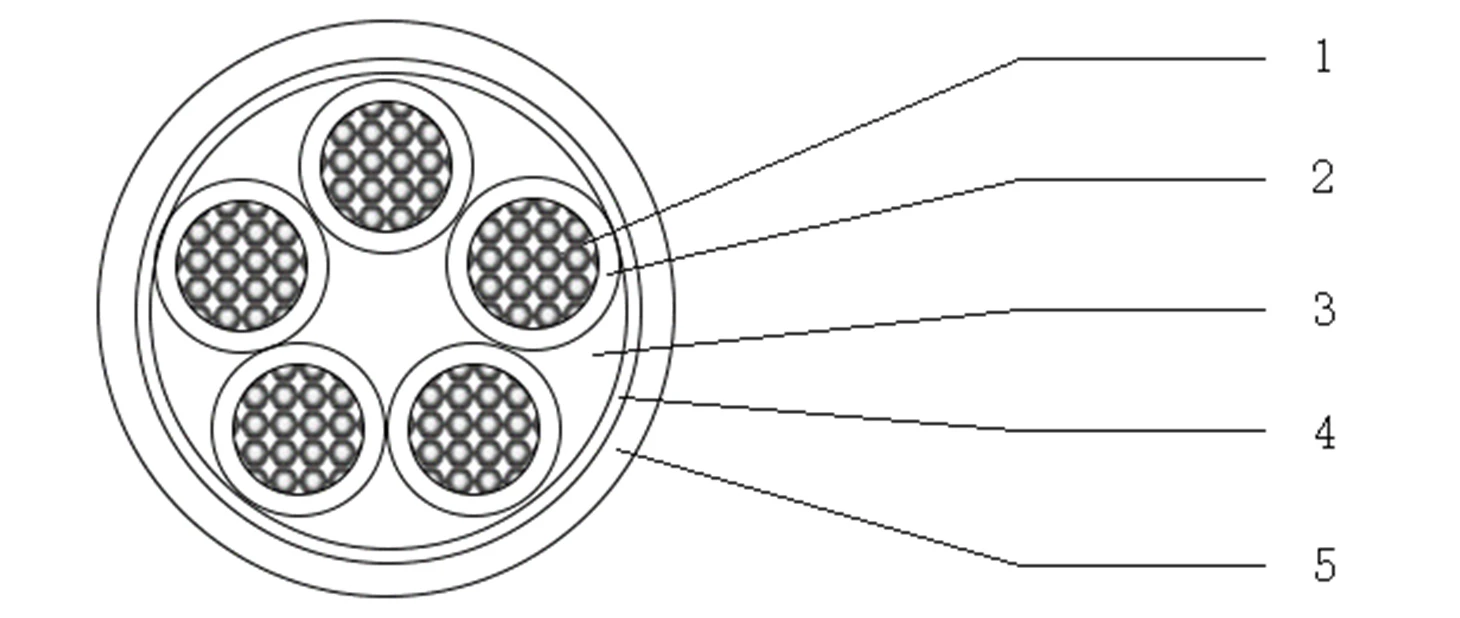

Specification

1. Conductor: Aluminum (Class I conductor, Class II conductor)

2. Insulation: XLPE

Color: 1 core: natural color;

2 core: red, blue;

3 core: yellow, green, red

4 core: yellow, green, red, blue (zero);

5 core: yellow, green, red, blue (zero) black (zero), 4 +1 black is zero line

3. Filling: polypropylene mesh tape filling

4. Wrap: non-woven fabric

5. Sheath: PVC Color: Black

FAQ

Q: What does YJLV mean?

YJ	The insulation material is cross-linked polyethylene.
L	Core material is aluminum
V	PVC sheath

Q: What is the application precautions of Aluminum Cable?

1. High connection process requirements
Special terminals and crimping technology are required to prevent contact oxidation (application of anti-oxidation paste is recommended).
2. Cross-sectional area selection
For the same current, the cross-sectional area must be increased by 1.6-1.8 times compared to copper cables.
3. Creep resistance
Under long-term load, AA-8000 series aluminum alloy cables that have undergone annealing treatment must be selected.

Translated with DeepL.com (free version)
