Aluminium Cables Supplier

Aluminium core cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.

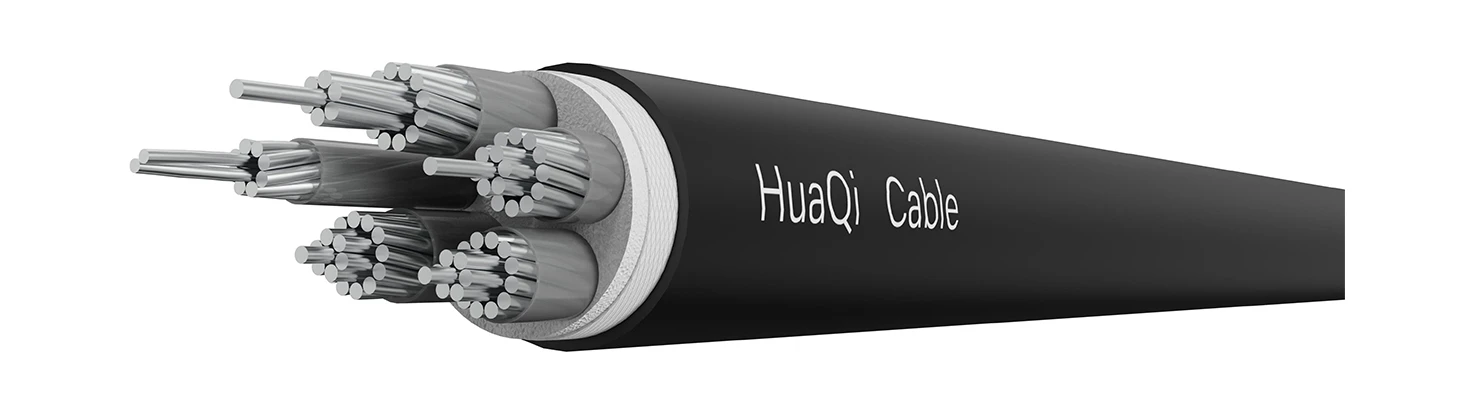

YJLV 0.6/1KV

YJLV

Basic Info.

Voltage level：	0.6/1 KV
Implementation standard:	GB/T12706.1-2020
Maximum conductor temperature:	90℃
Maximum short-circuit temperature:	250℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	Single core	Multi-core
	Unarmored	Unarmored
	20D	15D

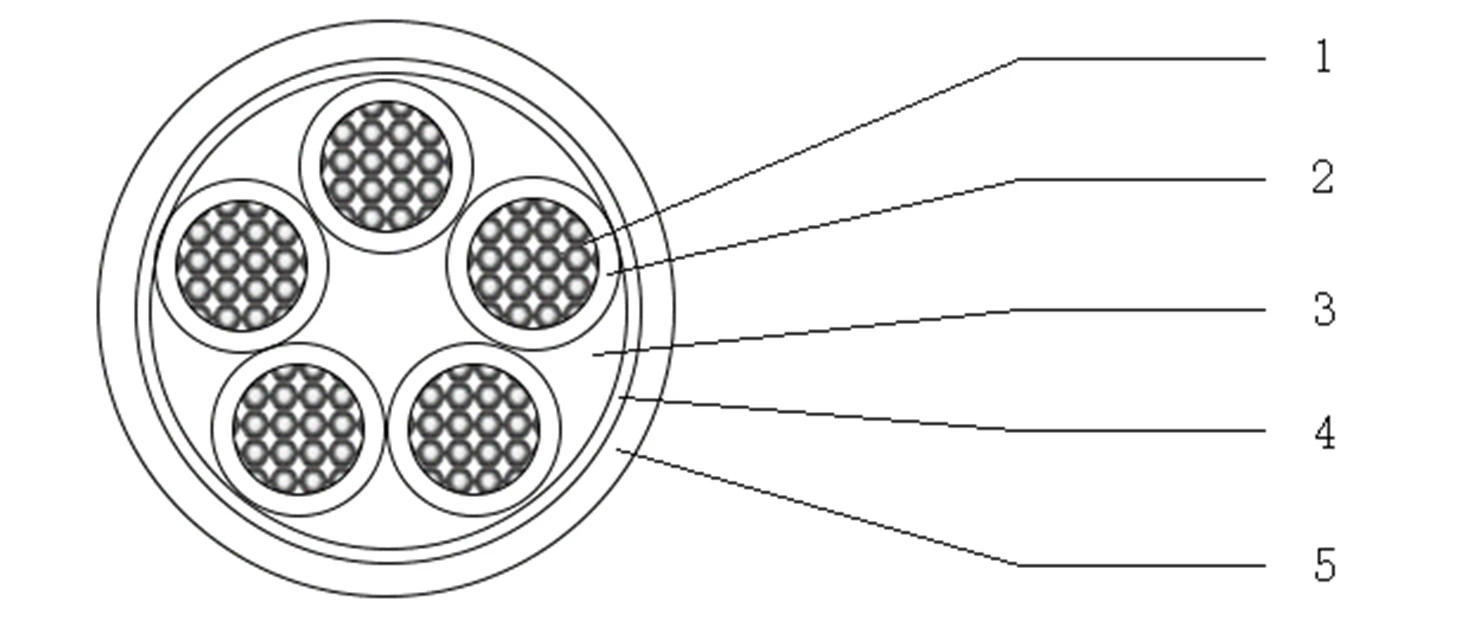

Specification

1. Conductor: Aluminum (Class I conductor, Class II conductor)

2. Insulation: XLPE

Color: 1 core: natural color;

2 core: red, blue;

3 core: yellow, green, red

4 core: yellow, green, red, blue (zero);

5 core: yellow, green, red, blue (zero) black (zero), 4 +1 black is zero line

3. Filling: polypropylene mesh tape filling

4. Wrap: non-woven fabric

5. Sheath: PVC Color: Black

FAQ

Q: What do I need to pay attention to when connecting Aluminium Core Cable?

Antioxidant treatment: Apply antioxidant paste (e.g. Vaseline or special conductive paste).
Special terminals: Use tin-plated copper-aluminum transition terminals to avoid direct connection to copper equipment.
Periodic inspection: Tighten bolts to prevent loosening due to thermal expansion and contraction.

Q: Why choose Aluminium Core Cable instead of copper cable?

A: Main advantages:

Lightweight: Aluminum is only 30% as dense as copper, making it suitable for long distance overhead laying.
Low cost: the price of aluminum is much lower than that of copper, which can save material costs.
Corrosion resistance: Aluminum is easy to form an oxide film in the air, and is more resistant to atmospheric corrosion.
