Aluminium Cables Supplier

Aluminum (especially modern aluminum alloys) cables are an economical and efficient power transmission solution, particularly in large-scale, fixed installation applications where weight reduction and cost are key factors.

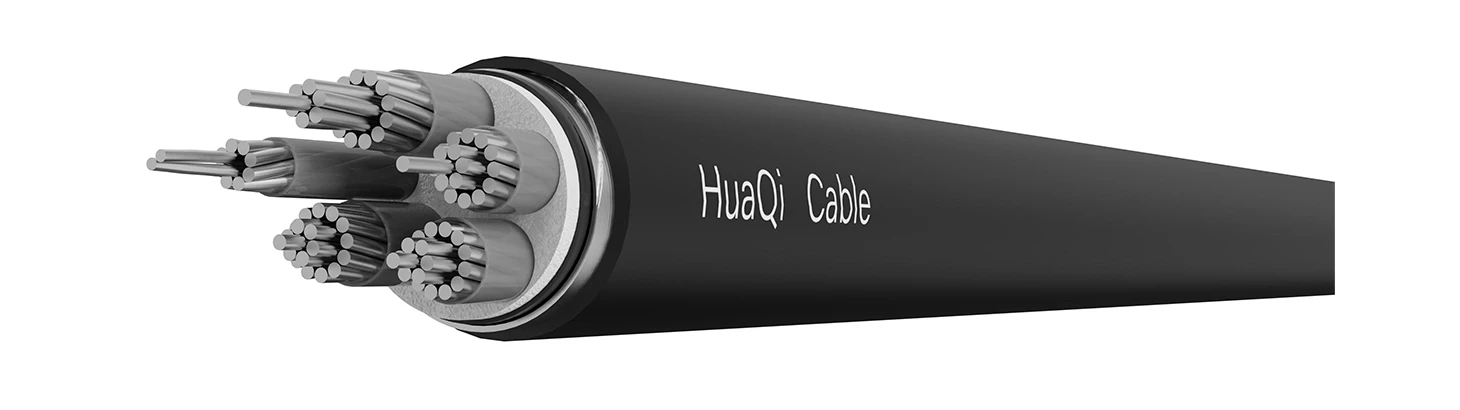

YJLV22 0.6/1KV

YJLV22

Basic Info.

Voltage level：	0.6/1 KV
Implementation standard:	GB/T12706.1-2020
Maximum conductor temperature:	90℃
Maximum short-circuit temperature:	250℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	Single core	Multi-core
	armored	armored
	15D	12D

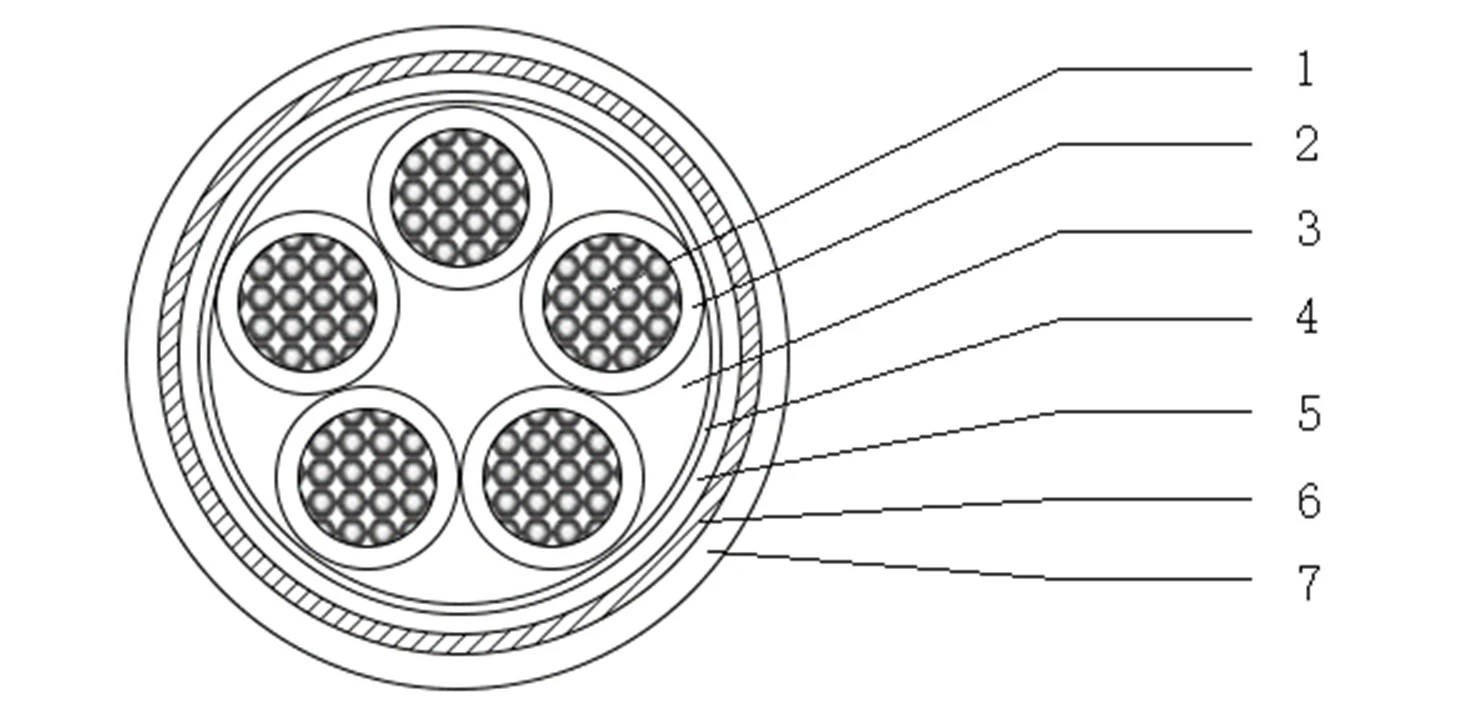

Specification

1. Conductor: Aluminum (Class I conductor, Class II conductor)

2. Insulation: XLPE

Color: 1 core: natural color;

2 core: red, blue;

3 core: yellow, green, red

4 core: yellow, green, red, blue (zero);

5 core: yellow, green, red, blue (zero) black (zero), 4 +1 black is zero line

3. Filling: polypropylene mesh tape filling

4. Wrap: PVC

5. Inner sheath: PVC

6. Armor: galvanized steel tape

7. Sheath: PVC Color: Black

FAQ

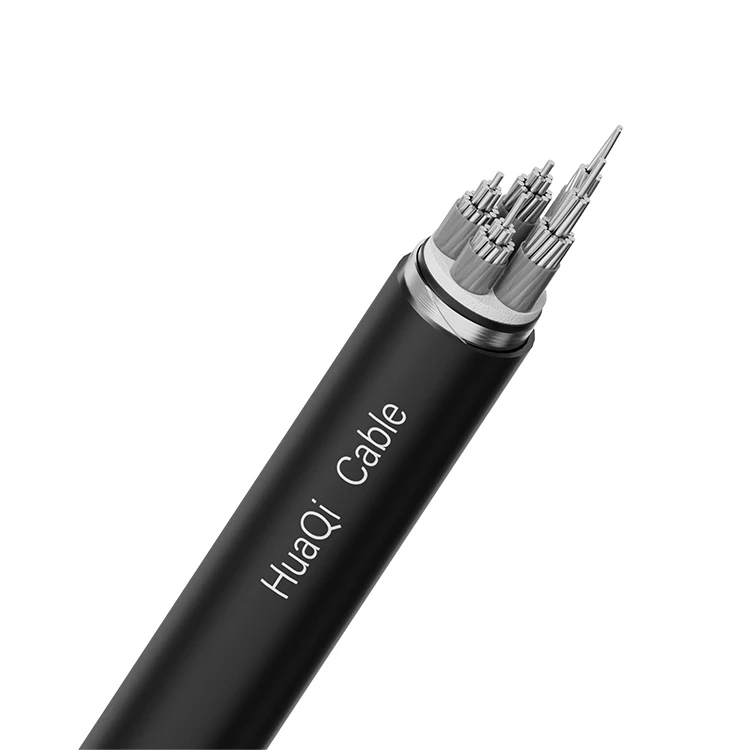

Q: What is the essential features of Aluminium Cable Single Core?

1.The density of aluminum is approximately one-third that of copper (2.7 g/cm³ vs. 8.9 g/cm³).

2.Aluminum is much more abundant in the Earth's crust than copper, and its raw material prices are typically much lower than those of copper (although prices fluctuate, aluminum prices are generally significantly lower than copper prices)

3.Although aluminum's volume electrical conductivity is approximately 61% that of copper (i.e., 61% of the International Annealed Copper Standard, IACS), it remains one of the most conductive commonly used metals after silver and copper

4.Aluminum is the most abundant metallic element in the Earth's crust, and its mining and smelting technologies are well-established

Translated with DeepL.com (free version)

Q: What does YJLV22 mean?

YJ	The insulation material is cross-linked polyethylene.
L	Core material is aluminum
V	PVC sheath
2	The first 2 indicates steel tape armor
2	The second 2 indicates a polyvinyl chloride liner
