Aluminium Alloy Cables Supplier

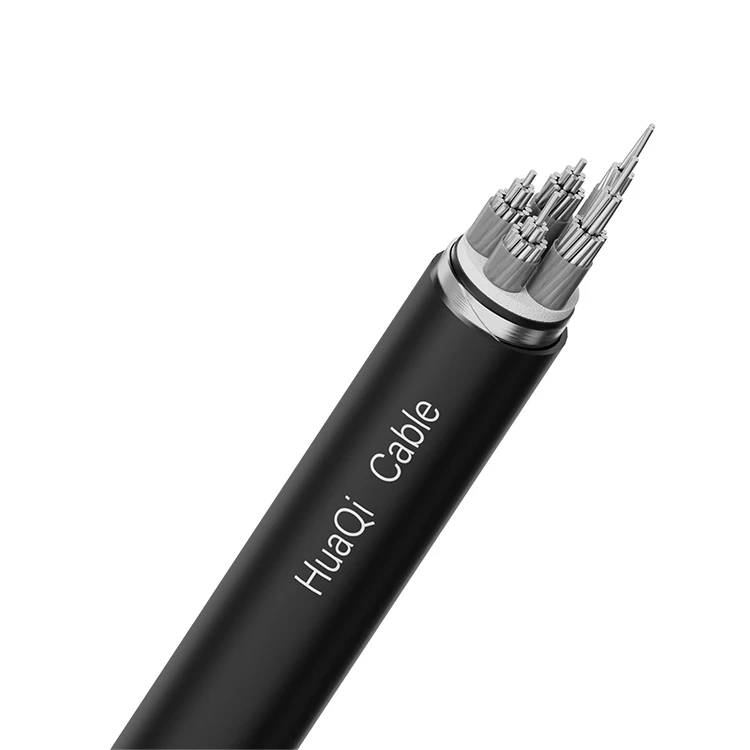

PE Sheath Copper Shield Aluminum Cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.

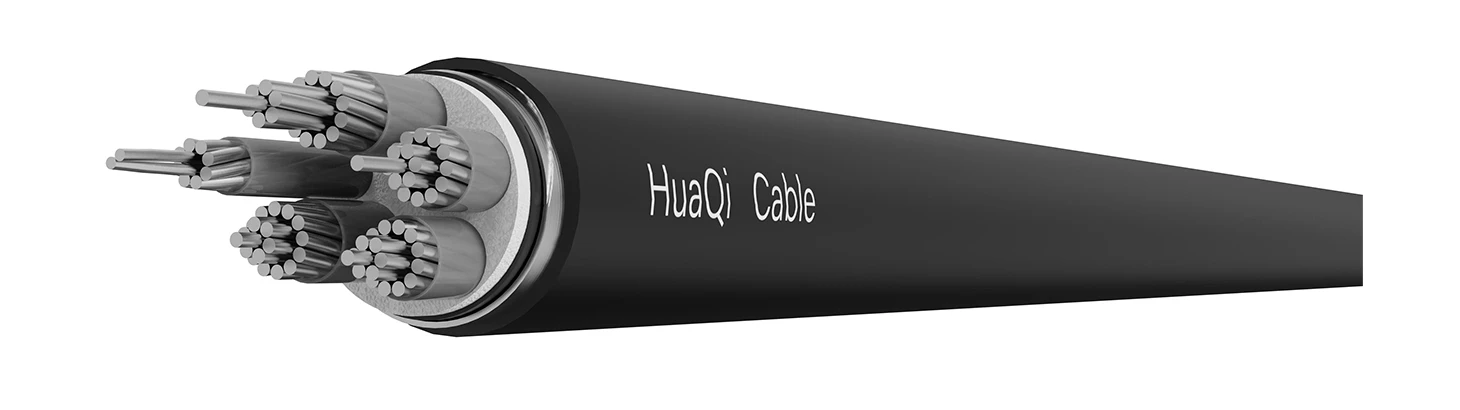

YJLHY23 0.6/1KV
Basic Info.
|
Voltage level： |
0.6/1 KV |
|
|
Implementation standard: |
GB/T12706.1-2020 |
|
|
Maximum conductor temperature: |
90℃ |
|
|
Maximum short-circuit temperature: |
250℃ |
|
|
Minimum operating temperature: |
-15℃ |
|
|
Minimum bending radius of cable during installation (D is the outer diameter of the cable) |
Single core |
Multi-core |
|
armored |
armored |
|
|
15D |
12D |
|

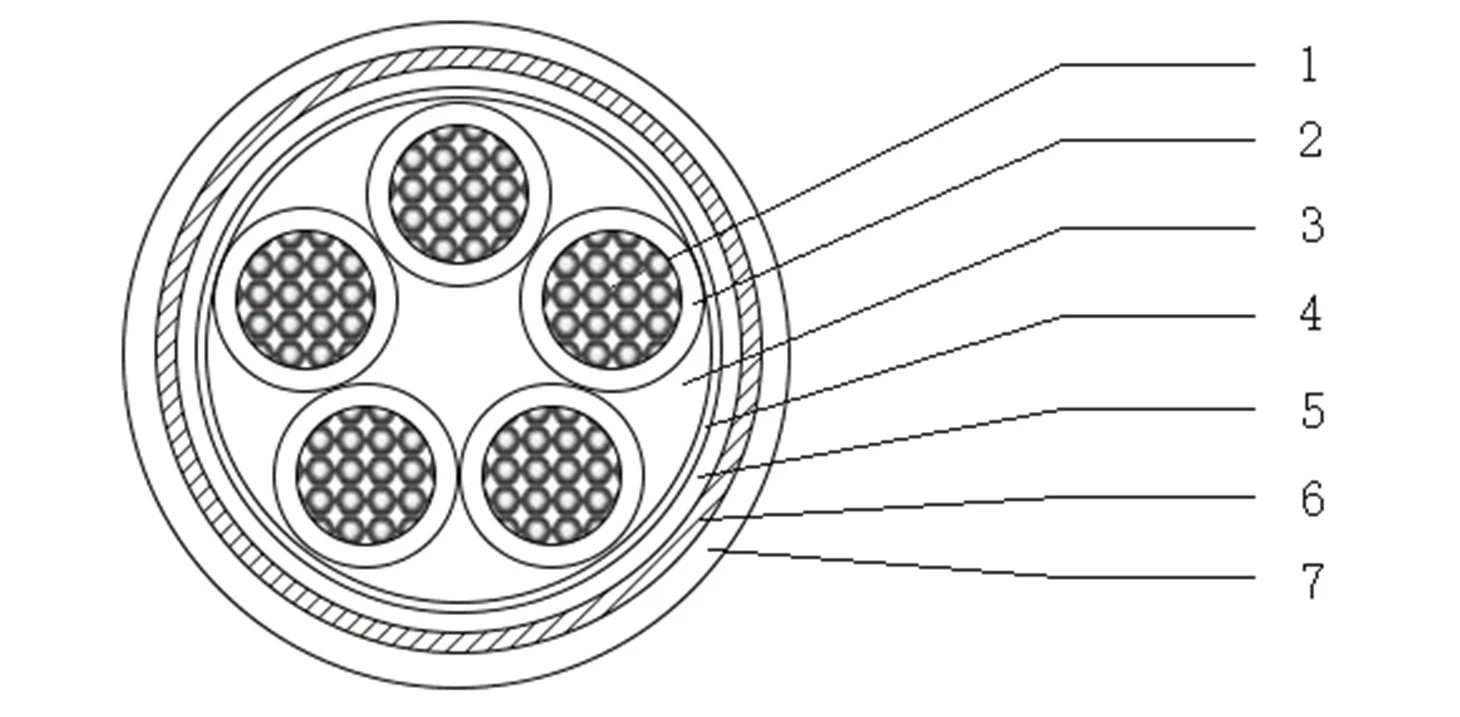

Specification
1. Conductor: aluminum alloy conductor (Class I conductor, Class II conductor)
2. Insulation: XLPE
Color: 1 core: natural color;
2 core: red, blue;
3 core: yellow, green, red;
4 core: yellow, green, red, blue (zero);
5 core: yellow, green, red, blue (zero) black (zero), 4 +1 black is zero line
3. Filling: polypropylene mesh tape filling
4. Wrap: non-woven fabric
5. Lining: polyethylene
6. Armor: galvanized steel belt
7. Sheath: polyethylene Color: black
