PVC Sheath Aluminum Cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.

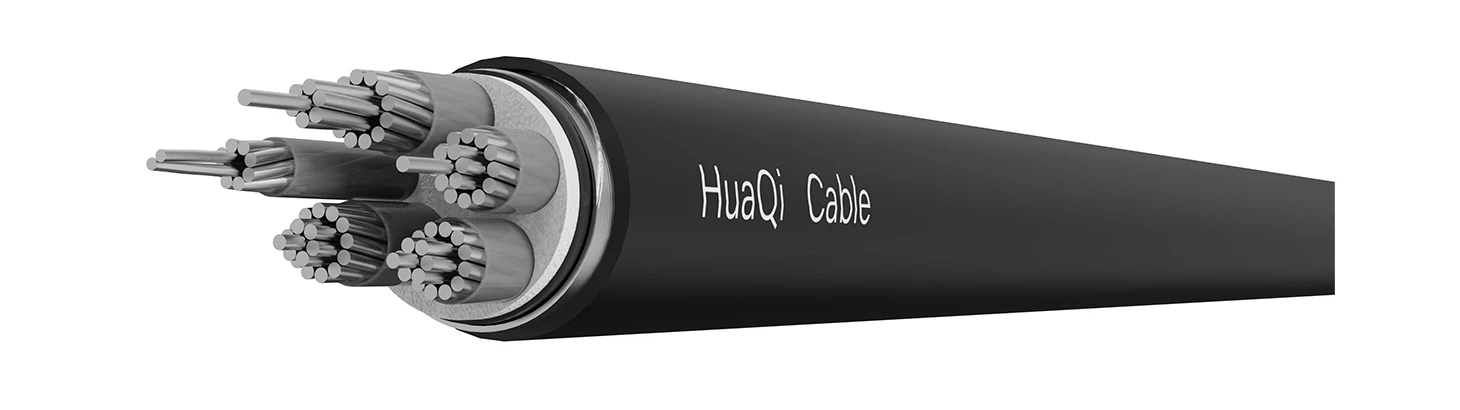

YJLV22 0.6/1KV

YJLV22

Basic Info.

Voltage level：	0.6/1 KV
Implementation standard:	GB/T12706.1-2020
Maximum conductor temperature:	90℃
Maximum short-circuit temperature:	250℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	Single core	Multi-core
	armored	armored
	15D	12D

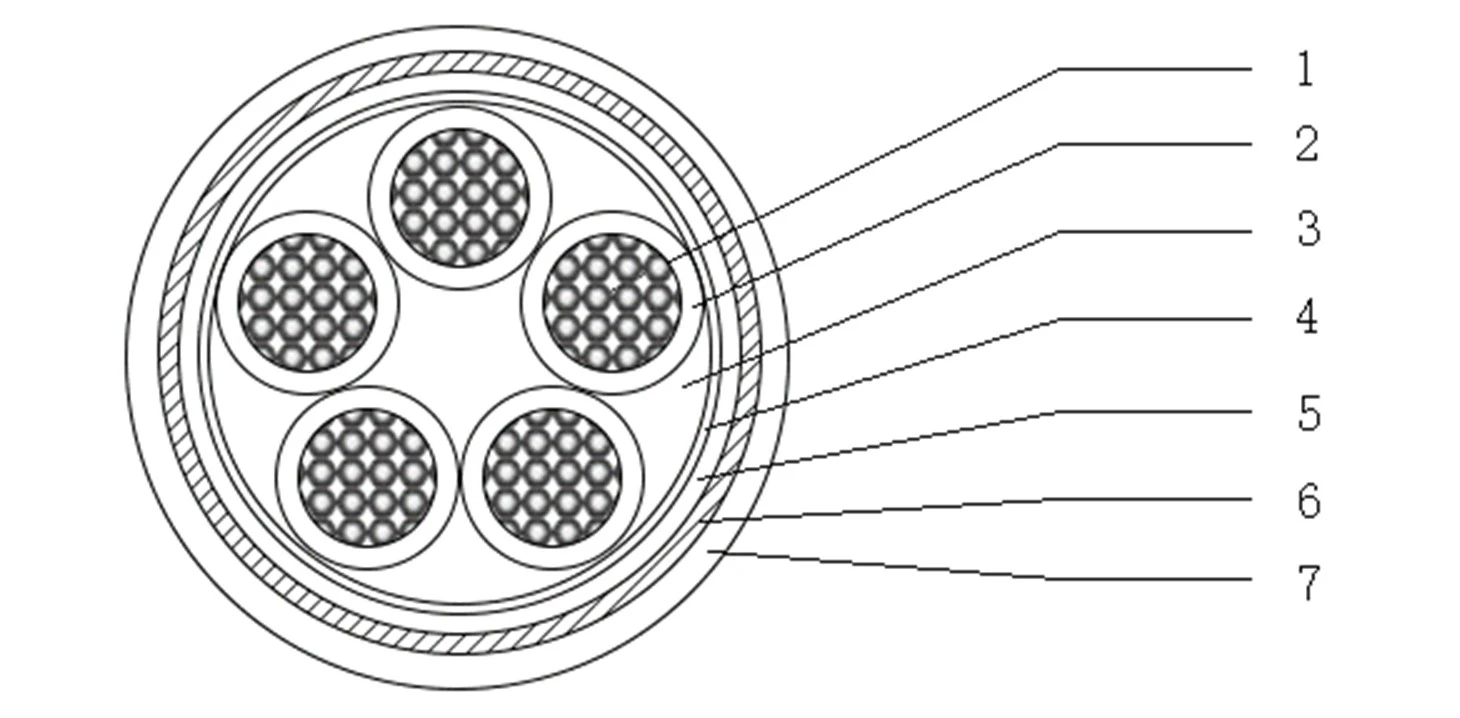

Specification

1. Conductor: Aluminum (Class I conductor, Class II conductor)

2. Insulation: XLPE

Color: 1 core: natural color;

2 core: red, blue;

3 core: yellow, green, red

4 core: yellow, green, red, blue (zero);

5 core: yellow, green, red, blue (zero) black (zero), 4 +1 black is zero line

3. Filling: polypropylene mesh tape filling

4. Wrap: PVC

5. Inner sheath: PVC

6. Armor: galvanized steel tape

7. Sheath: PVC Color: Black

FAQ

Q: What is the main component of PVC Sheath Aluminum Cable?

A: PVC Sheath Aluminum Cable's conductor is based on pure aluminum or aluminum alloy (e.g. AA-8000 series), and the outer layer is usually wrapped with insulating materials such as PVC and XLPE.

Q: What does YJLV22 mean?

YJ	The insulation material is cross-linked polyethylene.
L	Core material is aluminum
V	PVC sheath
2	The first 2 indicates steel tape armor
2	The second 2 indicates a polyvinyl chloride liner
