XLPE Insulated PVC Sheathed Flame Retardant Tape Cable configuration, employing XLPE insulation with PVC jacketing and flame-retardant tape reinforcement, is specifically engineered for 0.6/1kV AC power distribution systems in critical infrastructure. Its primary deployment scenarios include vertical urban developments (high-rises), metro transit networks, industrial power complexes, and mission-critical facilities requiring enhanced fire safety compliance. The design meets operational requirements for emergency power circuits in fire suppression systems, smoke evacuation controls, emergency illumination arrays, and other life-safety electrical installations.

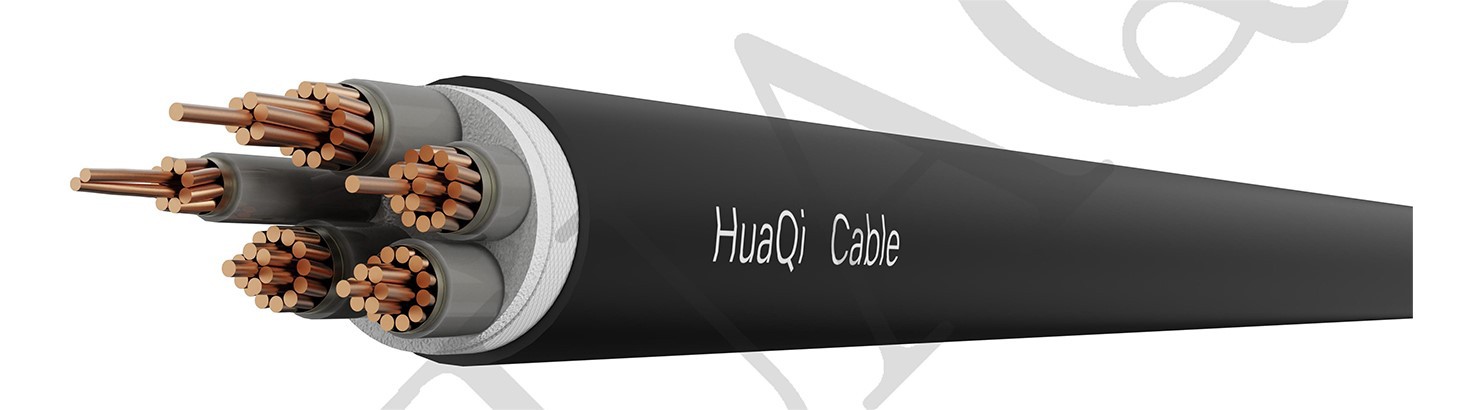

NH-YJV 0.6/1KV

NH-YJV 06-1KV

Basic Info.

Voltage level：	0.6/1 KV
Implementation standard:	GB/T12706.1-2020
Maximum conductor temperature:	90℃
Maximum short-circuit temperature:	250℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	Single core	Multi-core
	Unarmored	Unarmored
	20D	15D

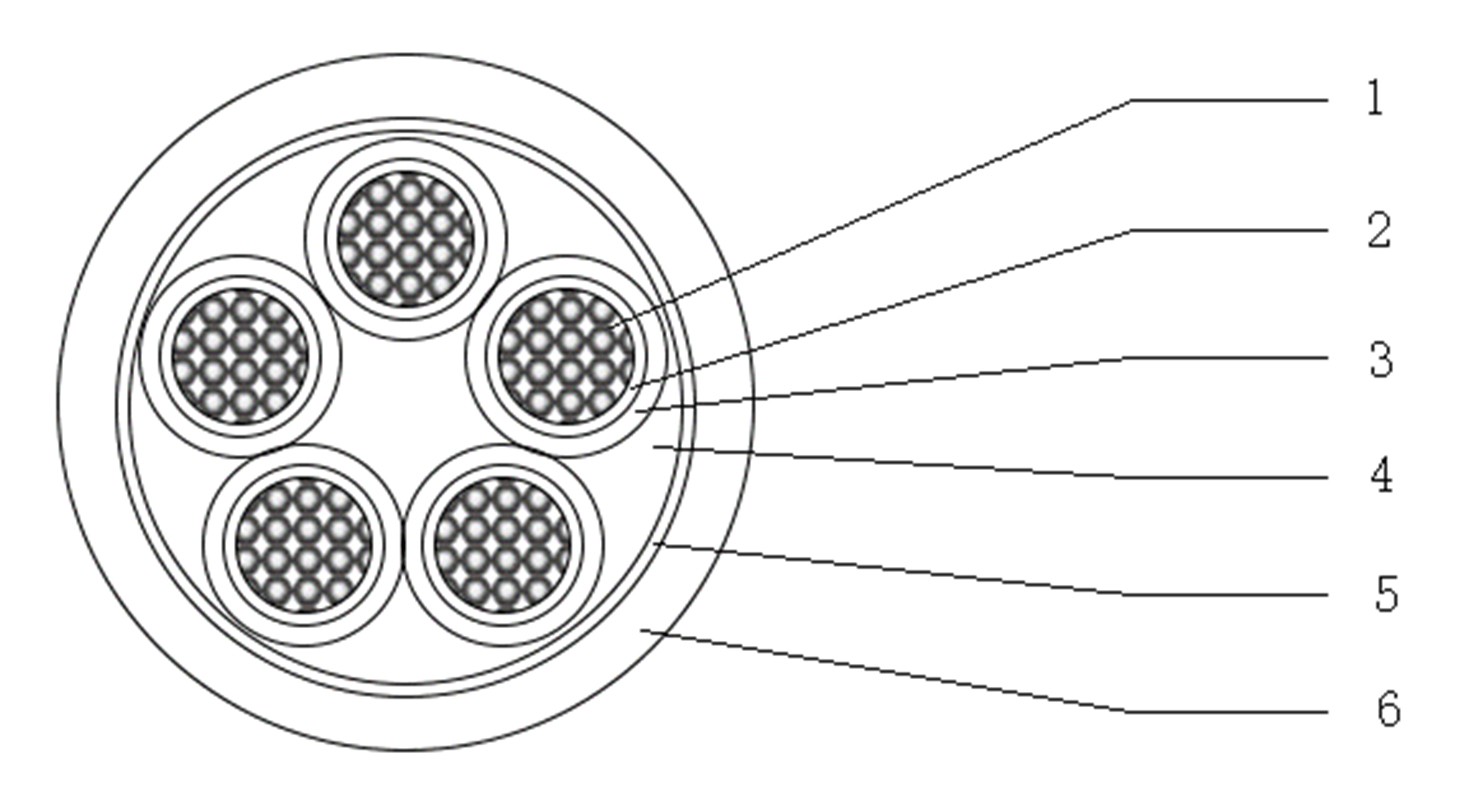

Specification

1. Conductor: Oxygen-free pure copper (Class I conductor, Class II conductor)

2. Insulation: XLPE

Color: 1 core: natural color;

2 core: red, blue;

3 core: yellow, green, red;

4 core: yellow, green, red, blue (zero);

5 core: yellow, green, red, blue (zero) black (zero) 4 +1 black is zero line

3. Refractory material: mica tape

4. Filling: polypropylene mesh tape filling

5. Tape: flame retardant tape

6 Jacket: PVC Color: black

FAQ

Q: Can you tell me the feature and using scene?

A: XLPE Insulated PVC Sheathed Flame Retardant Tape Cable assembly, constructed with XLPE insulation and PVC sheath integrated with fire-resistant tape barriers, is approved for installation in enclosed spaces including interior conduits, tunnel networks, and piping systems. While designed to tolerate controlled tensile forces during installation, structural reinforcement (steel armoring) becomes essential when exposed to direct mechanical stresses. Critical installation protocols prohibit deploying single-conductor variants within ferromagnetic conduit systems.

The solution is specifically engineered for mission-critical environments demanding enhanced fire safety compliance, including:

Critical energy infrastructure facilities (turbine-based generation plants, nuclear reactor complexes)
Subsurface transportation arteries (metro rail tunnels)
Vertical urban developments with integrated emergency systems

Q: What does NH-YJV mean?

NH	This cable use refractory material.
YJ	The insulation material is cross-linked polyethylene.
V	The sheath is polyvinyl chloride
