Fire Rated Control Cable

Product Introduction:

Fire rated control cable has a certain degree of combustion resistance, is produced from a wide range of raw materials at favorable prices, and is easy to process and manufacture.

Send Inquiry

Description

Technical Parameters

Control Cables Supplier

Fire rated control cable has a certain degree of combustion resistance, is produced from a wide range of raw materials at favorable prices, and is easy to process and manufacture.

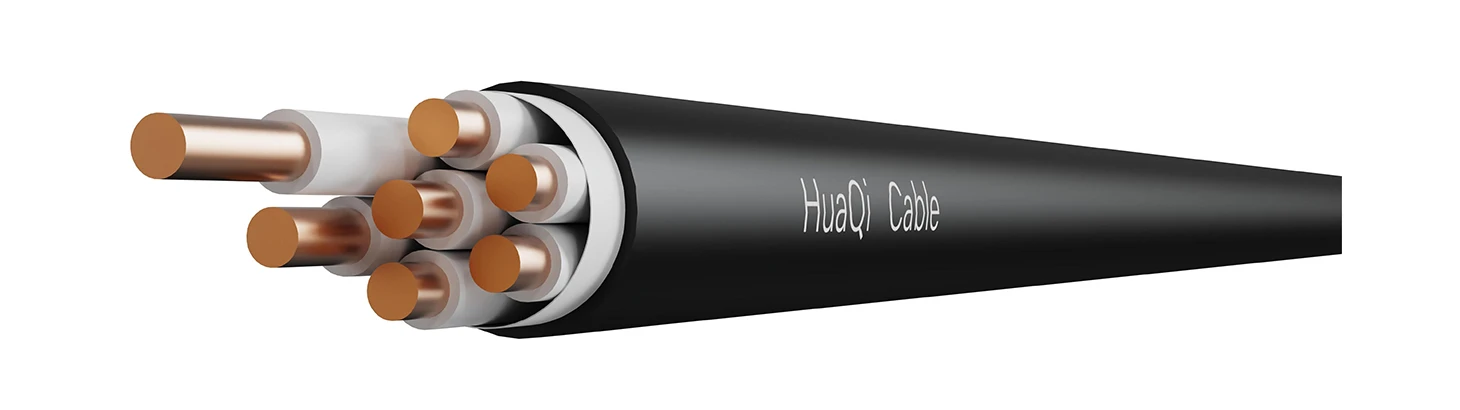

KVV 450/750V

KVV

Basic Info.

Voltage level：	450/750V
Implementation standard:	GB/T9330-2020
Maximum conductor temperature:	70℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	6D

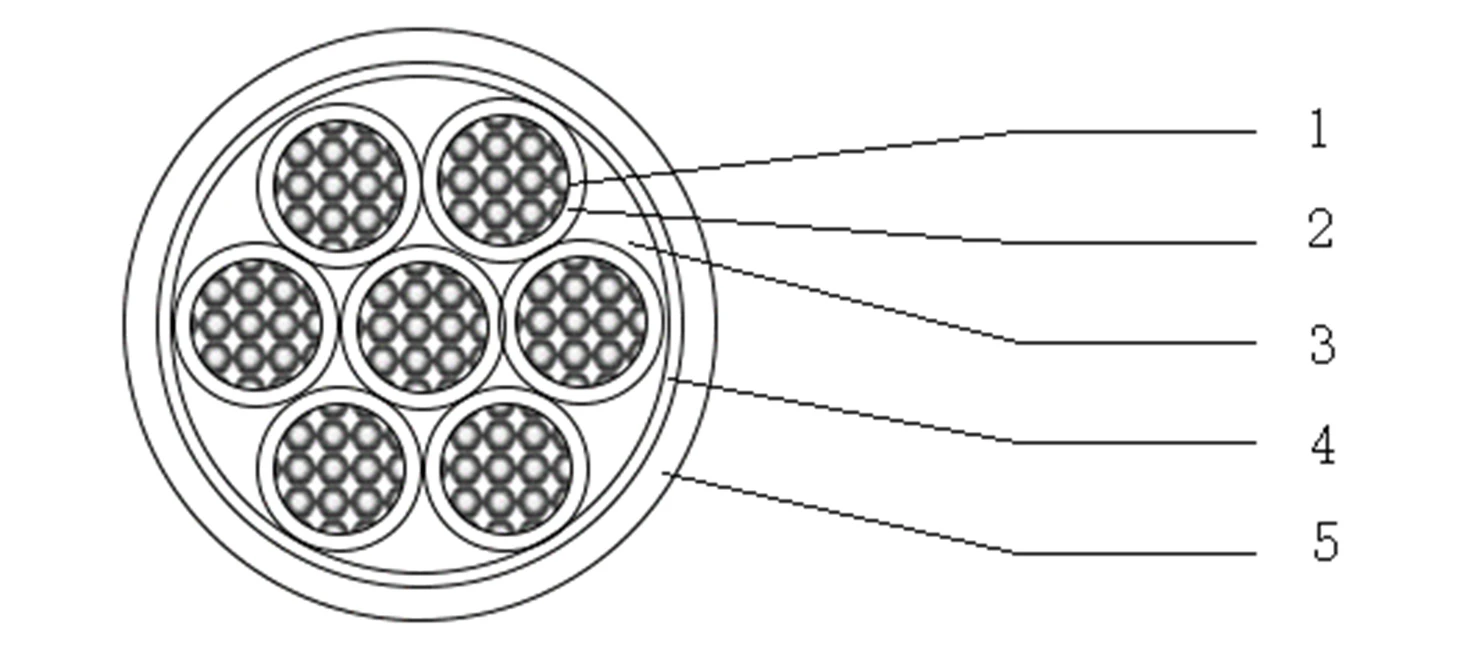

Specification

1. Conductor: Oxygen-free pure copper single or stranded conductor (Class I conductor, Class II conductor)

2. Insulation: PVC

3. Filling: polypropylene mesh tape filling

4. Winding: PP tape

5. Sheath: PVC

FAQ

Q: Can you introduce some Fire Rated Control Cable with special functions?

A：

Fire-resistant type (NH-KVV): passed 950℃/90min combustion test (IEC 60331)
High temperature resistant type: Silicone rubber insulation (-60℃~180℃), used in metallurgical industry.
Rodent and ant resistant: Capsaicin added to the sheath (EN 50264-3)
Anti-interference type: double-layer shielding (aluminum foil + tinned copper mesh), used in medical equipment
