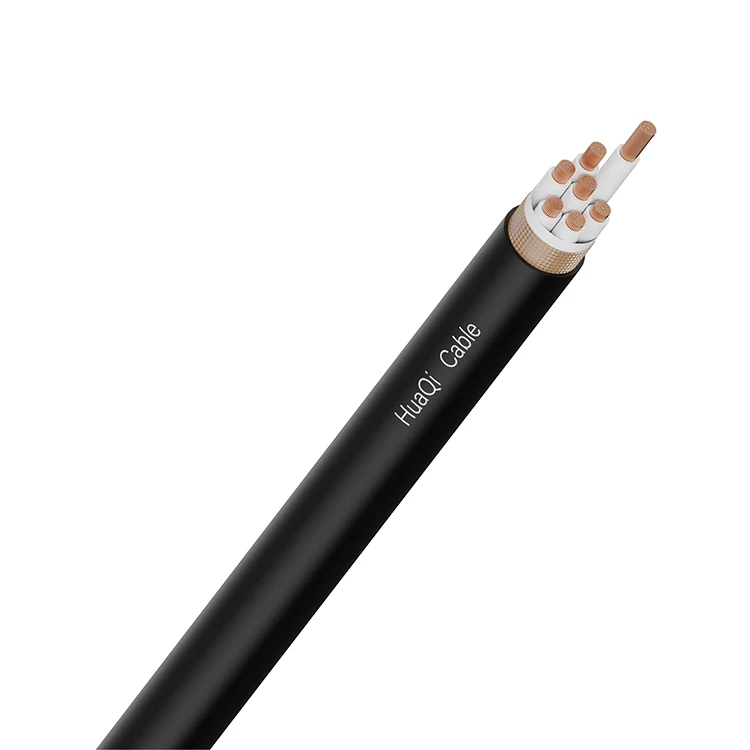

PUR Control Cable

Product Introduction:

PUR control cable has a certain degree of combustion resistance, is produced from a wide range of raw materials at affordable prices, and is easy to process and manufacture.

Send Inquiry

Description

Technical Parameters

Control Cables Supplier

PUR control cable has a certain degree of combustion resistance, is produced from a wide range of raw materials at affordable prices, and is easy to process and manufacture.

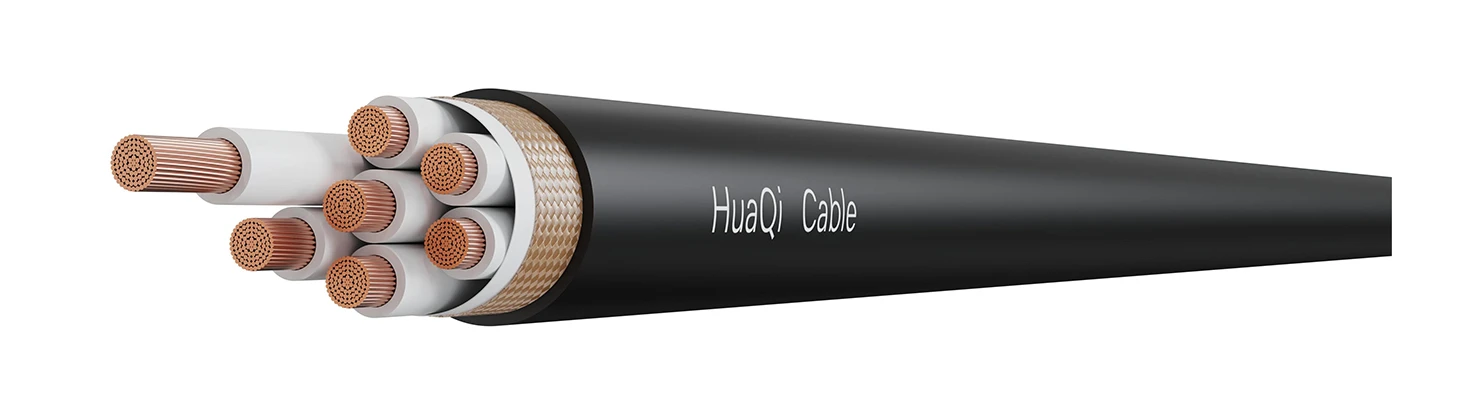

KVVRP 450/750V

KVVRP

Basic Info.

Voltage level：	450/750V
Implementation standard:	GB/T9330-2020
Maximum conductor temperature:	70℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	6D

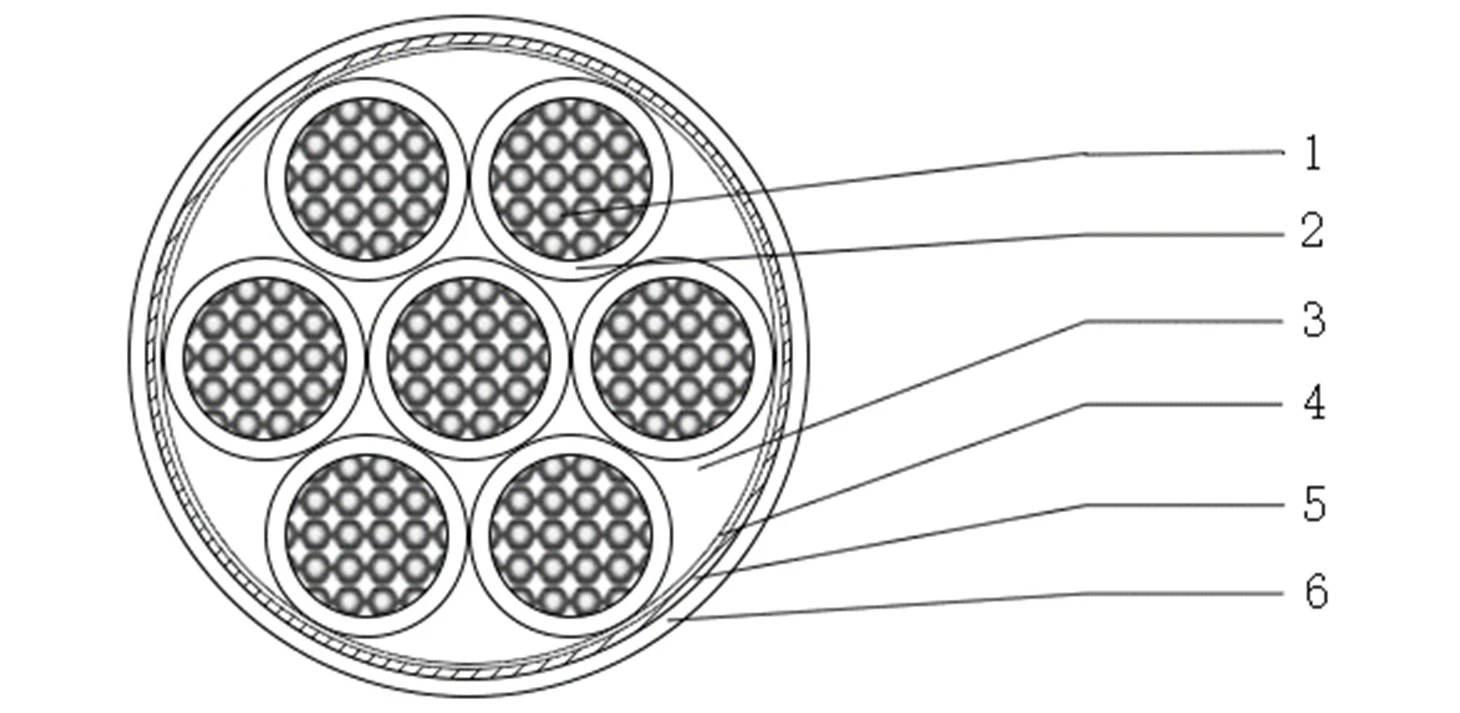

Specification

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Insulation: PVC

3. Filling: polypropylene mesh tape filling

4. Wrapping: PP tape wrapping

5. Shield: copper wire

6. Sheath: PVC

FAQ

Q: What can you tell me about the application scenarios for PUR control cable?

Model	Structure Characteristics	Typical Application	Scene Standard
KVV	Unshielded, PVC sheathed	Dry indoor distribution cabinet	GB/T 9330
KVVP	Copper braided shield	PLC wiring near frequency converter	EN 50288
KVVR	Multi-strand soft conductor	Robot drag chain system	IEC 60228
KVVRP	Shield + soft structure	CNC machine tool mobile end	ISO 11801
