Flame Retardant Control Cable

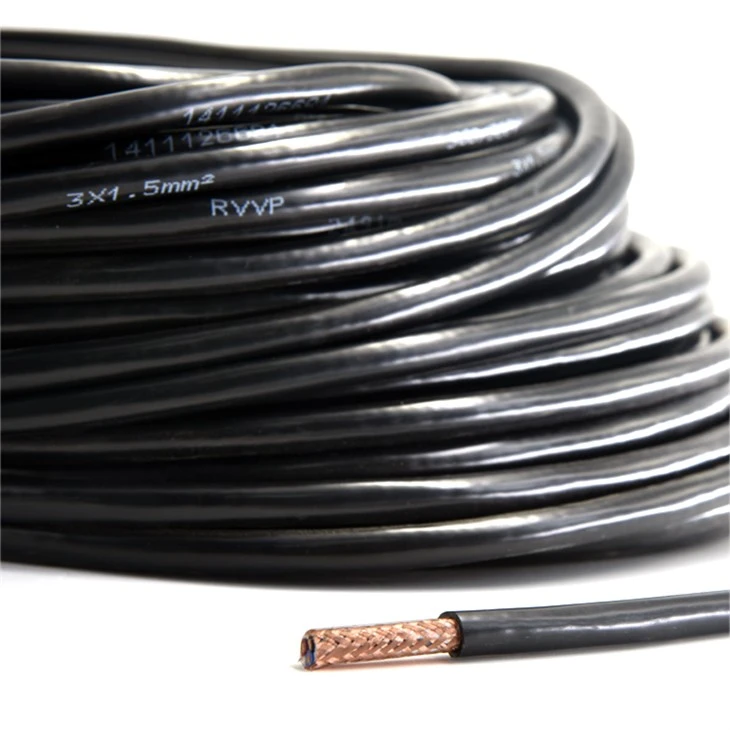

flame retardant control cable

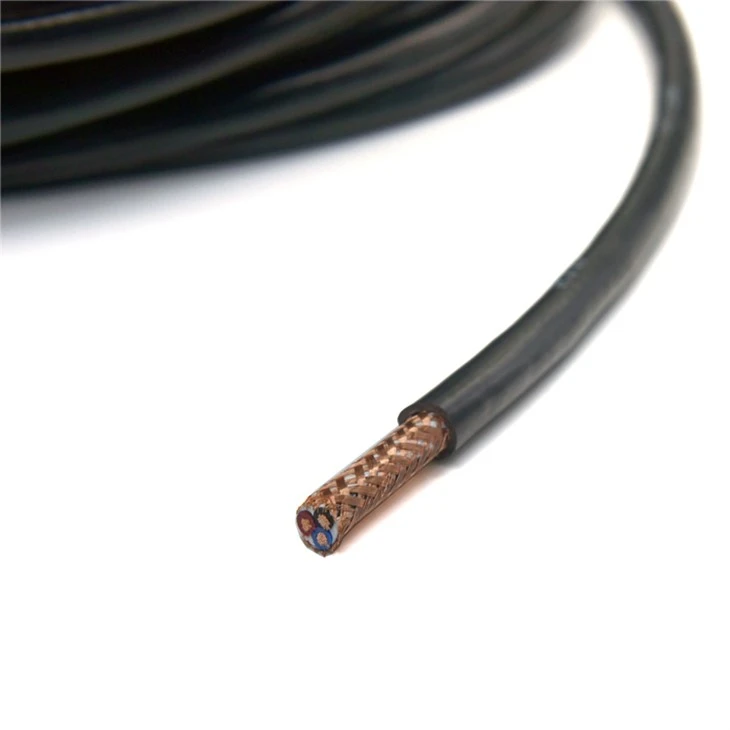

huaqi flame retardant control cable

Product Introduction:

Good flexibility, high bending properties, good insulating properties, simple manufacturing process, stable structure, and abrasion resistance.

Send Inquiry

Description

Technical Parameters

Good flexibility, high bending properties, good insulating properties, simple manufacturing process, stable structure, and abrasion resistance.

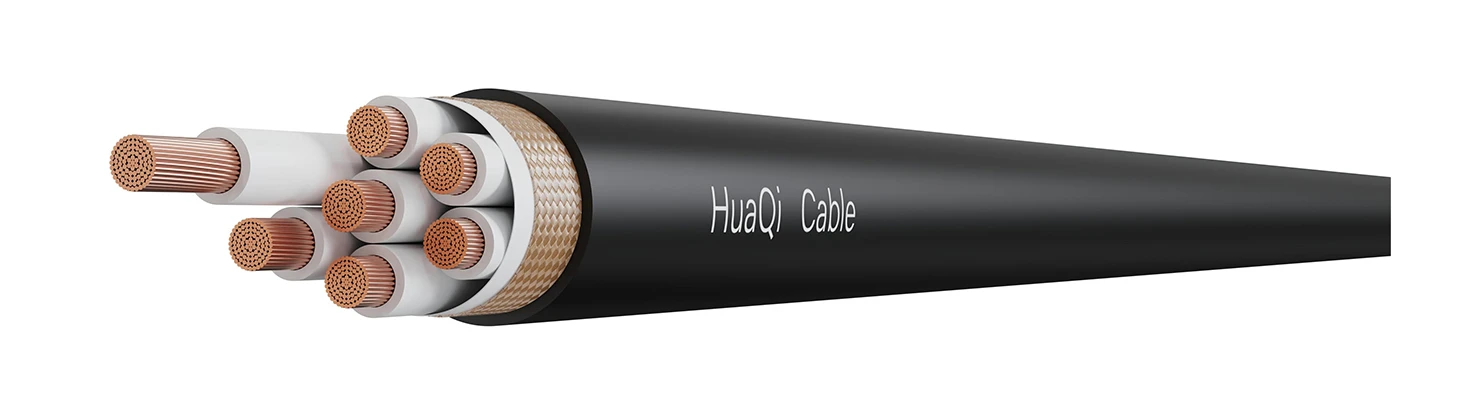

RVVP

Voltage level：	0.3/0.3KV
Implementation standard:	JB/T8734.5-2016
Maximum conductor temperature:	70℃
Minimum operating temperature:	-15℃
Minimum bending radius of cable during installation (D is the outer diameter of the cable)	15D

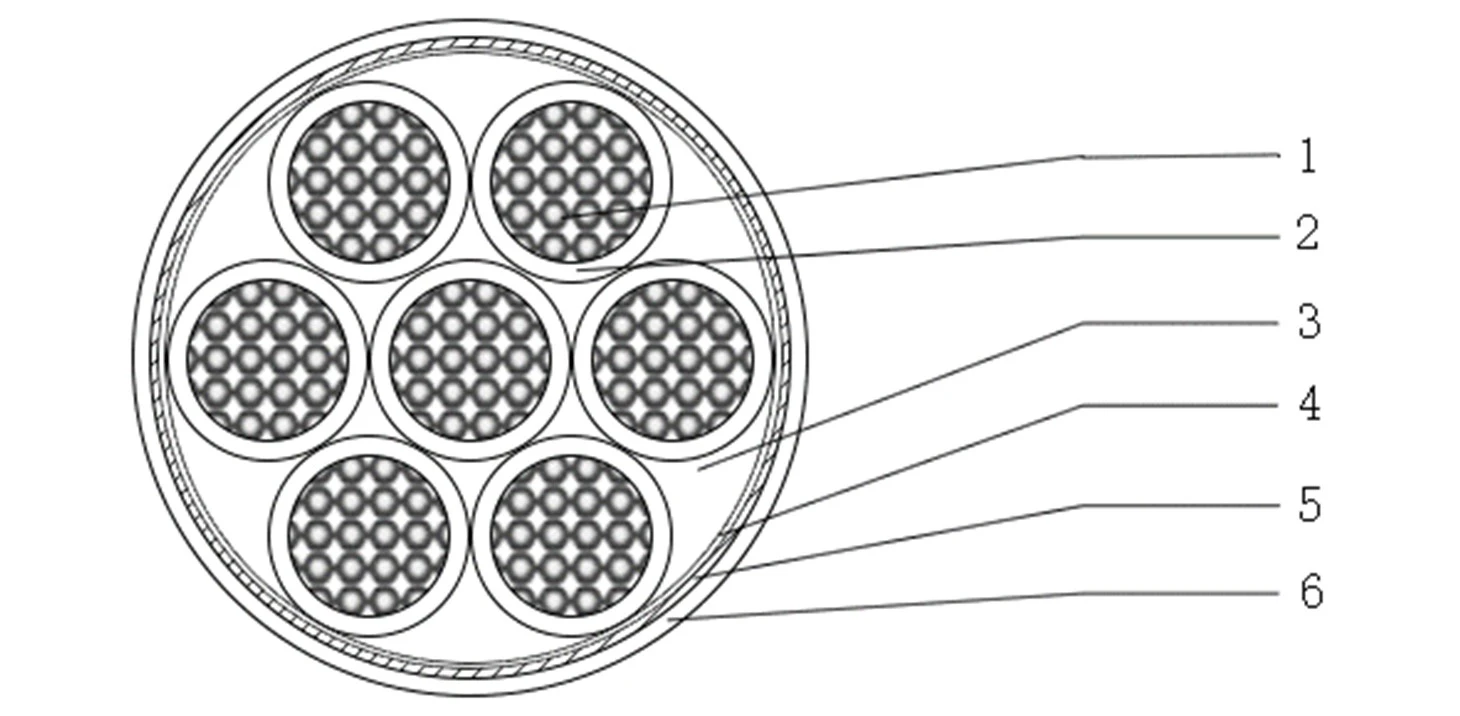

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Insulation: PVC

3. Filling: polypropylene mesh tape filling

4. Wrapping: polyester tape wrapping

5. Shield: copper wire

6. Sheath: PVC

Q: What precautions should be taken when using Flame Retardant Control Cable?

Shield grounding: Must be grounded at one end (typically the controller end) to avoid loop interference.
Bending radius: ≥6 times the cable outer diameter (to prevent shield damage).
Avoid strong electrical interference: Do not lay parallel to high-voltage cables; when crossing, it is recommended to do so vertically.
Operating temperature: -15°C to 70°C (PVC material limitation).

Q: How to identify high-quality Flame Retardant Control Cable?

Bright and soft copper core (no black oxidation)
Tightly covered shielding layer (test connectivity with a multimeter)
Uniform sheath thickness (flame-retardant PVC, printed with specifications/certification marks)
