Submersible Cables Supplier
Good electrical insulation performance under long-term water immersion and large water pressure.Cable wires for submersible pump has good bending performance and can withstand frequent movement. Insulation is made of waterproof rubber; the filling of the cable is also made of waterproof rubber.
Basic Info.
|
Voltage level： |
500V |
|
Implementation standard: |
Q/HQ01 |
|
Maximum operating temperature: |
60℃ |
|
Minimum operating temperature: |
-15℃ |
|
Minimum bending radius for installation D is the outer diameter of the cable |
15D |
|
Laying environment |
The sheath of the cable adopts waterproof rubber sheath suitable for submersible pumps, coal mines, underwater work, underwater scenic lights and other water treatment equipment, the product adopts high-density rubber with waterproof and other features |

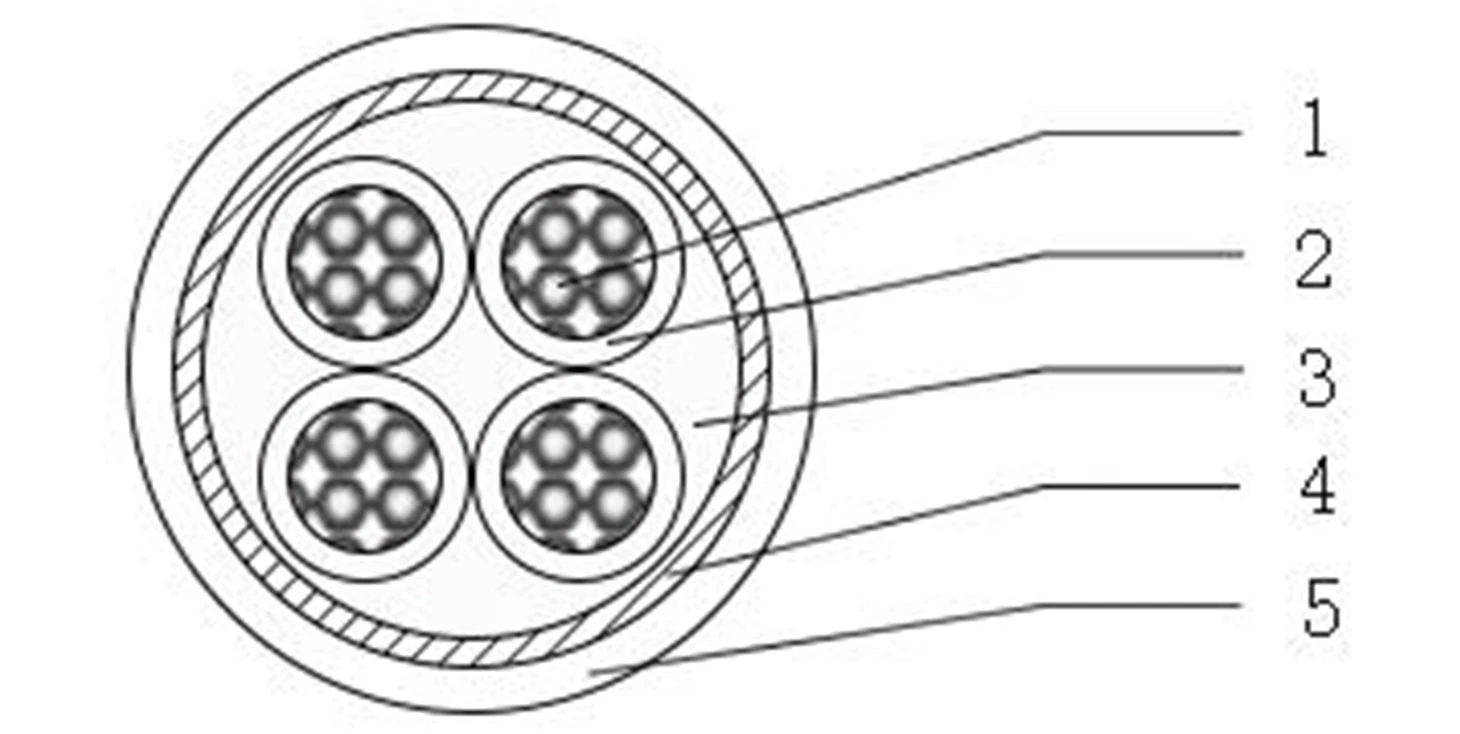

Specification
1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)
2. Insulation: EPDM
3. Shield: copper wire
4. Sheath: EPDM
