Submersible Cables Supplier

Submersible Pump Cable must maintain reliable electrical insulation even when completely submerged for extended periods under high-pressure water environments. These cables are designed to flex repeatedly without damage, accommodating frequent repositioning. To achieve this water resistance, both the insulation layer and internal filler components utilize specialized waterproof rubber compounds.

Basic Info.

Voltage level：	500V
Implementation standard:	Q/HQ01
Maximum operating temperature:	60℃
Minimum operating temperature:	-15℃
Minimum bending radius for installation D is the outer diameter of the cable	15D
Laying environment	The sheath of the cable adopts waterproof rubber sheath suitable for submersible pumps, coal mines, underwater work, underwater scenic lights and other water treatment equipment, the product adopts high-density rubber with waterproof and other features

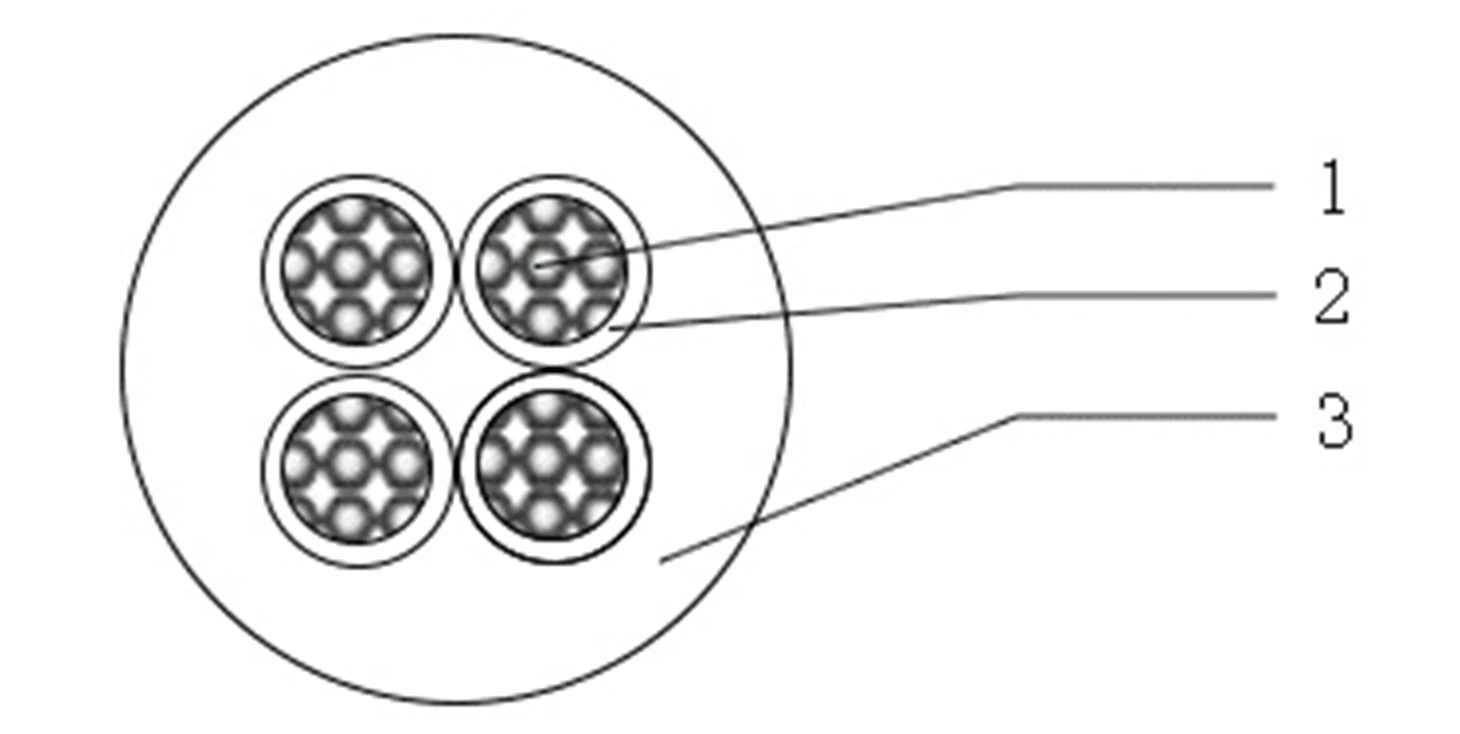

Specification

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Insulation: EPDM

3. Sheath: EPDM

FAQ

Q: What is the using condition of Submersible Pump Cable?

A: 1.Deep Well/Groundwater Extraction

Applied to agricultural irrigation, drinking water supply, mine drainage, and other scenarios.

Cable Requirements: Withstands high water pressure (deep wells can reach over 100 meters), remains watertight even after long-term immersion, and has insulation that resists groundwater corrosion.

2.Wastewater Treatment and Discharge Systems

Wastewater treatment plant lift pumps, rainwater drainage pumps, and industrial wastewater transfer.

Cable requirements: Resistant to acid and alkali corrosion (exposed to hydrogen sulfide and organic solvents), abrasion-resistant (pipe friction), waterproof structure to prevent wastewater penetration.

3.Flood Emergency Drainage

Urban flood rescue, tunnel water drainage, construction site drainage.

Cable requirements: High tensile strength (to prevent breakage from dragging), quick deployment and retraction with flexibility, abrasion-resistant in muddy environments.

4.Aquaculture and water circulation systems

Fish pond aeration pumps, circulating water filtration pumps, and seawater aquaculture pools.

Cable requirements: Saltwater corrosion resistance (copper conductors with anti-oxidation coating), algae resistance, and non-toxic insulation (to prevent water quality contamination).
