Submersible Cables Supplier

Good electrical insulation performance under long-term water immersion and large water pressure. Twisted submersible pump cable has good bending performance and can withstand frequent movement. Insulation is made of waterproof rubber; the filling of the cable is also made of waterproof rubber.

Basic Info.

Voltage level：	500V
Implementation standard:	Q/HQ01
Maximum operating temperature:	60℃
Minimum operating temperature:	-15℃
Minimum bending radius for installation D is the outer diameter of the cable	15D
Laying environment	The sheath of the cable adopts waterproof rubber sheath suitable for submersible pumps, coal mines, underwater work, underwater scenic lights and other water treatment equipment, the product adopts high-density rubber with waterproof and other features

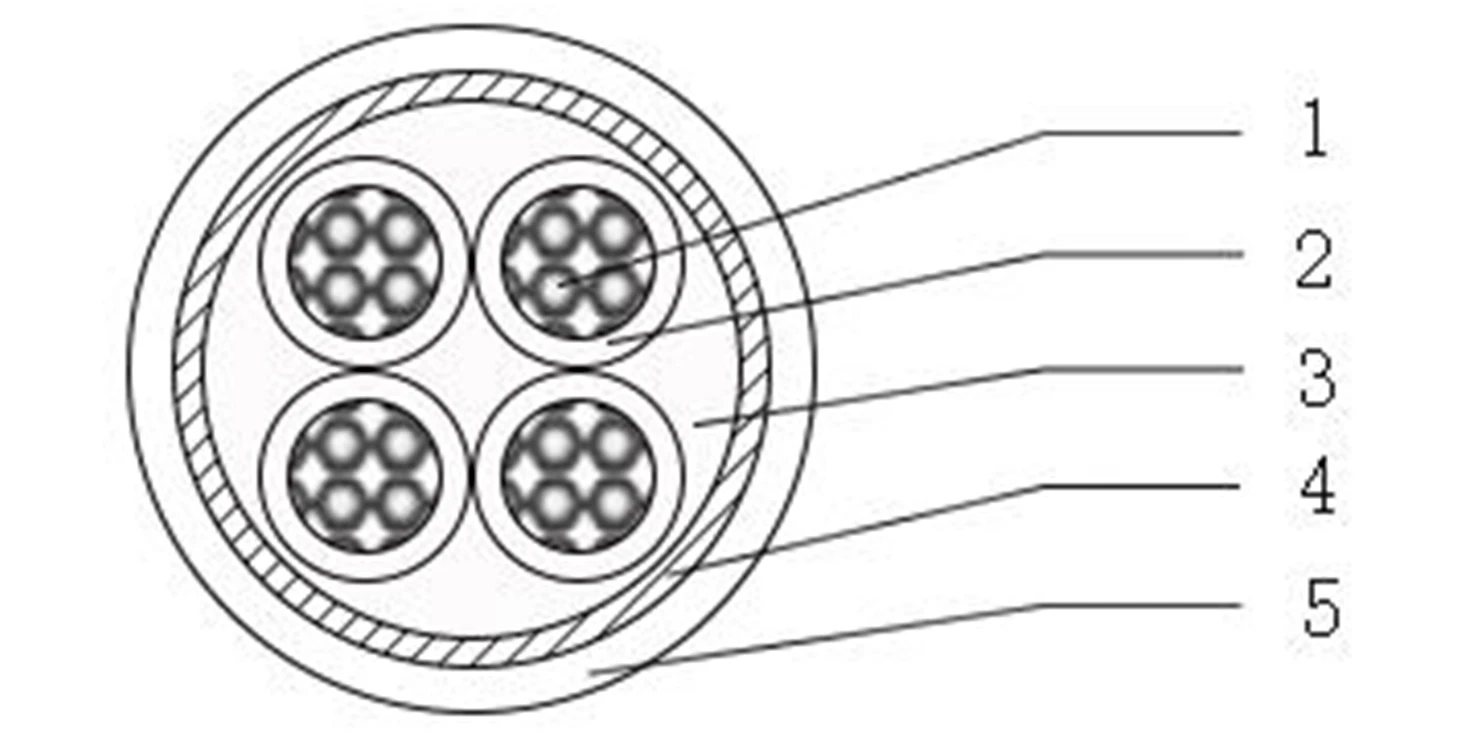

Specification

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Insulation: EPDM

3. Shield: copper wire

4. Sheath: EPDM

FAQ

Q: What is the using condition of this cable?

A: 1. Twisted submersible pump cable is mainly used in the rated voltage of 300/500V submersible machine on the power line.

2. The commonly used cable cores are single-core, double-core, three-core, four-core, five-core, 3+1-core, 3+2-core, as well as the common cross-sectional area of the conductor is 1.5--300mm2.

3. Due to the special characteristics of the cable use occasions, so the cable in normal operation, the maximum operating temperature does not exceed 65 ℃.
