Underground Mining Cable

Underground Mining Cable
Product Introduction:
Underground mining cables have excellent thermo-mechanical properties, excellent electrical properties and chemical resistance, but also has a simple structure, light weight, laying is not restricted by the drop and so on.
Send Inquiry
Description
Technical Parameters
Mining Cables Supplier



Underground mining cables offer robust performance under heat and mechanical stress, deliver superior electrical functionality, and exhibit strong resistance to chemical corrosion. Their straightforward design contributes to a lightweight construction. Furthermore, installation flexibility allows deployment across steep gradients without limitation.



Basic Info.



Voltage level：

0.3/0.5KV

Implementation standard:

MT/T818.9-2009

Maximum operating temperature:

90℃

Minimum operating temperature:

-35℃

Minimum bending radius for installation

D is the outer diameter of the cable

6D

Laying environment

Mainly used for pipe laying, in the cable core and shielding layer of the internal and external surfaces of the petroleum paste filling or casting treatment to prevent the intrusion of water in the coal mine in the coal mine common 30 ℃ 60 ℃ environmental conditions, the coal mine with the mechanical and electrical properties of the communication cable to remain unchanged



Specification

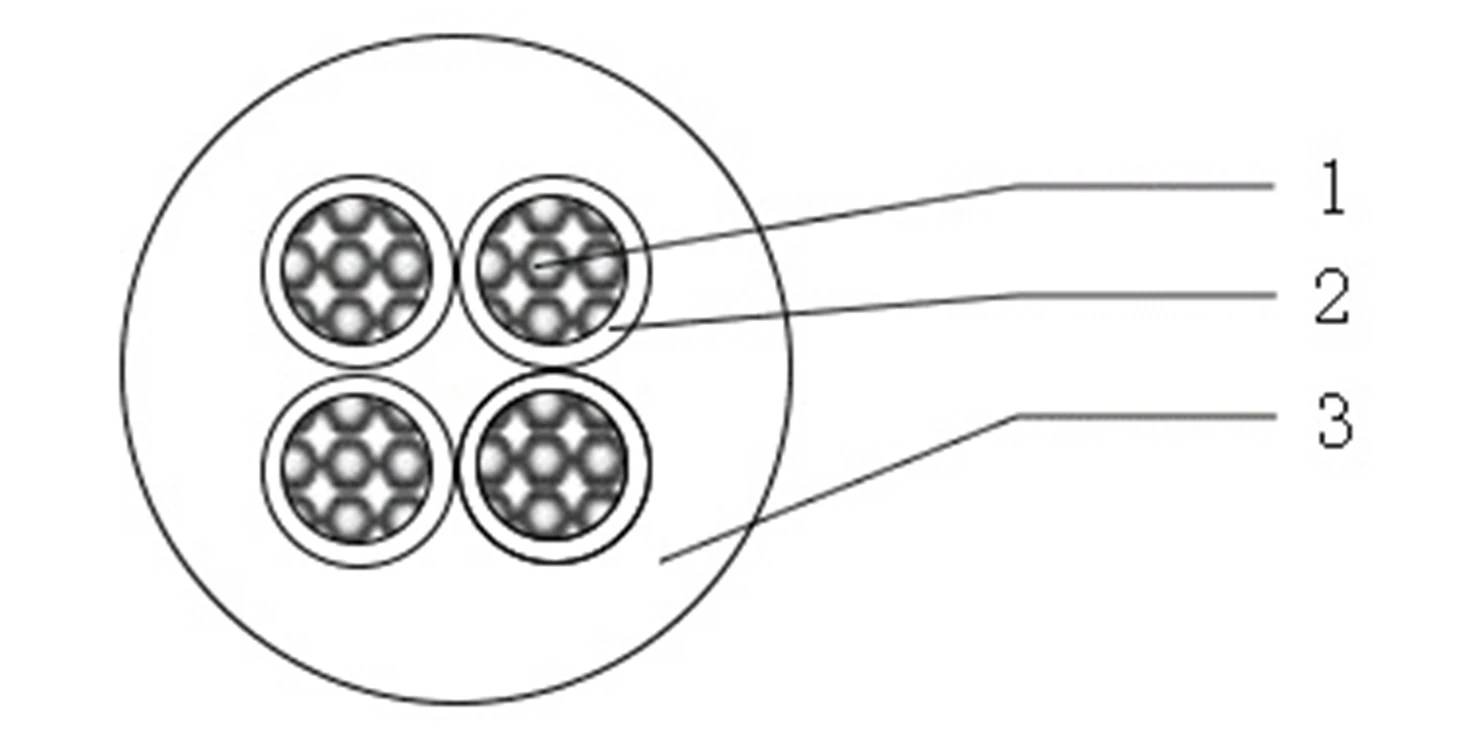

MYQ-03-05KV

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Insulation: EPDM

3. Sheath: EPDM



FAQ



Q: What is the difference between underground mining cable and common cable?

A: 1. Mining cable structure is more complex

Because of its use of the scene is a major mine, and the mine needs such as mining machines, industrial vehicles and other equipment needed to use electricity are huge, so this cable structure used in the mine is more complex, in order to be able to transport the very high voltage current.

2. Higher requirements for safety

Because its application scene is the first line of major mining minerals, all of its safety requirements are very large, because the mine is not allowed to make any mistakes, because any small error may lead to irremediable consequences.
