Submersible Cables Supplier

Electrical Submersible Pump Cable deliver reliable electrical insulation under extended water exposure and high pressure. Key to this performance is the use of waterproof rubber throughout-forming both the insulation and the cable core fillings. Additionally, the cable exhibits superior bending characteristics, enabling it to endure constant flexing and repositioning.

Basic Info.

Voltage level：	500V
Implementation standard:	Q/HQ01
Maximum operating temperature:	60℃
Minimum operating temperature:	-15℃
Minimum bending radius for installation D is the outer diameter of the cable	15D
Laying environment	The sheath of the cable adopts waterproof rubber sheath suitable for submersible pumps, coal mines, underwater work, underwater scenic lights and other water treatment equipment, the product adopts high-density rubber with waterproof and other features

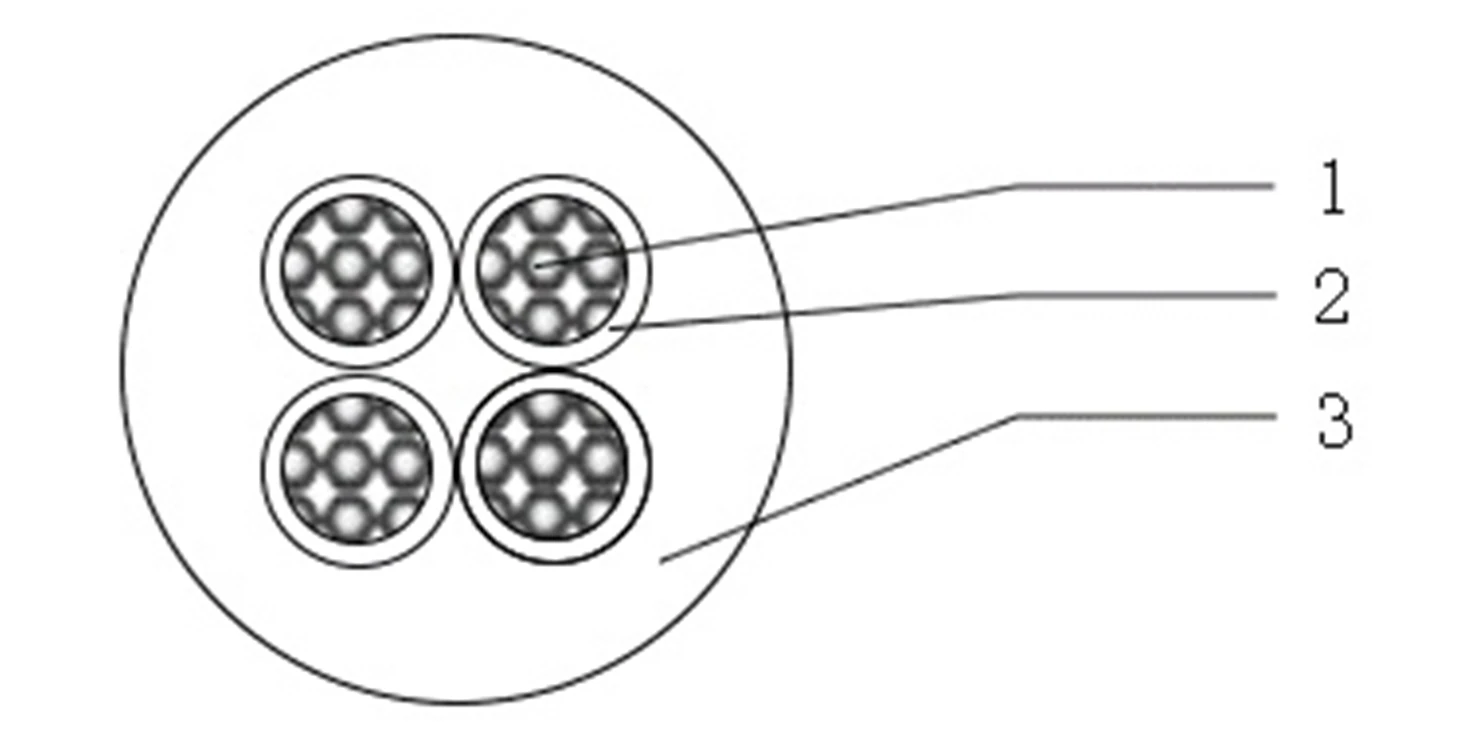

Specification

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Insulation: EPDM

3. Sheath: EPDM

FAQ

Q: What is the Typical application scenarios of Electrical Submersible Pump Cable?

Submersible pump power supply: This is the most classic and major application of JHS cable. Provide power supply for submersible pumps working underwater.
Water treatment equipment: such as underwater mixers, aerators, sewage treatment equipment and other equipment that needs to work underwater or wet environment.
Water operation machinery: such as dredgers, sand mining vessels, dredging equipment and other water engineering machinery power and control system connection.
Mine drainage: power supply for drainage pumps in wet underground environment.
Marine equipment: some small ships or equipment need to be temporarily immersed in water on the connection line.
Power supply for other mobile electrical equipment that is wet or may come into contact with water.
