Sub Pump Cable is a specially designed 300/500V class waterproof rubber sheathed flexible cable. It takes excellent waterproof (especially submerged) performance, good flexibility and mobility as its core advantages, and is mainly used to supply power to submersible pumps, water treatment equipment, water machinery and other equipment that needs to be moved and work underwater or in extremely humid environments. When choosing and selecting, you need to pay attention to its voltage level and whether it is a regular product in line with the standard.

Basic Info.

Voltage level：	500V
Implementation standard:	Q/HQ01
Maximum operating temperature:	60℃
Minimum operating temperature:	-15℃
Minimum bending radius for installation D is the outer diameter of the cable	15D
Laying environment	The sheath of the cable adopts waterproof rubber sheath suitable for submersible pumps, coal mines, underwater work, underwater scenic lights and other water treatment equipment, the product adopts high-density rubber with waterproof and other features

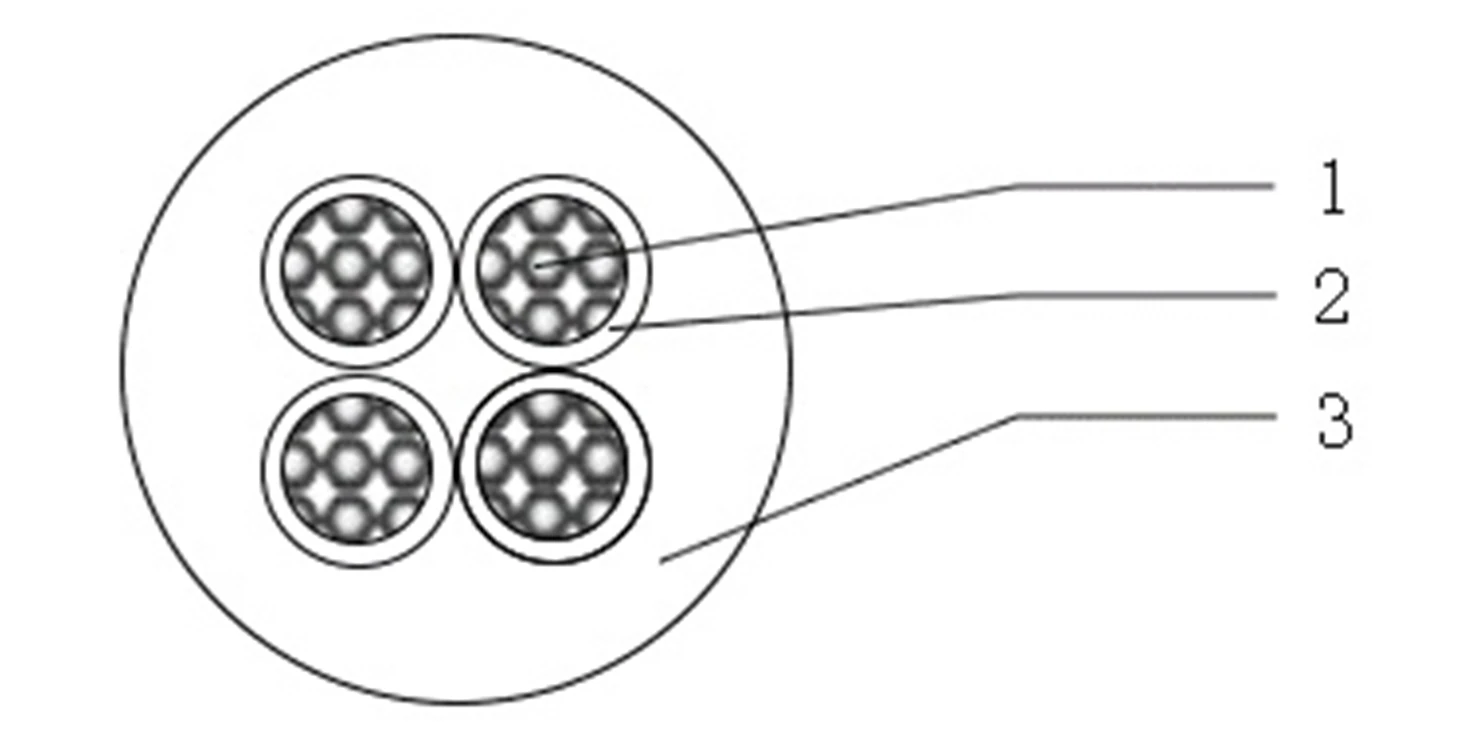

Specification

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Insulation: EPDM

3. Shield: copper wire

4. Sheath: EPDM

FAQ

Q: What is the important notes of Sub Pump Cable?

Voltage Rating: Be sure to check whether the rated voltage of the cable (300/500V) meets the requirements of the equipment.

Alternative models: In the national standard GB/T series, the model with the closest performance is JHS-300/500 V. Sometimes you may also see the replacement with general-purpose rubber cables such as YZW, YCW, etc., but their waterproof (especially immersion) performance is usually not as good as that of the specialized JHS cables. For long term water immersion, JHS/JHS-300/500V is a more specialized and reliable choice.

Non-fixed Laying: JHS is designed to be moved and stowed and is not recommended for long-term use as a fixed laying trunk cable.

Certifications and Standards: When purchasing, pay attention to whether the product complies with relevant national standards (e.g. JB/T 8735.2, etc.) or industry standards, and check the certificates of conformity and test reports.
