Electric Vehicle Charging Cables Supplier

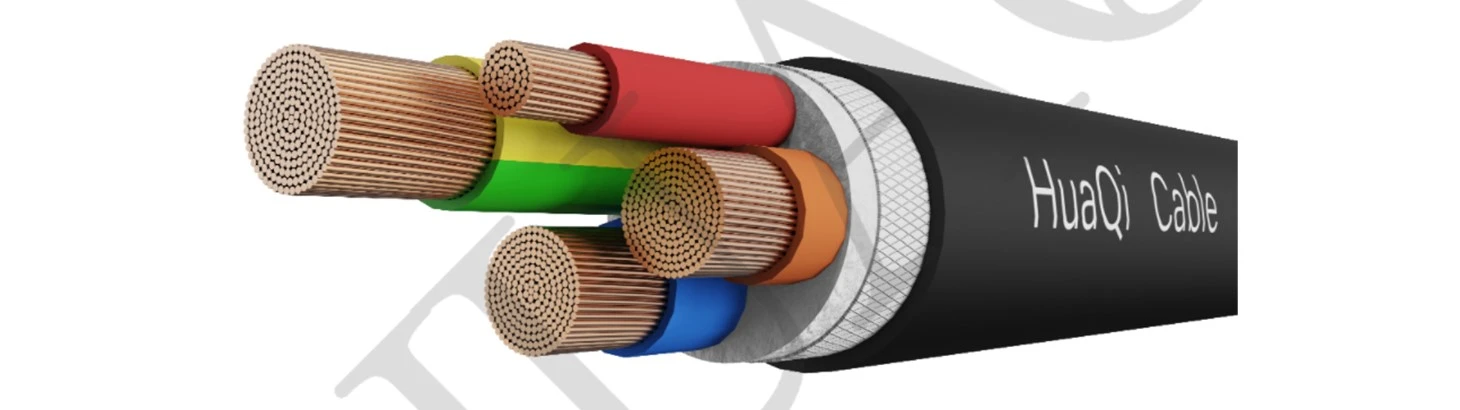

EVC Cable for electric vehicle charging pile: long life, anti-bending, ultra-flexible and cold-resistant, low-temperature state can still ensure good flexibility; environmental adaptability, high voltage, acid and alkali resistance, ozone resistance, oil resistance, heat resistance, resistance to electromagnetic interference, ultraviolet resistance.
EV 0.6/1KV
Basic Info.
|
Voltage level： |
0.6/1KV |
|
Implementation standard: |
GB/T 33594-2017 |
|
Maximum operating temperature: |
90℃ |
|
Minimum operating temperature: |
-40℃ |
|
Laying environment |
Installation of the entire cable can not be exposed, need to set of hard tube protection, the inner diameter of the protection tube shall not be less than 1.5 times the outer diameter of the cable (including the protective layer); placed in the car, highway, shopping malls, parking lots, garages and other occasions of charging piles |

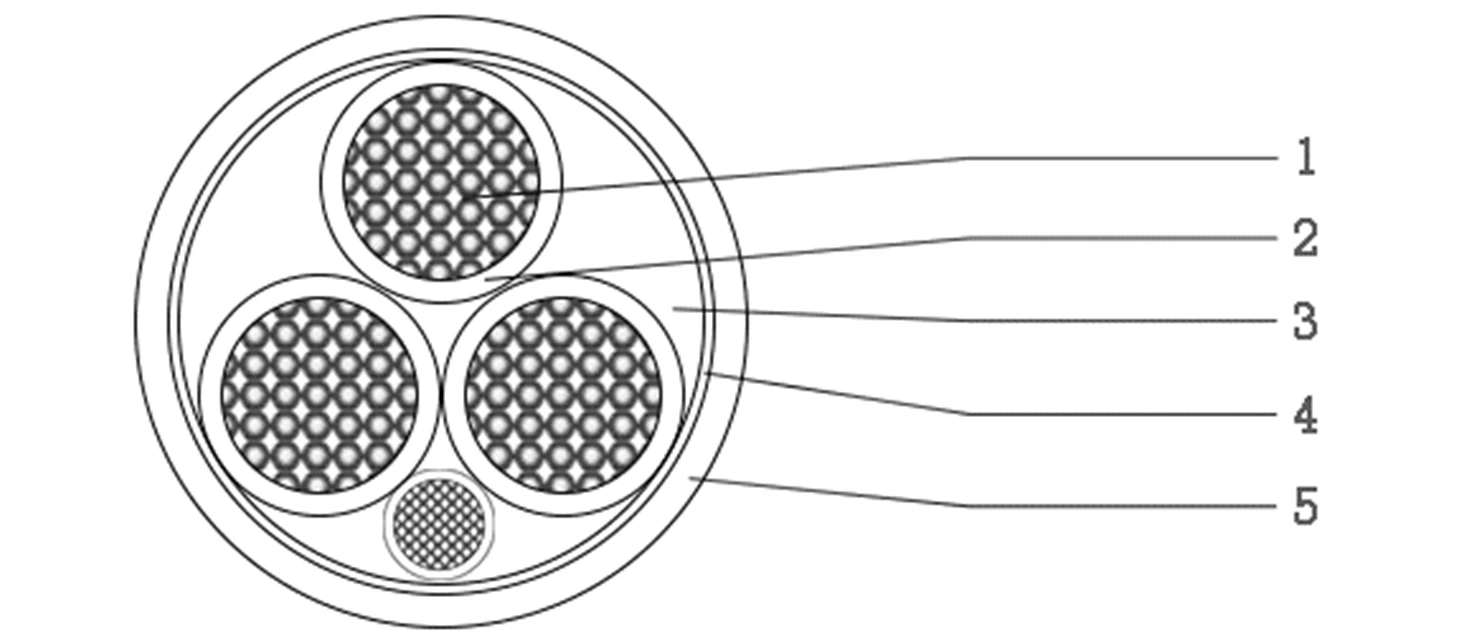

Specification
1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor, Class VI conductor)
2. Insulation: TPE
Color: two cores: blue, brown
Three core: green/yellow, blue, brown
Four core: green/yellow, blue, brown, gray
Five core: green/yellow, blue, brown, black, gray
3. Filling: polypropylene mesh tape filling
4. Wrap: non-woven fabric
5. Sheath: TPE
