Annealed PVC Sheathed Fireproof Cables utilize a magnesium oxide (MgO) crystalline matrix as the dielectric core, encapsulated within an annealed PVC protective sheath. The inorganic composition demonstrates three-tier fire safety mechanisms:

Pyrolysis suppression

Non-combustible mineral insulation (ASTM E136 combustibility rating)

Arc resistance >180s @ 5kV (IEC 60695-11-10 verified)

Thermal stability

Continuous operation up to 250°C (BS 6387 Category C+W)

Short-circuit withstand: 950°C/180min (IEC 60331-1 compliant)

Failure containment

Zero halogen emission (Br/Cl <15ppm per IEC 62821-3)

Smoke density <5% light obscuration (ISO 5659-2)

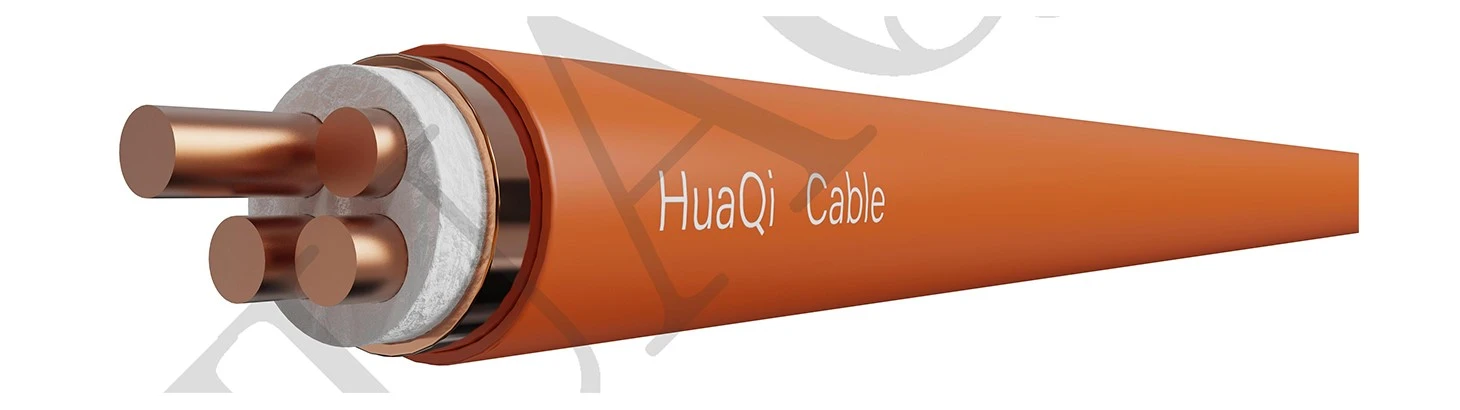

BTTVZ 750V

BTTYZ BTTVZ

Basic Info.

Voltage level：	750V
Implementation standard:	GB/T13033.1-2007
Low-temperature impact：	No cracking at -15℃.
Maximum short-circuit temperature:	No cracking at 150°C
High-temperature operation:	Continuous operating temperature of 250 ℃, at 950 ℃ - 1000 ℃ can be continuously powered for 3 hours
Laying environment：	Public buildings, high temperature occasions, dangerous places, underground places, transportation or traffic hubs, etc.; can be buried but do not have intermediate joints, can not be avoided to do a good job of waterproof treatment; can be used in some corrosive environments or through the pipe laying

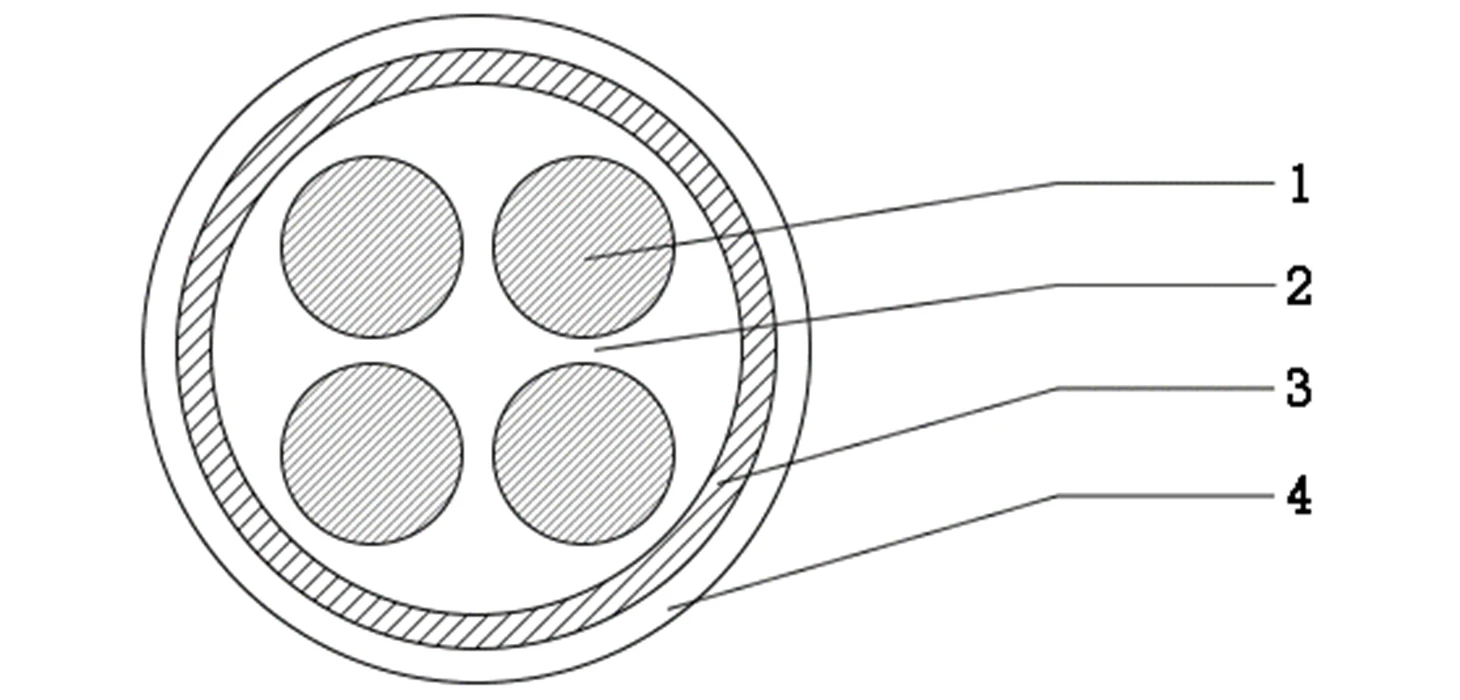

Specification

1. Conductor: annealed oxygen-free pure copper (a class of conductor)

2. Insulation: magnesium oxide

3. Metal sheath: annealed copper

4. Outer sheath: PVC

FAQ

Q: What does BTTVZ mean?

B	Fixed Installation Power Cable for Wiring
T	copper sheath
T	copper conductor
V	Polyethylene outer sheath
Z	Withstanding Voltage Options, Withstanding Voltage Rating Heavy Duty 750V, Light Duty 500V

Q: Which places could use Annealed PVC Sheathed Fireproof Cable?

A: Power supply for equipment in places with high ambient temperatures, such as steel mills, smelters, glass factories, etc.; and

Flammable and explosive important occasions, such as: petrochemical, coal mine and other buildings in the power supply of equipment;

Places that require special cleanliness and hygiene, such as: hospitals, food factories and other equipment power supply.

Important military industry, national defense, aerospace, satellite base equipment power supply.

Power supply for important equipment in power plants and nuclear power stations.

Power supply for modern rail transportation lines, such as: subway, high-speed rail, light rail, etc.
