Annealed PO Sheathed Fireproof Cables are made of inorganic materials, and the insulator magnesium oxide does not produce open flames when overloaded or short-circuited, so lines made of mineral insulated cables will not lead to fires.

BTTVZ 750V

BTTYZ BTTVZ

Basic Info.

Voltage level：	750V
Implementation standard:	GB/T13033.1-2007
Low-temperature impact：	No cracking at -15℃.
Maximum short-circuit temperature:	No cracking at 150°C
High-temperature operation:	Continuous operating temperature of 250 ℃, at 950 ℃ - 1000 ℃ can be continuously powered for 3 hours
Laying environment：	Public buildings, high temperature occasions, dangerous places, underground places, transportation or traffic hubs, etc.; can be buried but do not have intermediate joints, can not be avoided to do a good job of waterproof treatment; can be used in some corrosive environments or through the pipe laying

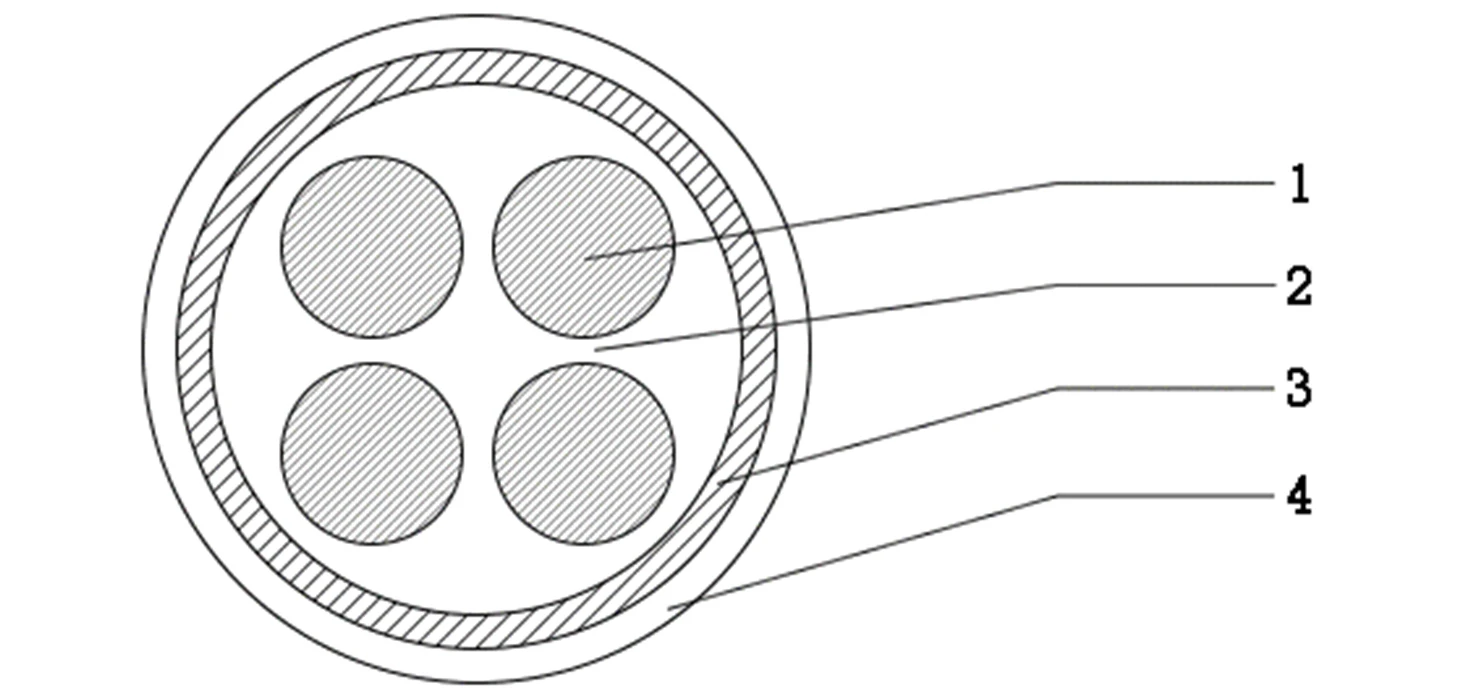

Specification

1. Conductor: annealed oxygen-free pure copper (a class of conductor)

2. Insulation: magnesium oxide

3. Metal sheath: annealed copper

4. Outer sheath: PVC

FAQ

Q: What does BTTVZ mean?

B	Fixed Installation Power Cable for Wiring
T	copper sheath
T	copper conductor
V	Polyethylene outer sheath
Z	Withstanding Voltage Options, Withstanding Voltage Rating Heavy Duty 750V, Light Duty 500V

Q: What is the feature and advantage of Annealed PO Sheathed Fireproof Cable?

Sheath Material

Annealed polyolefin (PO) sheath: annealed to remove internal stresses and improve flexibility (bending radius down to 4D) while maintaining high mechanical strength (tensile strength ≥15MPa, in accordance with IEC 60227).

High-temperature resistance: Long-term operating temperature -50°C to +105°C, short-term overload resistance +150°C (tested according to IEC 60332-1).

Fire-retardant layer design

Multi-layer fire-retardant structure: mica tape + ceramicized silicone rubber composite insulation (fire resistance ≥180 minutes, in accordance with BS 6387 CWZ standard).

Halogen-free and low smoke formula: Smoke transmission rate ≥80% during combustion (ISO 5659-2), toxic gas emission <0.5% HCl (EN 60754-1).
