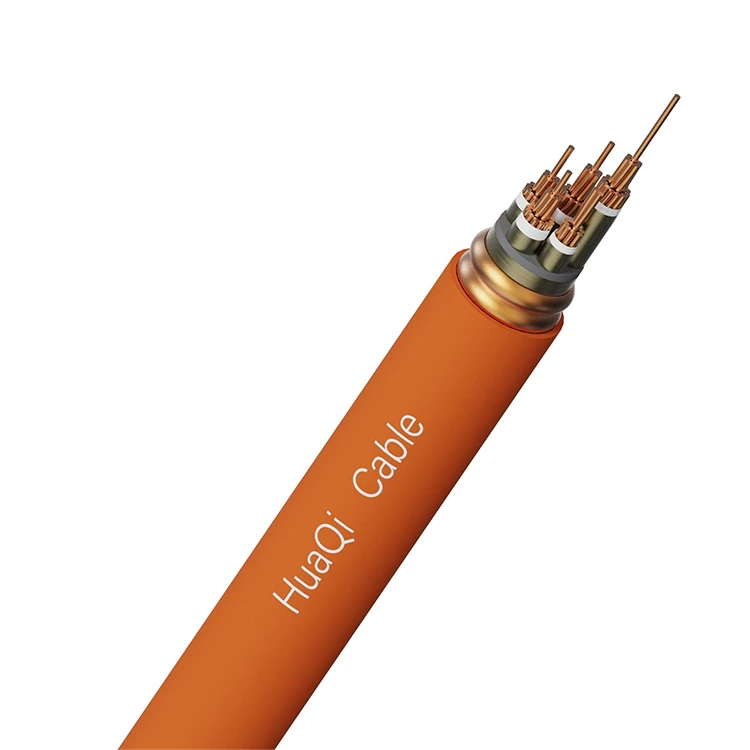

Fireproof Wire

Fireproof Wire
Product Introduction:
Fireproof wires are made of inorganic materials, and the insulator magnesium oxide does not produce open flames when overloaded or short-circuited, so lines made of mineral insulated cables will not lead to fires.
Send Inquiry
Description
Technical Parameters
Fireproof Cables Supplier



Fireproof wires are made of inorganic materials, and the insulator magnesium oxide does not produce open flames when overloaded or short-circuited, so lines made of mineral insulated cables will not lead to fires.



BBTRZ 0.6/1KV

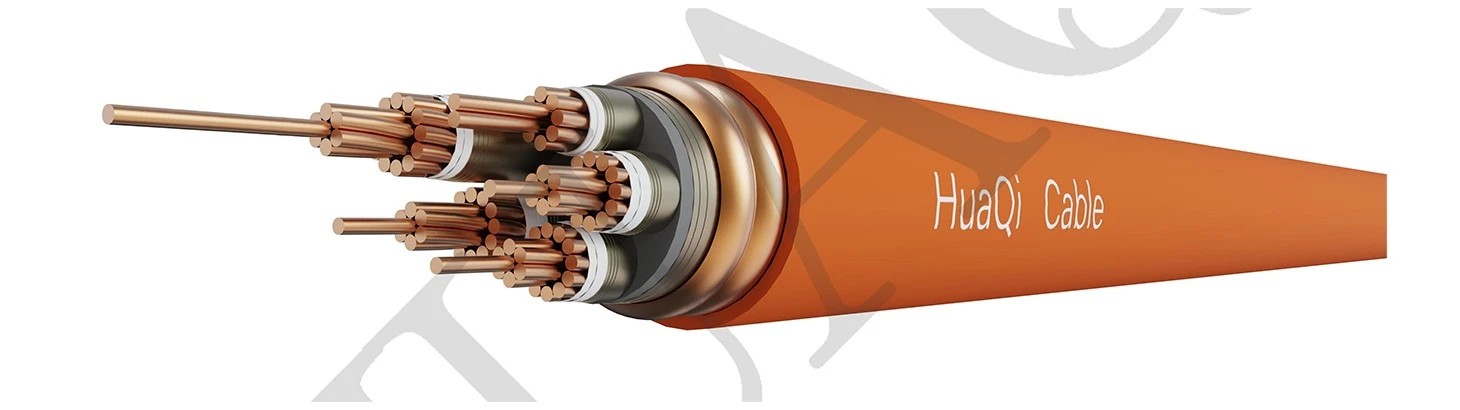

YTTWBTTRZ1



Basic Info.



Voltage level：

0.6/1 KV

Implementation standard:

Q/CQHQ 09-2022

Fire Resistance Properties:

A class in the flame temperature of 950 ℃ in the combustion phase and phase and the outer sheath between the application of 750V voltage, after 90min insulation is not damaged

Class B in the flame temperature of 750 ℃ -800 ℃ in the combustion phase-to-phase and phase and the outer sheath between the application of 750V voltage, after 90min insulation is not damaged

Minimum cable bending radius

(D is the cable diameter, unit: mm)

D≤12

12＜D≤20

20＜D≤40

D＞40

12D

20D

30D

40D



Specification

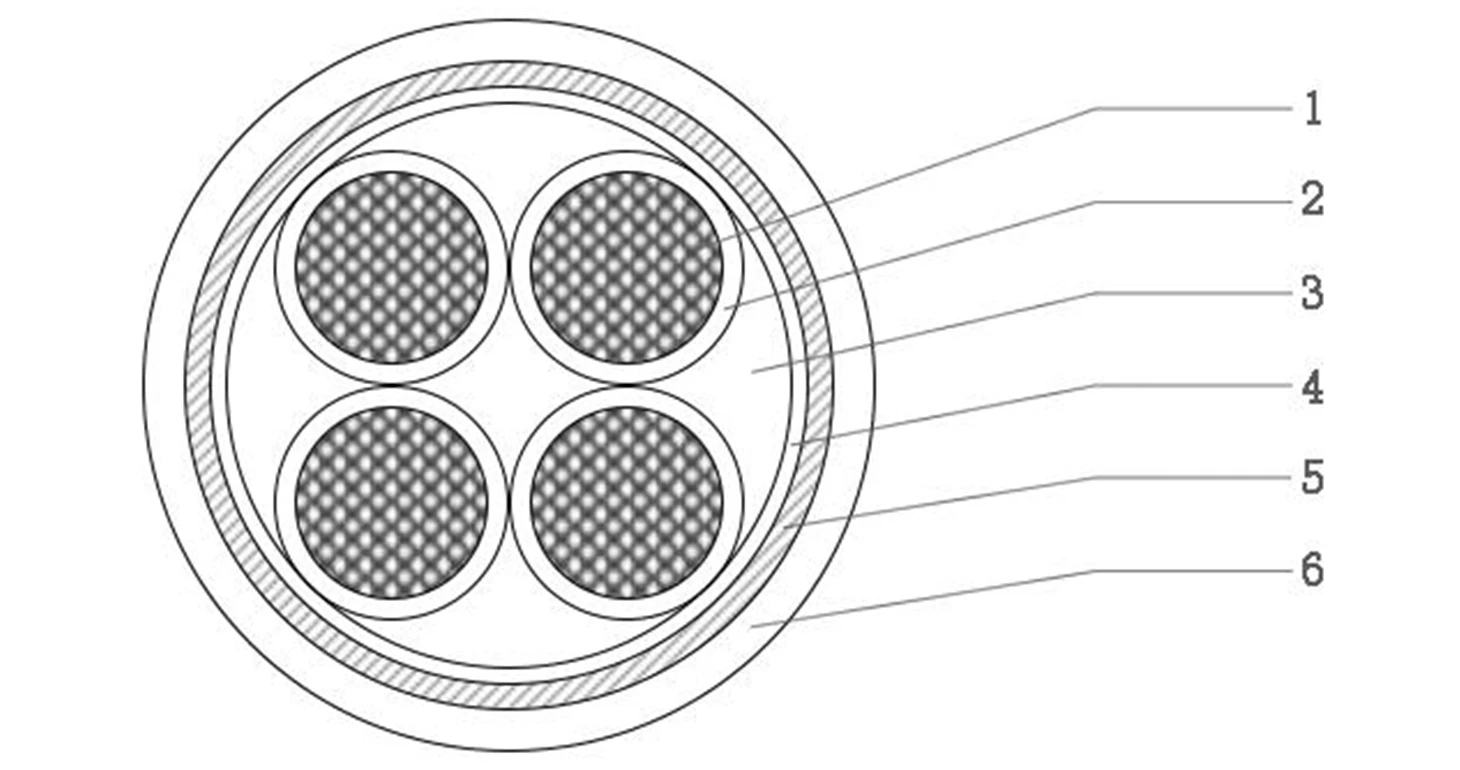

BTTRZ YTTW

1. Conductor: annealed oxygen-free pure copper (one type of conductor, two types of conductor)

2. Fireproof material: mica tape

3. Filling: glass wire filling

4. Winding: polyester film

5. Metal sheath: annealed copper

6. Sheath: PO Color: Orange



FAQ



Q: What is the advantage of this cable?

A: Completely fireproof; high working temperature; strong overload protection; long service life; laying flexibility; anti-corrosion.

Q: What is the applicable place for this cable?

A: Fireproof wire is widely used in nuclear power plants, metallurgy, chemical industry, mines, kilns and other dangerous, harsh, high-temperature environment. In recent years, it is also more often used in high-rise buildings, airports, wharves, underground railroads and other places to protect the fire pumps, fire elevators, local lighting, emergency evacuation instructions, security monitoring, anti-smoke systems and self-supply power supply and other fire-fighting power and important equipment uninterrupted operation.
