Fireproof Cables Supplier
Fire resistant and flame retardant cables are made of inorganic materials, and the insulator magnesium oxide does not produce open flames when overloaded or short-circuited, so lines made of mineral insulated cables will not lead to fires.
YTTW 0.6/1KV
Basic Info.
|
Voltage level： |
0.6/1 KV |
|||
|
Implementation standard: |
Q/CQHQ 09-2022 |
|||
|
Fire Resistance Properties: |
A class in the flame temperature of 950 ℃ in the combustion phase and phase and the outer sheath between the application of 750V voltage, after 90min insulation is not damaged Class B in the flame temperature of 750 ℃ -800 ℃ in the combustion phase-to-phase and phase and the outer sheath between the application of 750V voltage, after 90min insulation is not damaged |
|||
|
Minimum cable bending radius (D is the cable diameter, unit: mm) |
D≤12 |
12＜D≤20 |
20＜D≤40 |
D＞40 |
|
12D |
20D |
30D |
40D |
|

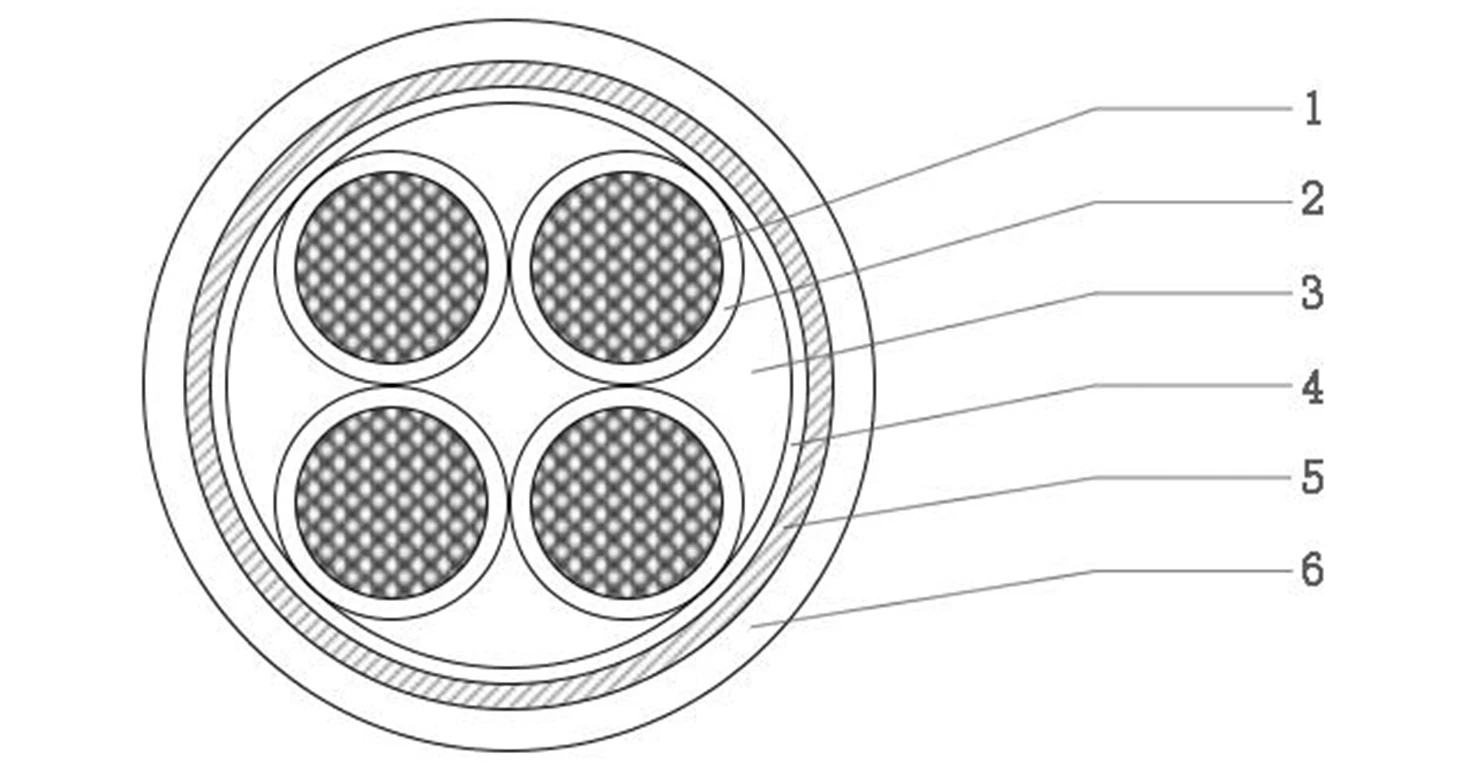

Specification
1. Conductor: annealed oxygen-free pure copper (one type of conductor, two types of conductor)
2. Fireproof material: mica tape
3. Filling: glass wire filling
4. Winding: polyester film
5. Metal sheath: annealed copper
6. Sheath: PO Color: Orange
FAQ
