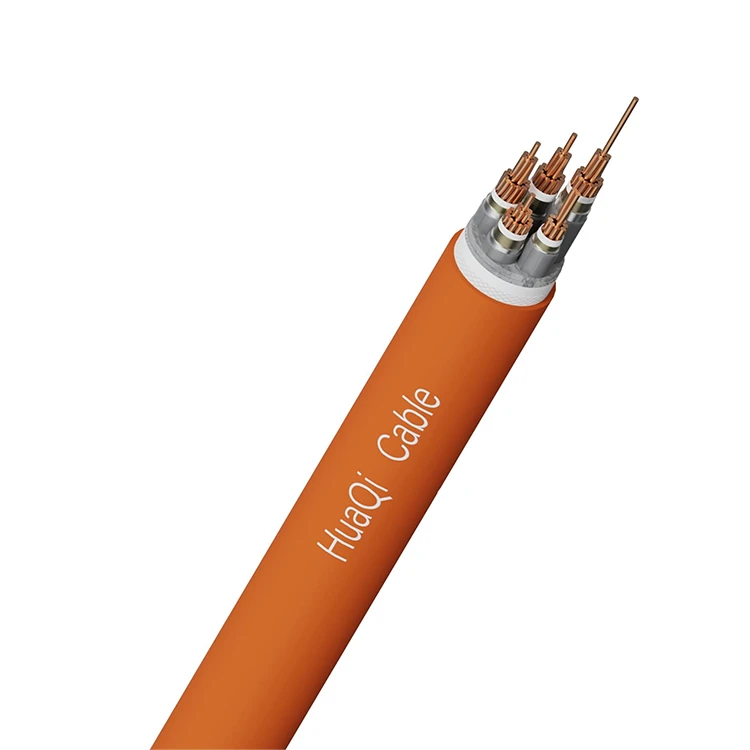

Fire Resistant Flexible Cable

Product Introduction:

Fire resistant flexible cables are made of inorganic materials, and the insulator magnesium oxide does not produce open flames when overloaded or short-circuited, so lines made of mineral insulated cables will not lead to fires.

Send Inquiry

Description

Technical Parameters

Fireproof Cables Supplier

NGA 0.6/1KV

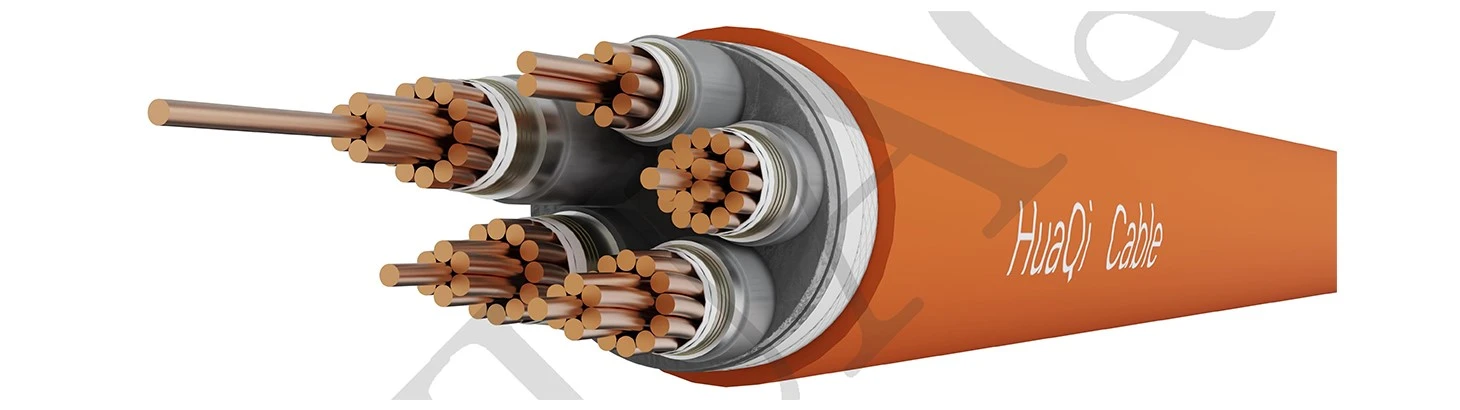

NG-ABTLY1

Basic Info.

Voltage level：	0.6/1 KV
Implementation standard:	Q/CQHQ 08-2022
Fire Resistance Properties:	1.950 ℃ flame continues to be energized for 180min without breakdown 2.650 ℃ flame after 15min to withstand 15min of water spray does not breakdown 3.950 ℃ flame to withstand 15min of knocking vibration and not breakdown
Minimum cable bending radius (D is the cable diameter, unit: mm)	D≤12	12＜D≤20	20＜D≤40	D＞40
	12D	20D	30D	40D

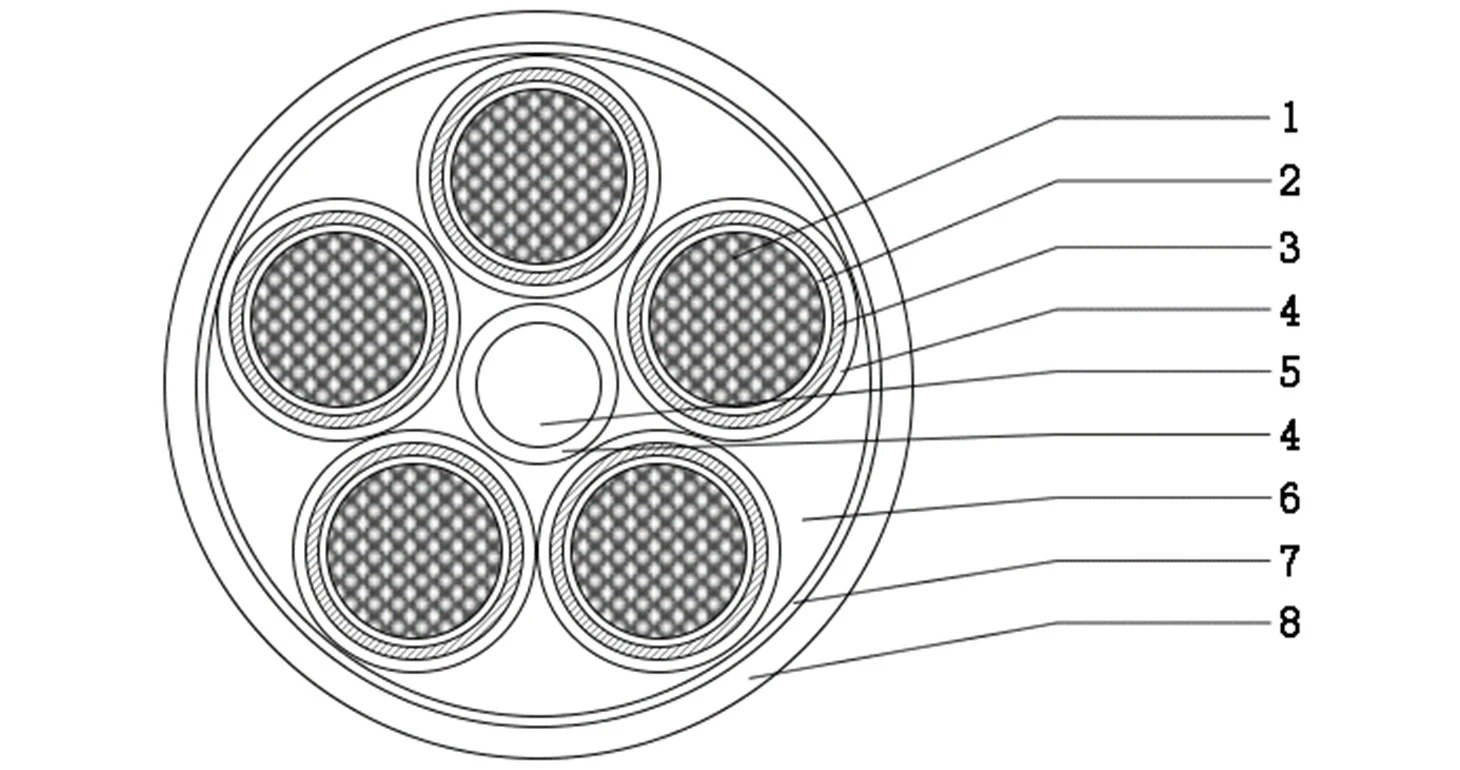

Specification

1. Conductor: annealed round copper wire

2. Fireproof material: mica tape, fireproof mud

3. Metal sheath: annealed aluminum

4. Insulation: PE

5. Filling: glass wire filling

6. Fireproof mud

7.Tape: flame retardant tape

8. Sheath: orange polyolefin sheath

FAQ

Q: Could you tell me the advantage of this cable compared to BTTZ?

A: Fire resistant flexible cable is a new generation of mineral insulated cable developed on the basis of BTTZ cable, which overcomes the problems and defects of BTTZ cable in addition to the advantages of BTTZ cable. And because the production length is not limited, no intermediate joints are required. It saves 10-15% of investment cost than BTTZ cable.
