High Voltage Flat Cable

High Voltage Flat Cable
Product Introduction:
Smaller bending radius than round cables, saving installation space. Multiple cables can be overlapped and bundled.
Send Inquiry
Description
Technical Parameters
Elevator Cables Supplier



Smaller bending radius than round cables, saving installation space. Multiple cables can be overlapped and bundled.



YVFB

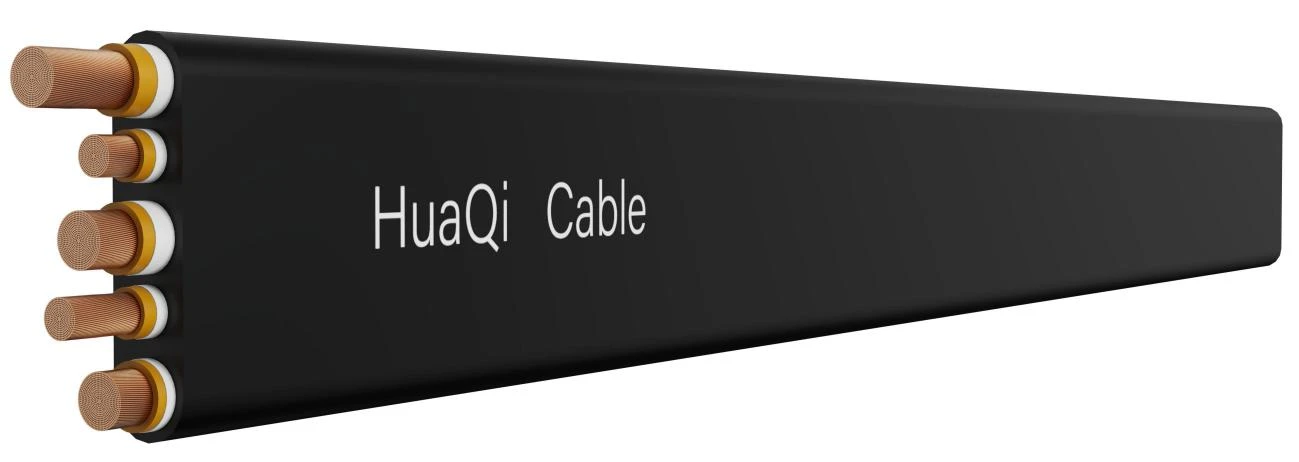

product-1299-462



Basic Info.



Cores Arrange：

Parallel or Plum Shape

Maximum operating temperature:

180℃

Minimum operating temperature:

-40°C (installation temperature must not fall below -25°C)

Laying environment

high voltage flat cable has the characteristics of cold-resistant, soft, wear-resistant, oil-proof, etc. It is suitable for AC rated voltage 0.6/1KV and below with cold-resistant, oil-proof and other special requirements of the traveling crane, cart, transmission machinery and other mobile appliances with power transmission lines and control, lighting, communication lines.

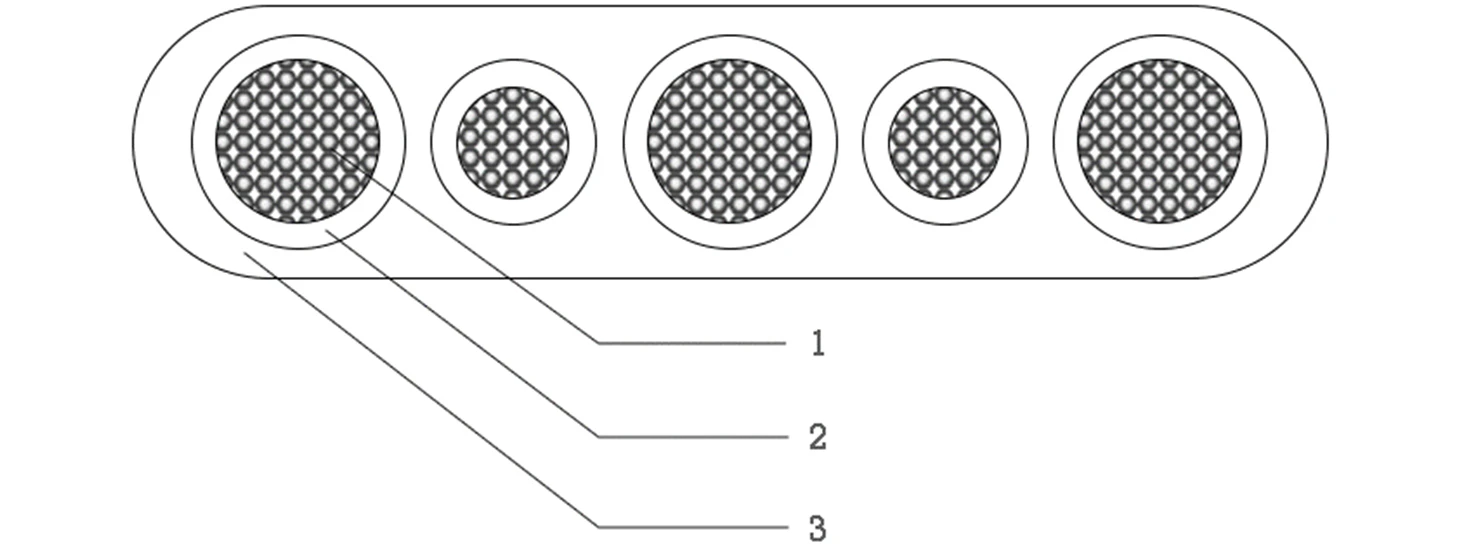

Specification



YVFB

1. Conductor: Oxygen-free pure copper bundled soft conductor (Category 5 conductor)

2. Insulation: NBR

3. Sheath: NBR



FAQ



Q: What does the YVFB mean?

A: Y for mobile cable, V for insulation material: polyvinyl chloride (PVC), F for sheath material: nitrile, B for flat cable

Q: Could you tell me more details about the technical parameters?

A: 1, The insulation resistance of high voltage flat cable is converted to a length of 1km, the temperature is +20 ℃, the power core should not be less than 30MQ/km.

2, The voltage test of the finished cable, between the power core should be able to withstand 50Hz, 2500V voltage test 5min, between the control core should be able to withstand AC 50Hz, 1500V voltage test.

3, The delivery length of the finished cable should not be less than 150m, allowing the delivery of short sections of cable with a length of not less than 35m, whose delivery quantity should not exceed 10% of the total delivery length, according to the agreement between the user and the manufacturer, the delivery of cables of any length is allowed.

If you want to acquire more technical supports,please contact us~
