Description

Technical Parameters

House Wire Supplier

Twin twisted pair cable has good flexibility, suitable for the need to bend wiring or installation occasions; for general low-power indoor electrical equipment, lighting and control circuit connections; due to the high flexibility, twin twisted pair cable is easier to install and wiring.

Basic Info.

Voltage level：	0.3/0.3KV
Implementation standard:	JB/T8734.3-2012
Maximum operating temperature:	70℃
Minimum operating temperature:	-15℃
Minimum bending radius for installation D is the outer diameter of the cable	15D
Laying environment	Suitable for use in automatic fire alarm systems, household appliances, small power tools, connecting audio equipment and other roles

Specification

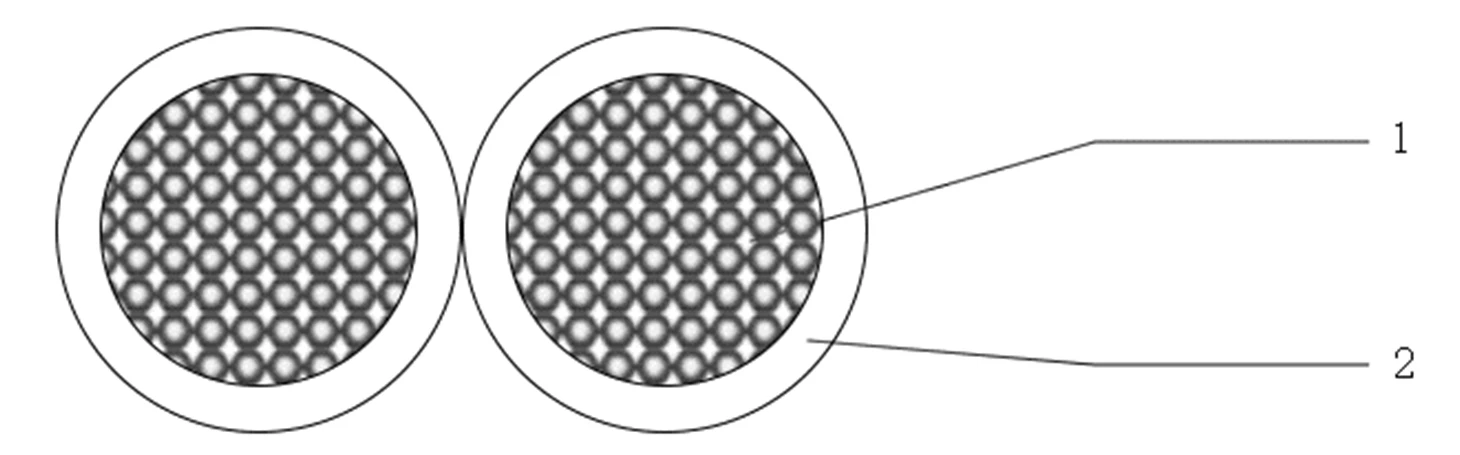

1. Conductor: Oxygen-free pure copper bundled soft conductor (Category 5 conductor)

2. Insulation: PVC two-color

FAQ

Q: What does the RVS mean?

A: The letter S stands for twisted pair The letter R stands for flexible wire The letter V stands for polyvinyl chloride.

Q: What is the main field of twin twisted pair cable?

A: 1. Mostly used for detector lines of fire automatic fire alarm system.

2. Suitable for household appliances, small electric tools, instruments and power lighting wires. Double white core is used to connect directly to the lamp head line; red and blue core is used for fire, alarm, etc.; red and white core is used for broadcasting and telephone lines; red and black core is used for broadcasting lines.

3. It is used to connect the amplifier with audio equipment and broadcasting system to transmit the audio signal amplified by the amplifier.
