BV cable offers reliable performance thanks to its superior insulation and resistance to acids, alkalis, oil, moisture, and fire. The cable's inherent stability, combined with an uncomplicated manufacturing process, results in a product that is both dependable and economically priced.

Basic Info.

Voltage level：	450/750V
Implementation standard:	GB/T5023.3-2008
Maximum conductor temperature:	70℃
Laying environment	Power devices, fixed wiring, daily appliances, meters, lighting fixtures and telecommunication equipment with AC voltage 450/750V and below

Specification

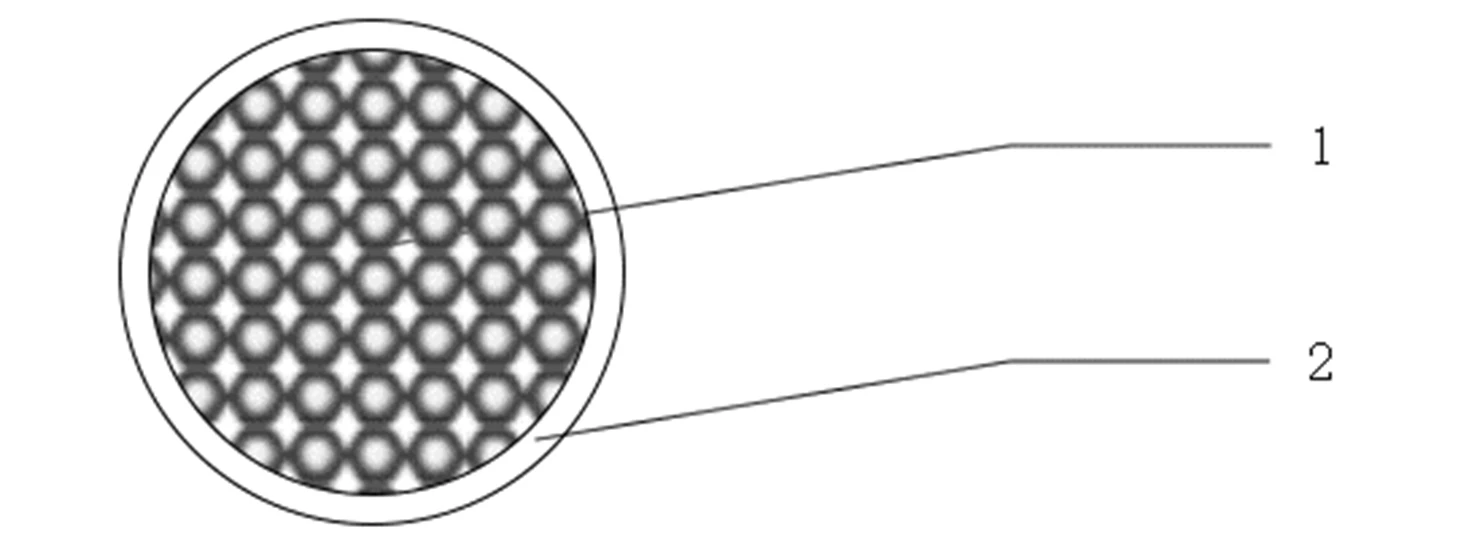

1. Conductor: Oxygen-free pure copper single or stranded conductor (one class conductor, two classes of conductors)

2. Insulation: PVC

Color: red, yellow, blue, green, double, black

FAQ

Q: What are the usual specifications about this cable?

A: BV cable is usually used to distinguish the type specification by the cross-sectional area of the metal conductor in the center of the insulation. (For example, 4 square BV wire copper core cross-sectional diameter of 2.25 mm, according to the circular area formula S = π * r * r = 3.976 square millimeters)

Commonly used bv wire models: 0.75 square, 1 square, 1.5 square, 2.5 square, 4 square, 6 square, 10 square, 16 square, 25 square, 35 square, 50 square, 70 square, 95 square, 120 square, 150 square, 185 square, 240 square and so on.

Q: What is the main application of BV cable?

A: General-purpose single-core hard conductor un-sheathed wires, suitable for AC voltage 450/750V and below power devices, daily appliances, instruments and telecommunication equipment with cables and wires.
