Single Core Building Wire has good insulating properties, acid and alkali resistance, flame retardancy, oil resistance and moisture resistance; stable structure, simple manufacturing process and affordable price.
Send Inquiry
Description
Technical Parameters
PVC Insulated Flat Cable
Known for its strong insulating capabilities, PVC Insulated Flat Cable resists acids, alkalis, flames, oils, and moisture. Its robust structure, straightforward production, and cost-effectiveness make it a practical choice.
Basic Info.
Voltage level：
450/750V
Implementation standard:
GB/T5023.3-2008
Maximum conductor temperature:
70℃
Laying environment
Power devices, fixed wiring, daily appliances, meters, lighting fixtures and telecommunication equipment with AC voltage 450/750V and below
BV: Copper-core PVC-insulated wire, is a single core of copper wire, more rigid, also called hard wire.

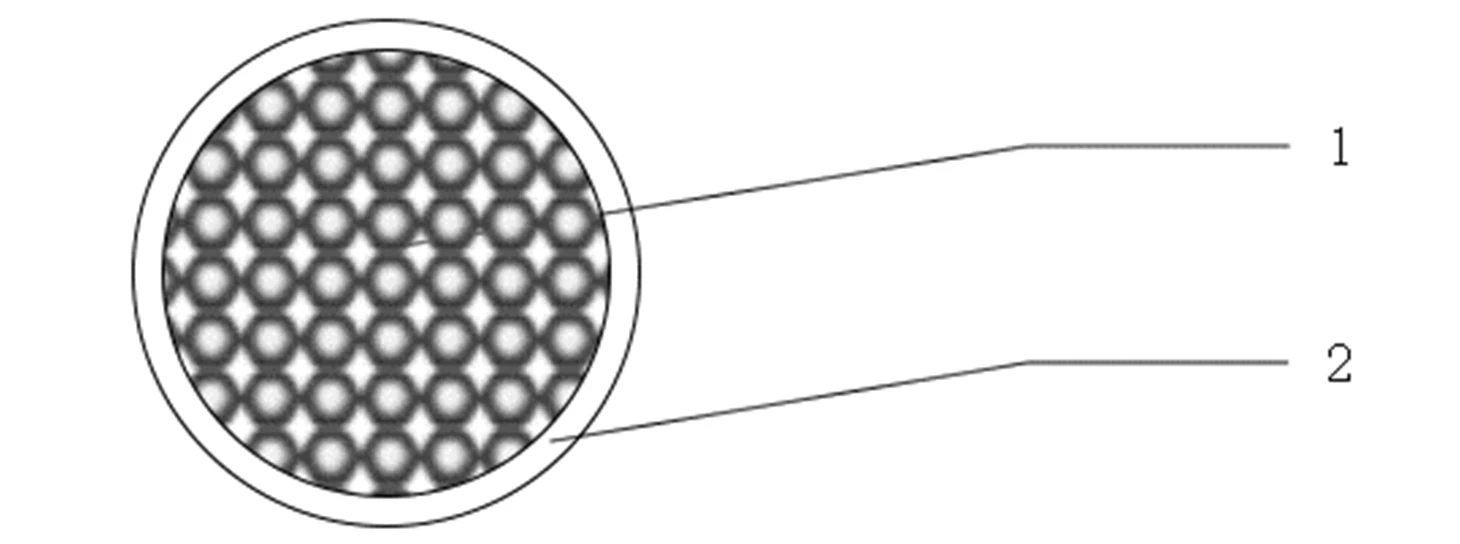

BVR: copper core PVC insulated soft wire, is a single core wire with multiple strands of copper wire twisted together, also called soft wire.
RVV: copper core PVC insulated PVC sheathed soft wire, commonly known as soft sheathed wire, that is, 2, 3 or 4 RV wires sheathed together with a sheath.
Q: What is the application of this cable?
A: Designed for electrical distribution systems, the PVC Insulated Flat Cable (commonly designated as secondary wiring) provides flexible circuit solutions in fixed installation scenarios. This versatile electrical component combines pliable construction with thermal stability, maintaining conductor integrity at operational temperatures reaching 70°C. Engineered for low-voltage applications requiring 450/750V AC capacity, its architectural configuration supports permanent power connections in both residential and commercial environments.
Typical installations encompass residential lighting systems and permanent wiring layouts, with approved deployment methods including surface-mounted applications and conduit routing. The cable's color-coded insulation - available in red, yellow, blue, green, black, white, and dual-tone variants - simplifies circuit identification during installation processes. Featuring a multi-strand BVR conductor configuration, this flexible wiring solution proves particularly effective in dynamic environments where vibration resistance and repeated bending tolerance constitute critical performance requirements.
