LSZH Cables Supplier
Low smoke zero halogen cable not only has good flame retardant properties, but also constitutes a low-smoke halogen-free cable materials do not contain halogen, low corrosion and toxicity of combustion, resulting in a very small amount of smoke, thus reducing the damage to the person, apparatus, equipment, and is conducive to the occurrence of a fire in a timely manner to rescue, have a good flame retardant, corrosion-resistant uniqueness, and a very small concentration of smoke, and other characteristics.

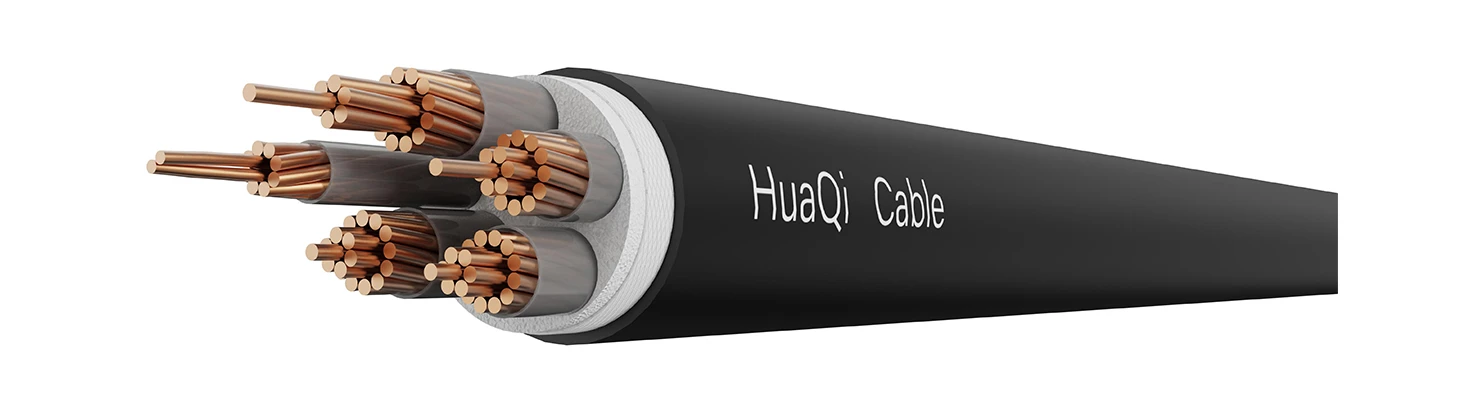

WDZ-YJY 0.6/1 KV
Basic Info.
|
Voltage level： |
0.6/1 KV |
|
|
Implementation standard: |
GB/T12706.1-2020 |
|
|
Maximum conductor temperature: |
90℃ |
|
|
Maximum short-circuit temperature: |
250℃ |
|
|
Minimum operating temperature: |
-15℃ |
|
|
Minimum bending radius of cable during installation (D is the outer diameter of the cable) |
Single core |
Multi-core |
|
Unarmored |
Unarmored |
|
|
20D |
15D |
|

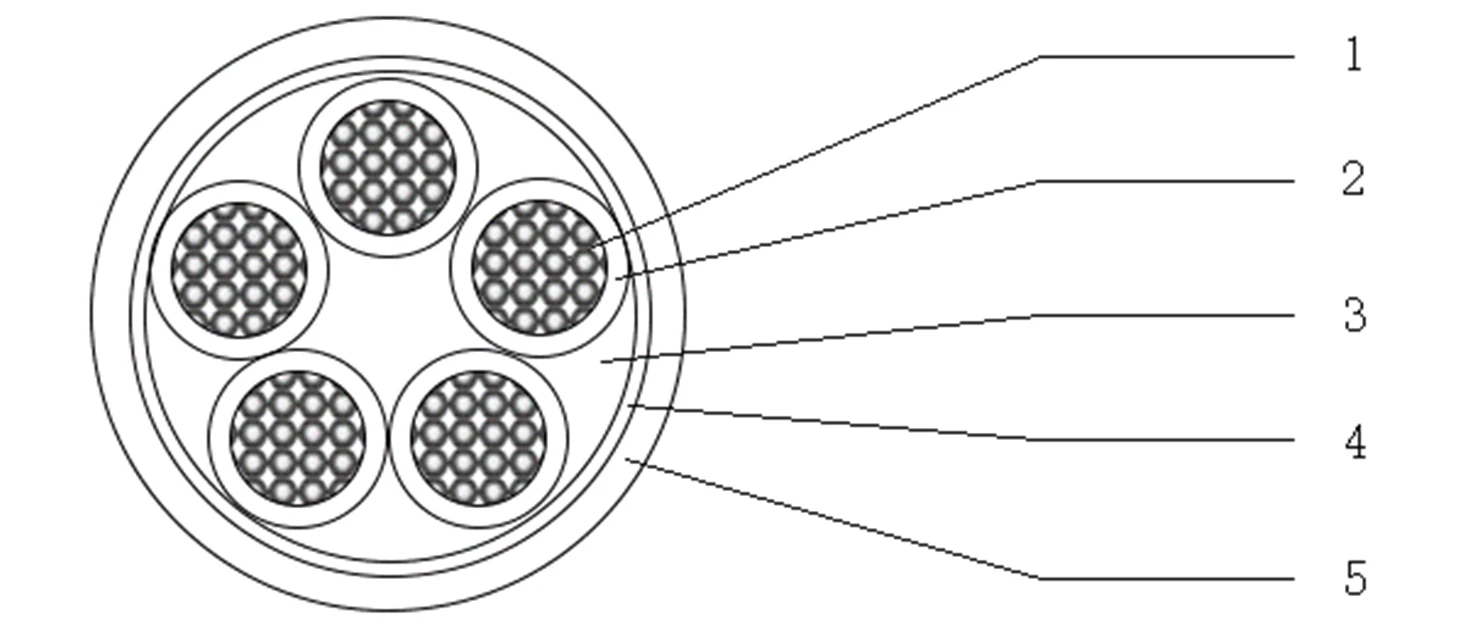

Specification
1. Conductor: Oxygen-free pure copper (Class I conductor, Class II conductor)
2. Insulation: XLPE
Color: 1 core: natural color;
2 core: red, blue;
3 core: yellow, green, red;
4 core: yellow, green, red, blue (zero);
5 core: yellow, green, red, blue (zero) black (zero) 4 +1 black is zero line
3. Filling: flame retardant polypropylene mesh tape filling
4. Tape: flame retardant tape
5. Sheath: PO Color: Black
