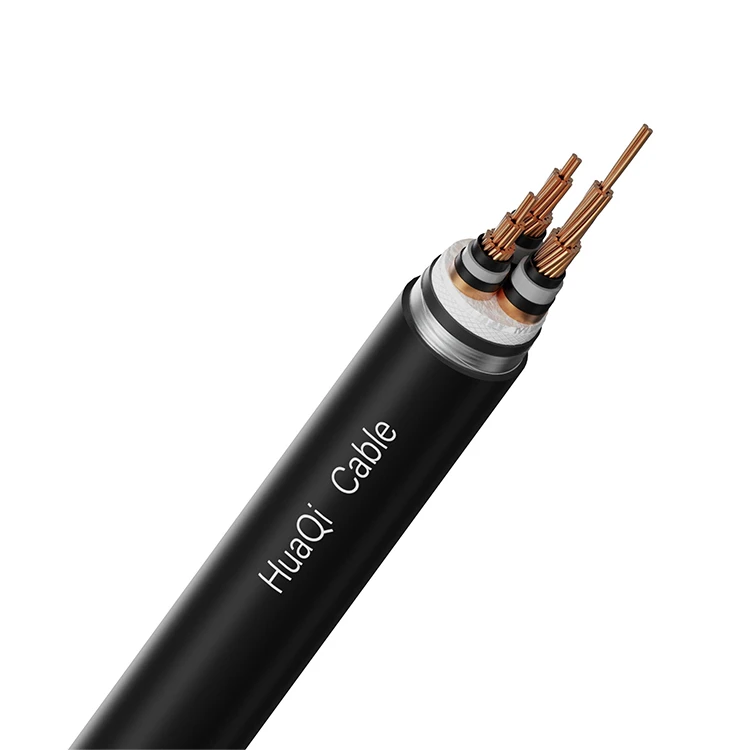

Low Smoke Zero Halogen Wire

Low Smoke Zero Halogen Wire
Product Introduction:
Low smoke zero halogen wire not only has good flame retardant properties, but also constitutes a low-smoke halogen-free cable materials do not contain halogen, corrosion and toxicity of combustion is low, resulting in a very small amount of smoke, thus reducing the damage to the person, equipment, equipment, and is conducive to the occurrence of a fire in a timely manner when the rescue, good flame retardant, corrosion-resistant uniqueness, a very small amount of smoke concentration and so on.
Send Inquiry
Description
Technical Parameters
High Voltage Cables Supplier



Low smoke zero halogen wire not only has good flame retardant properties, but also constitutes a low-smoke halogen-free cable materials do not contain halogen, corrosion and toxicity of combustion is low, resulting in a very small amount of smoke, thus reducing the damage to the person, equipment, equipment, and is conducive to the occurrence of a fire in a timely manner when the rescue, good flame retardant, corrosion-resistant uniqueness, a very small amount of smoke concentration and so on.



WDZ-YJY23 26/35KV

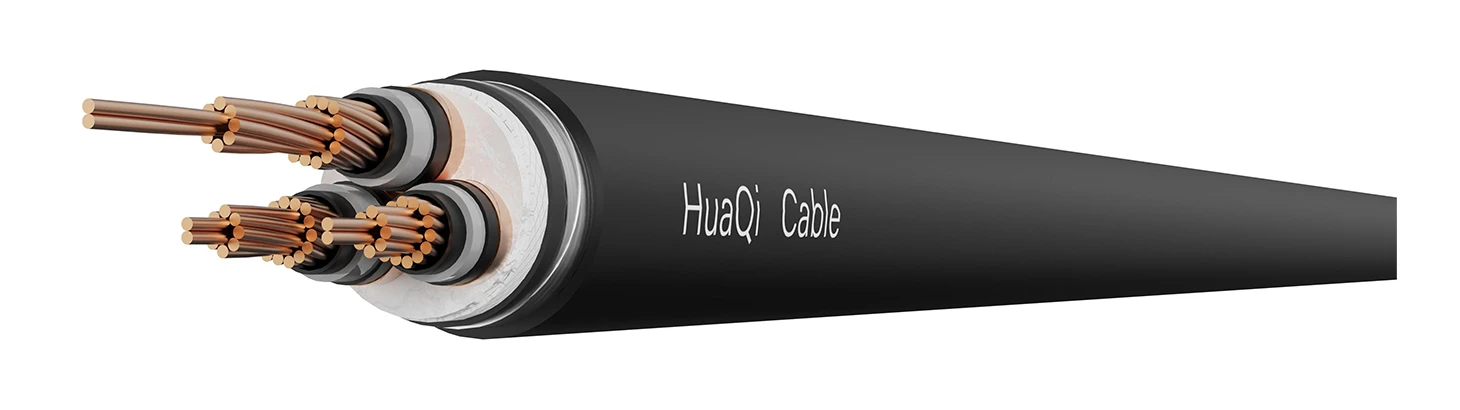

WDZ-YJY23 26



Basic Info.



Voltage level：

26/35 KV

Implementation standard:

GB/T12706.2-2020

Maximum conductor temperature:

90℃

Maximum short-circuit temperature:

250℃

Minimum operating temperature:

-15℃

Minimum bending radius of cable during installation

(D is the outer diameter of the cable)

Single core

Multi-core

armored

armored

15D

12D

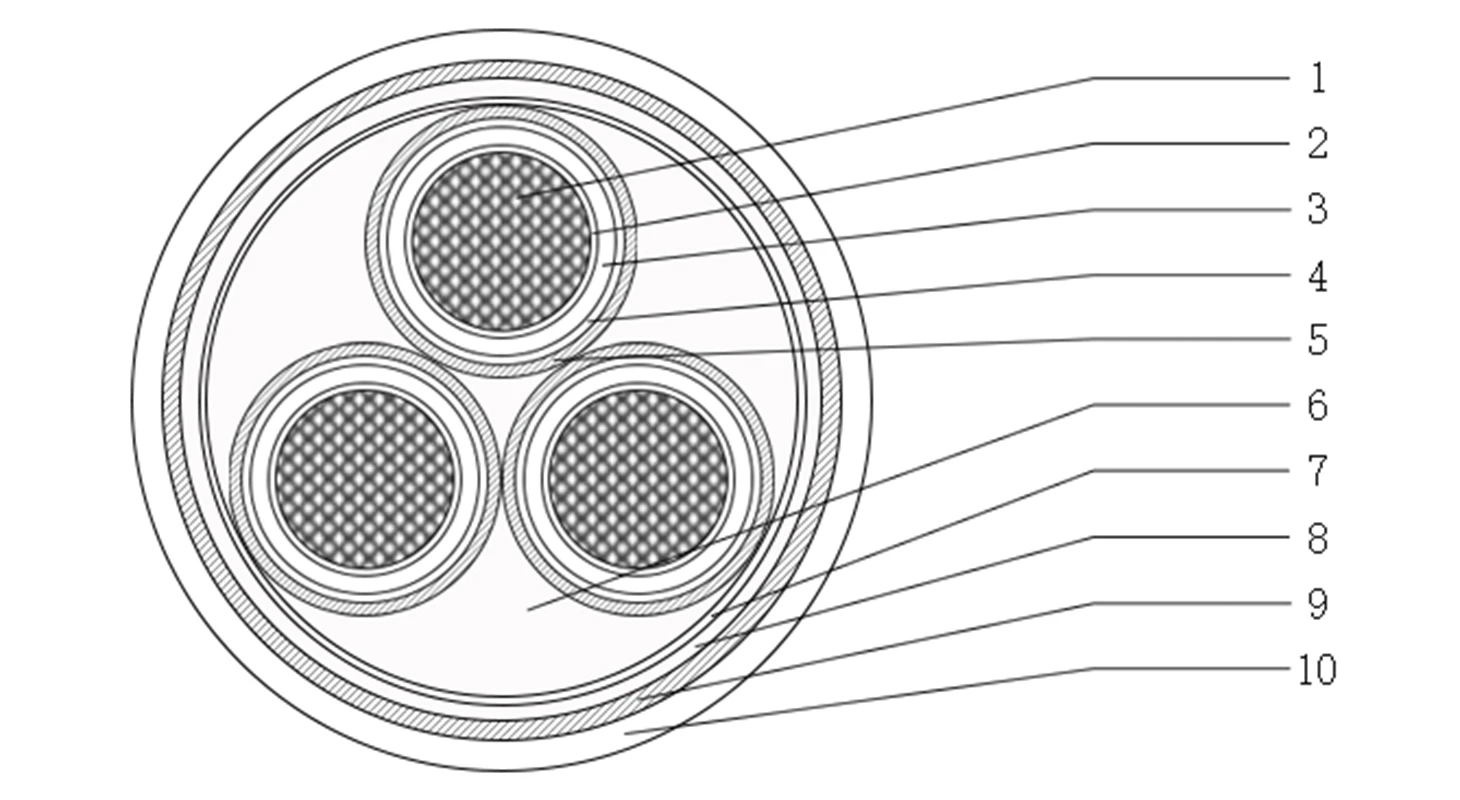

Specification



WDZ-YJY23

1. Conductor: Oxygen-free pure copper (Class I conductor, Class II conductor)

2. Conductor shielding: semi-conductive shielding material

3. Insulation: XLPE

    Color: 1 core: natural color;

    3 core: yellow, green, red;

4. Insulation shielding: semi-conductive shielding material

5. Shield: copper tape

6. Filling: medium pressure filling rope

7. Wrapping: non-woven fabric

8. Lining layer: PO

9. Armor: galvanized steel tape

10 Sheath: PO Color: black



FAQ



Q: What is the specialty of this cable?

A: Low smoke zero halogen wire is widely used in places with high requirements for personnel safety and environment due to their safety features in fire scenarios. The following is a detailed description of its core features and advantages:

  • Halogen-free formulation: the insulation and sheath materials are free of halogens (chlorine, bromine, etc.) and do not release toxic/corrosive gases such as hydrogen chloride, hydrogen bromide, etc., during combustion (acid gas content <0.1% according to IEC 60754-1).
  • Low smoke density: ≥60% light transmission of burning smoke (ISO 5659-2 test), significantly better than traditional PVC cables (light transmission is usually <20%), to ensure the visibility of escape routes in case of fire.
