EPDM welding cables have excellent electrical insulation properties, chemical stability, especially with other wires and cables can not be compared to the flexibility and better physical properties and is widely used.

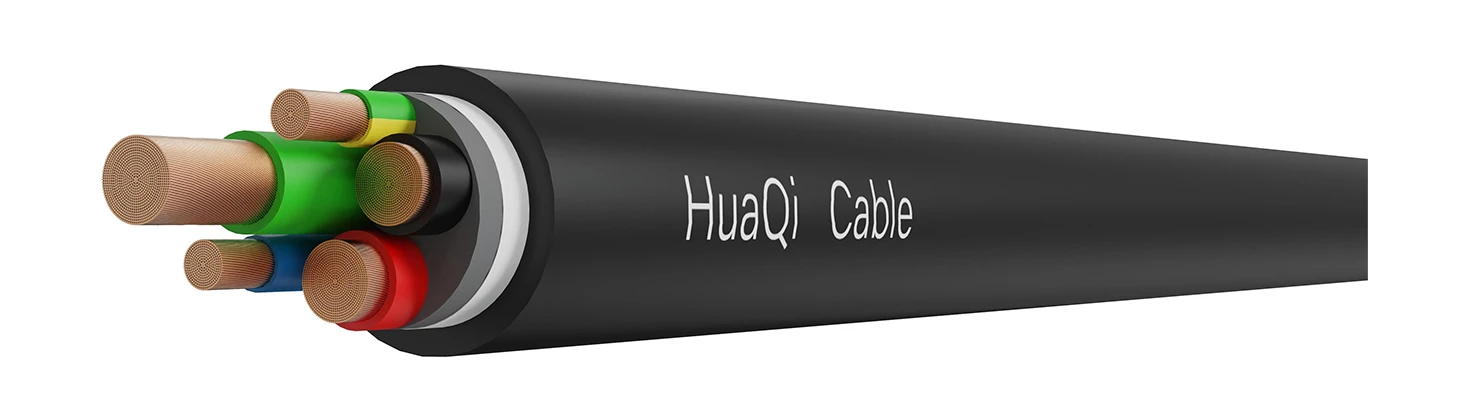

YC 0.45/0.75KV
Basic Info.
|
Voltage level： |
8.7/15KV |
|
Implementation standard: |
JB/T8735-2016 |
|
Maximum operating temperature: |
60℃ |
|
Minimum operating temperature: |
-15℃ |
|
Minimum bending radius for installation D is the outer diameter of the cable |
15D |
|
Laying environment |
Used for outdoor large-scale mobile electrical equipment and tools connected to withstand large mechanical external force occasions. Most of them are used in the occasions of moving or severe working conditions, such as ships, mines, underground, rolling stock and so on. |

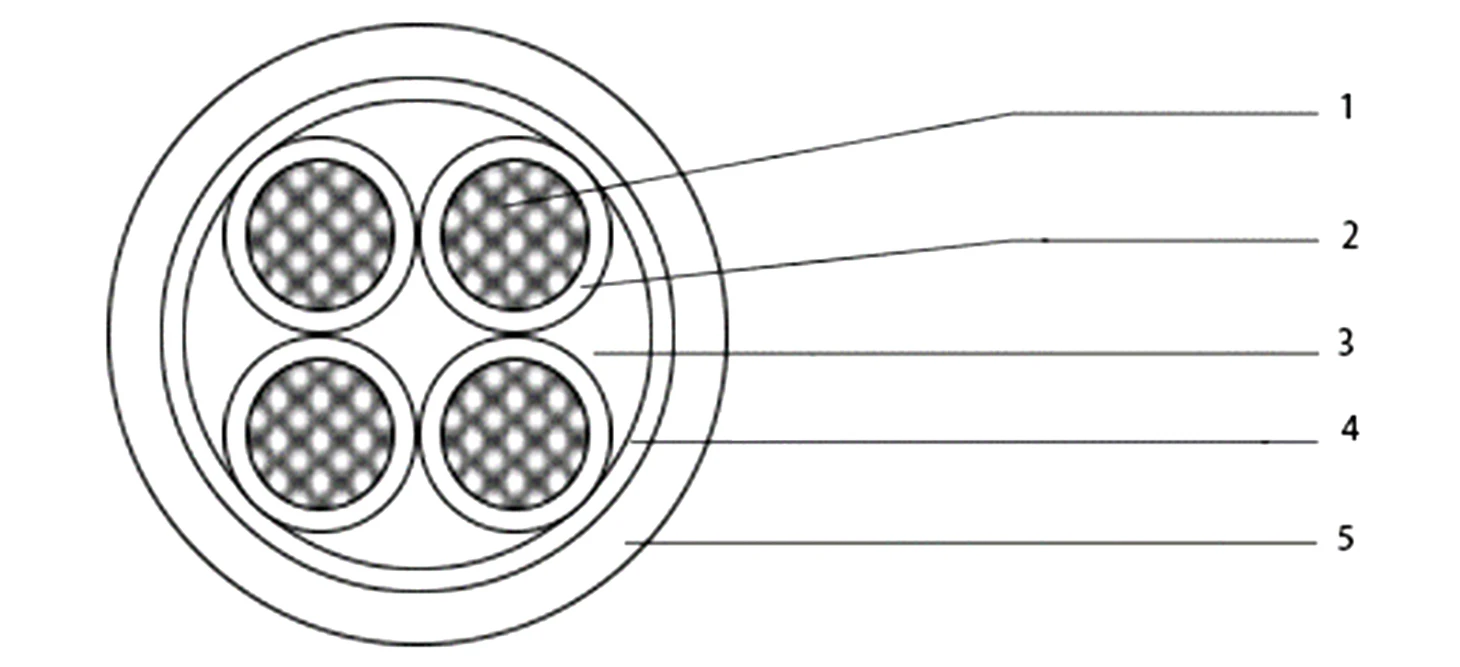

Specification
1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)
2. Insulation: EPDM
3. Filling: rubber strip or fiber rope filling
4. Wrap: non-woven fabric
5. Sheath: EPDM
FAQ
Q: What is the difference between EPDM Welding Cable and other cables?
A: 1.Flexibility: softer than ordinary power cables, adapting to frequent movement.
2.Weather resistance: better than PVC cable, suitable for outdoor and oil pollution environment.
3.Instantaneous load: specially designed for welding machine pulse current, ordinary cable is easy to aging.
