Rubber Welding Cable have plenty of features:

High Current Carrying Capacity: Supports hundreds of amps of instantaneous current (e.g. up to 300A for 2/0 AWG cable).
Ultra-flexible: Easy to maneuver in confined spaces and reduces operator fatigue.
High Temperature Resistance: Insulation can withstand welding slag spatter or high temperature environments for short periods of time.
Durability: crush and oil resistant, suitable for harsh environments such as construction sites.

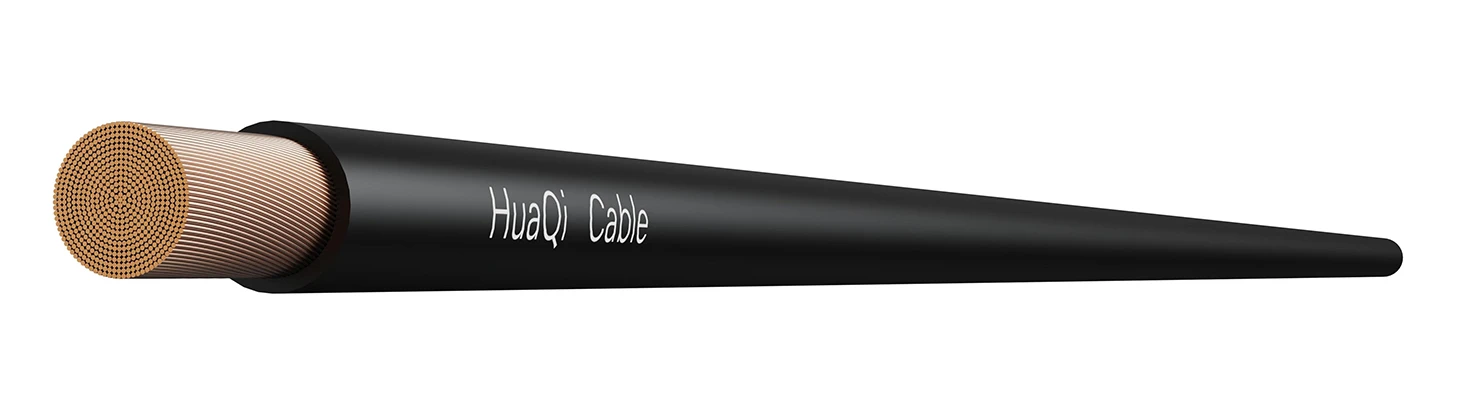

YH 0.45/0.75KV

Basic Info.

Voltage level：	This cable is exclusively used for welding, so the rated voltage is not specified.
Implementation standard:	JB/T8735-2016
Maximum operating temperature:	65℃
Minimum operating temperature:	-15℃
Minimum bending radius for installation D is the outer diameter of the cable	15D
Laying environment	1. YH cable is working under the condition of voltage 450/750V high current, which requires a certain degree of resistance. 2. The long-term allowable working temperature of the welding handle cable should not exceed 65℃. 3. The motor lead cable is frequently moved, twisted and cast, which requires softness and good bending performance. 4. In the application of easy to be sharp steel components of the scraping, rubbing, so the requirements of the cable insulation tear-resistant, wear-resistant and other mechanical properties of good

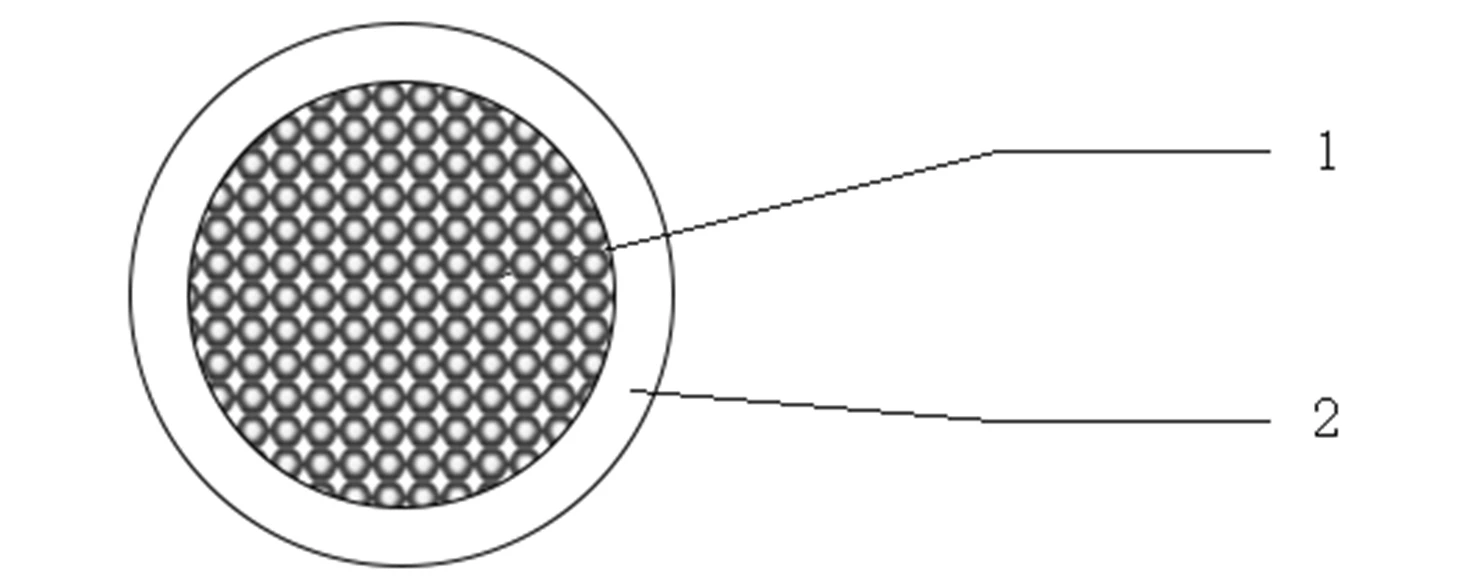

Specification

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Covering layer (insulation, sheath): EPDM

FAQ

Q: What is the feature of Rubber Welding Cable?

A: 1. Rubber welding cable is in the low-voltage (voltage of 200V) high-current conditions require a certain degree of resistance to work.

2. Welding handle cable long-term allowable operating temperature should not exceed 65 ℃.

3. Motor lead wires cables are frequently moved, twisted and sizing requirements for soft bending performance.

4. In the application of easy to be sharp steel components of the scraping, rubbing, so the requirements of the cable insulation tear-resistant, wear-resistant and other mechanical properties.

Q: What is the points for use and maintenance of Rubber Welding Cable?

Avoid excessive bending: the minimum bending radius is recommended to be 5 times the outer diameter of the cable.
Regular inspection: Observe cracked insulation and exposed conductors to prevent short circuit.
Correct selection: Select the wire diameter according to the maximum output current of the welding machine (reserve 20% margin).
Firm connection: Use copper terminal crimping to avoid loosening and heating.
Storage environment: dry and away from light, coiled into coils with a diameter of 30cm or more to prevent deformation.
