Designed for low-voltage AC applications (≤450/750V), silicone rubber wires facilitate both permanent installations and dynamic interconnection in measurement/control systems. The cross-linked silicone matrix demonstrates exceptional dielectric integrity across extreme operational parameters (-60°C to +200°C) while resisting chemical degradation from hydrocarbons and acidic vapors.
Basic Info.
|
Voltage level： |
0.45/0.75KV |
|
Maximum operating temperature: |
180℃ |
|
Minimum operating temperature: |
-20℃ |
|
Minimum bending radius for installation D is the outer diameter of the cable |
15D |
|
Laying environment |
Can be used in a long-term humid environment, with superior electrical performance and waterproof and moldproof performance. Excellent bending performance, can be used in mobile. Used in AC rated voltage 450/750V and below various mobile motors, steel, aviation, power plants, petrochemical and other high-temperature environment. |

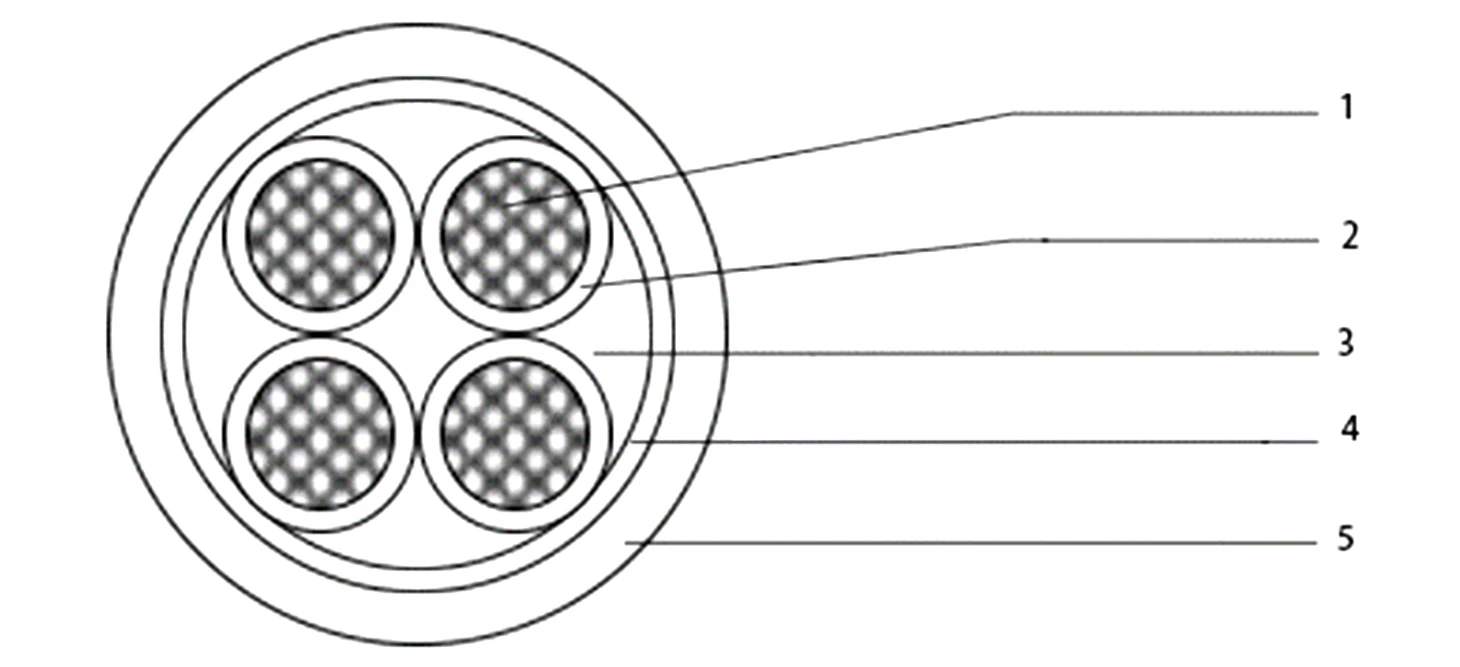

Specification
1. Conductor: Oxygen-free pure copper bundled soft conductor (Category 5 conductor)
2. Insulation: silicone rubber insulation
3. Filling: rubber strip or fiber rope filling
4. Wrapping: non-woven fabric for cable wrapping
5. Sheath: silicone rubber sheath
Key Performance Attributes
- Dynamic Thermal Endurance
Maintains ≤0.5Ω/km resistance variance during thermal cycling (IEC 60811-202 compliant)
Preserves 85% initial flexibility after 1,000h @ 200°C aging
- Chemical Resilience
Withstands IP69K-rated washdown conditions
≤15% volume swell in ASTM #3 oil immersion tests
- Mechanical Compliance
30,000+ flex cycles @ 180° bend radius (UL 758 verified)
500% elongation capacity without conductor fracture
