Silicone Rubber Cables Supplier

Heat Resistant Silicone Flexible Cable is suitable for AC rated voltage 450/750V and below mobile or fixed laying with electrical instrumentation connecting line or signal transmission, the cable has good thermal stability, can maintain good electrical properties and flexibility in high temperature, low temperature, corrosive, suitable for metallurgy, electric power, petrochemical and other industries with special requirements for mobile temperature occasions.

Basic Info.

Voltage level：	0.45/0.75KV
Maximum operating temperature:	180℃
Minimum operating temperature:	-20℃
Minimum bending radius for installation D is the outer diameter of the cable	15D
Laying environment	Can be used in a long-term humid environment, with superior electrical performance and waterproof and moldproof performance. Excellent bending performance, can be used in mobile. Used in AC rated voltage 450/750V and below various mobile motors, steel, aviation, power plants, petrochemical and other high-temperature environment.

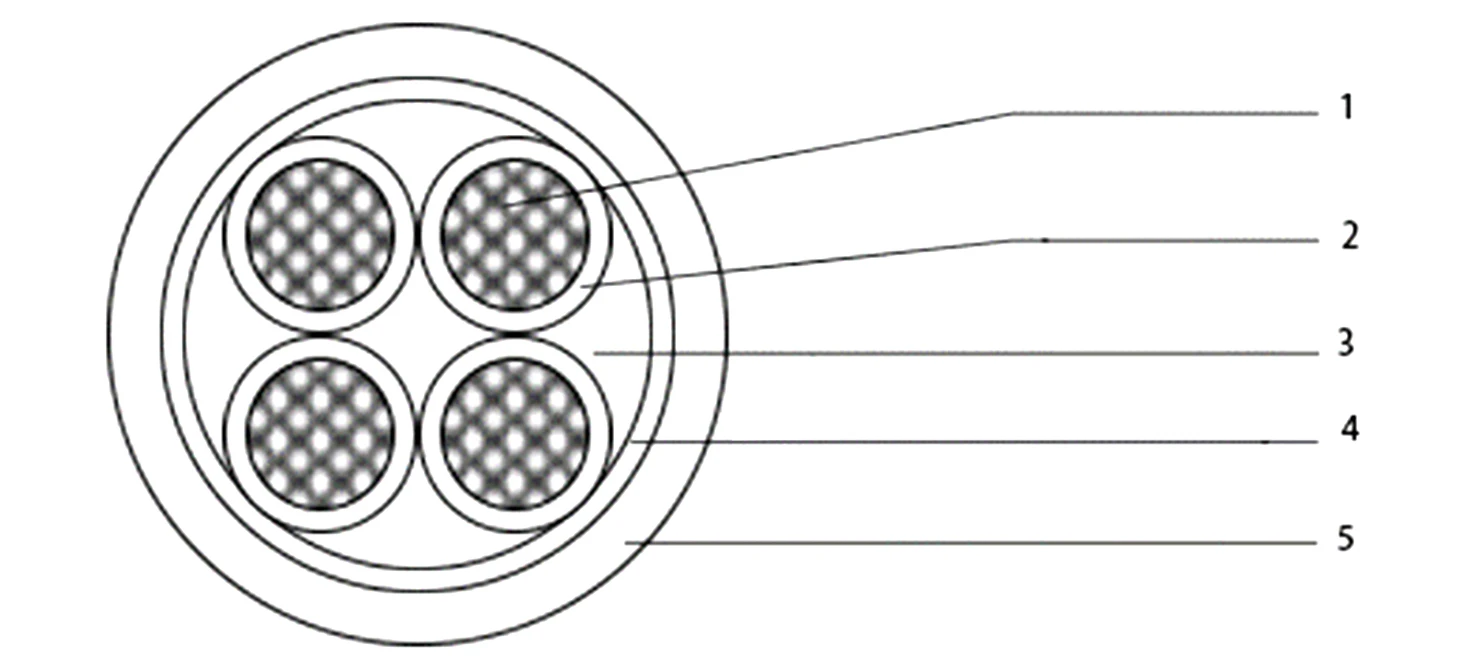

Specification

1. Conductor: Oxygen-free pure copper bundled soft conductor (Category 5 conductor)

2. Insulation: silicone rubber insulation

3. Filling: rubber strip or fiber rope filling

4. Wrapping: non-woven fabric for cable wrapping

5. Sheath: silicone rubber sheath

Manufacturing Applications

Manufacturing Applications:

Primary jacketing matrices for:
• Subsea umbilicals (API 17E compliant)
• Radiation-hardened medical imaging cabling
• Cryogenic superconducting magnet leads

Interstitial fillers in:
• Fire survival circuits (BS 6387 CWZ grade)
• Aerospace EWIS bundles (AS50881 qualified)
