Neoprene Welding Cable

Neoprene Welding Cable
Product Introduction:
Neoprene welding cable is flexible, good bending performance; cable insulation tear-resistant, abrasion-resistant and other mechanical properties are good.
Send Inquiry
Description
Technical Parameters
Welding Cables Supplier



Neoprene welding cables are flexible, good bending performance; cable insulation tear-resistant, abrasion-resistant and other mechanical properties are good.Neoprene welding cables are key components used to transmit high currents in welding operations, connecting the welding machine to the welding torch or workpiece.

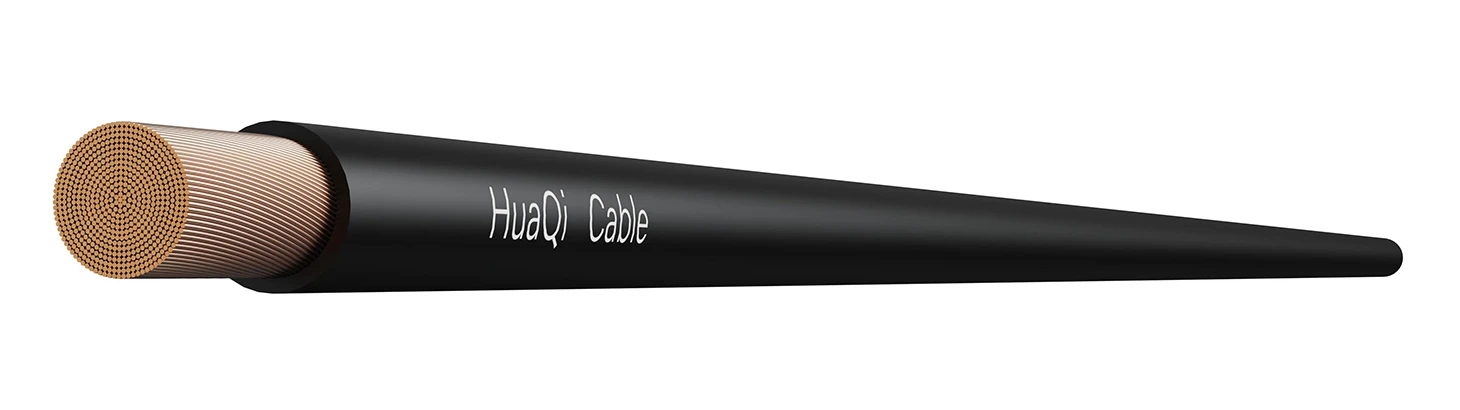

YH 0.45/0.75KV



neoprene welding cable



Basic Info.



Voltage level：

This cable is exclusively used for welding, so the rated voltage is not specified.

Implementation standard:

JB/T8735-2016

Maximum operating temperature:

65℃

Minimum operating temperature:

-15℃

Minimum bending radius for installation

D is the outer diameter of the cable

15D

Laying environment

1. YH cable is working under the condition of voltage 450/750V high current, which requires a certain degree of resistance.

2. The long-term allowable working temperature of the welding handle cable should not exceed 65℃.

3. The motor lead cable is frequently moved, twisted and cast, which requires softness and good bending performance.

4. In the application of easy to be sharp steel components of the scraping, rubbing, so the requirements of the cable insulation tear-resistant, wear-resistant and other mechanical properties of good



Specification

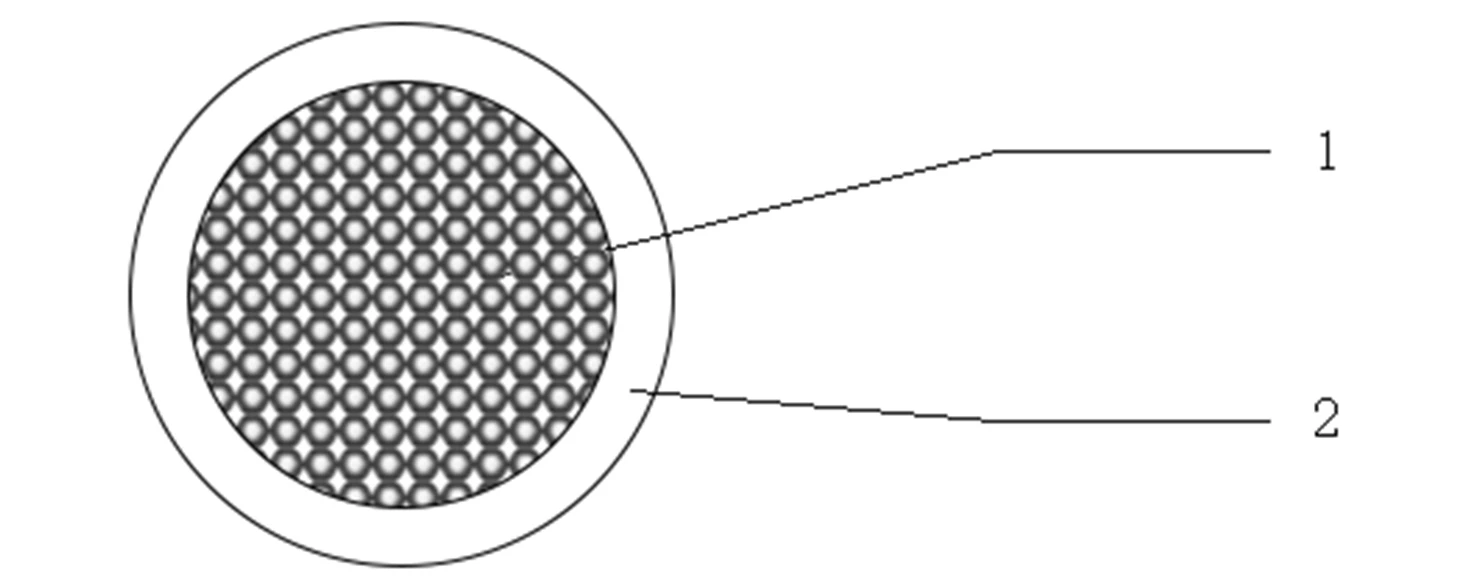

neoprene welding cable structural diagram

1. Conductor: Oxygen-free pure copper bundled soft conductor (Class V conductor)

2. Covering layer (insulation, sheath): EPDM



FAQ



Q: What is the feature of neoprene welding cable?

A: 1, Often move the requirements of the outer diameter is small in the application of the sharp steel components are prone to scraping, rubbing the cable insulation is required to resist tearing, abrasion resistance and other mechanical properties.

2, The use of complex environmental conditions such as sun, boiling, contact with mud, oil, acid and alkali liquids require a certain degree of weather resistance and oil resistance, solvent resistance.

3, Sometimes encounter hot welding requirements for heat deformation of good light weight. Due to the electrical properties of such cables do not require high and complex environmental conditions of use in the structure of the requirements to meet a variety of complex environmental factors is not appropriate. Attention to improve the conditions of use to prevent external damage.
